What the Txdot Roadway Design Manual Actually Is
The Texas Department of Transportation publishes a comprehensive set of design standards that govern how roadway projects are planned and engineered across the state. It is not a single document. It is a living collection of chapters, appendices, and supplementary guides that get updated periodically throughout the year. The manual covers everything from geometric design criteria to drainage standards, signage placement, and traffic control measures. Most people in Texas civil engineering know it as just "the Design Manual." Contractors reference it for plan compliance. Municipal engineers use it when adopting TxDot standards for local roadways that will eventually become part of the state highway system. The documents are freely available on the TxDot website, but finding the exact chapter you need takes some familiarity with how they organize their materials.
Txdot Roadway Design Manual - Where to Get It and How It Is Structured

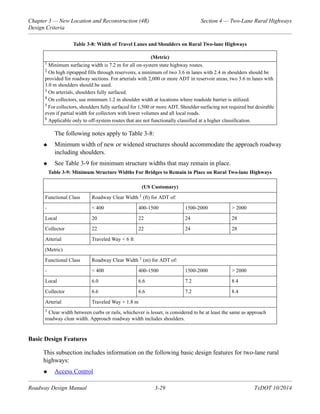

The primary document sits on the TxDot Design Manual page and is divided into volumes. Volume 1 covers general policies and procedures. Volume 2 goes into geometric design. Volume 3 addresses drainage and hydrology. Volume 4 covers traffic operations. Volume 5 deals with signing, marking, and roadside features. There are also standalone chapters on things like accessibility, floodplain management, and construction inspection standards. PDFs are the main format. Each chapter is a separate file. The URLs change occasionally when TxDot reorganizes their site, so bookmarking a direct link is a good idea if you work with this regularly. They also publish a PDF of the full manual compilation every couple of years, but the individual chapter updates come out on their own schedule, so the compiled version goes stale fast. Always check the revision date on whatever chapter you are pulling from.
How It Works in Practice

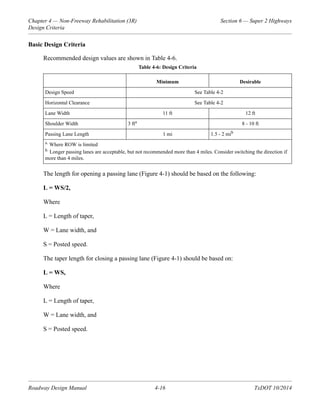

I have spent years pulling from these documents during plan review and design development. The manual is not meant to be read cover to cover. It is a reference. You open it when you need a specific criterion and you close it when you have what you need. The problem is that the criterion you think you need is rarely on the page you land on first. For example, I was working on a four-lane undivided roadway redesign last year and needed to determine the minimum stopping sight distance for a design speed of 45 mph. The table in the geometric design chapter listed 285 feet. That number looked right. But the project had a vertical curve that was shorter than the required stopping sight distance. I went back through the manual looking for the exception clause and found it buried in Appendix B about 40 pages into a section on horizontal alignment. The short version curve exception allowed the designer to use a modified calculation method if certain sight distance verification steps were met. Without that footnote, the entire design would have been non-compliant and the plans would have been rejected during review. That is exactly the kind of detail that slows down a project if you miss it the first time. Another thing nobody tells you about this manual is that the terminology shifts slightly between chapters. One section might say "design speed" while a later chapter switches to "operating speed" without a clear explanation of when each applies. If you are designing a rural two-lane road and the manual references AASHTO Green Book values alongside TxDot-specific adjustments, pay close attention to which standard is controlling. TxDot sometimes overrides AASHTO recommendations with more conservative criteria, especially around shoulder widths and clear zone requirements. The override is not always highlighted prominently.
Get the Full Details
The drainage chapters are another area where people tend to gloss over things. Volume 3 has detailed guidance on culvert sizing, outlet protection, and storm sewer design. But the real trap is in the intersection between Volume 3 and the Local Roads and Streets program. If your project is on a roadway that is being transferred to a municipality after construction, the drainage standards you follow depend on whether TxDot is treating it as a state highway project or a local project under their Local Roads and Streets guidelines. The hydraulic capacity requirements can differ significantly between those two paths. I learned that the hard way on a drainage swap project in South Texas where the county wanted to adopt the road but TxDot had designed the culverts to state highway standards while the municipality expected local road criteria. The conflict sat unresolved for three months because neither side had caught the discrepancy during initial plan preparation.
What the Manual Gets Wrong or Leaves Out

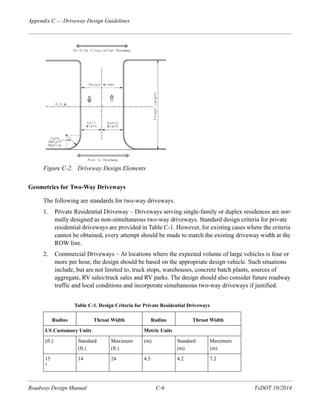

The Txdot Roadway Design Manual is thorough, but it is not exhaustive. It does not cover microsimulation modeling, connected vehicle infrastructure, or autonomous vehicle design considerations. Those topics do not appear anywhere in the current volumes. If you are working on a project that involves intelligent transportation systems or emerging technology corridors, you will need to supplement the manual with other guidance documents or work directly with TxDot's division of traffic operations to figure out what applies. Another limitation is that some of the tables and charts inside the PDFs are not easily selectable or searchable. I have spent time manually scanning through pages looking for a value that should have been findable with a text search. The PDFs are generated scans in several cases rather than native digital text, which makes automated extraction tools unreliable. If you need to pull data into a spreadsheet or a database, plan on doing it by hand or using OCR software that you will then need to verify for accuracy. The manual also does not always reflect the most recent policy directives. TxDot issues internal memoranda and policy letters that modify or supersede certain provisions in the design manual, but those are not always cross-referenced in the PDFs themselves. Before you rely on a criterion for a legally binding design decision, check whether a more recent policy memo has changed it. The revision history at the beginning of each chapter helps, but it is not foolproof. I have caught situations where a chapter listed a 2019 update date but the actual technical change from a 2021 policy letter was still sitting at the older value.
Practical Tips for Using the Manual Efficiently
Download the chapters you actually use rather than relying on the web version. Keeping a local copy of Volume 2 and Volume 3 saves you from loading times and gives you the ability to annotate without affecting the official document. Use a PDF reader that supports layered bookmarks so you can jump between sections quickly. The table of contents in the TxDot PDFs is functional but not always structured the way you would expect. When checking compliance, verify the design speed first. Everything else in the geometric design chapters flows from that single number. Pick the wrong design speed and the rest of your sight distance, curve radius, and lane width calculations will be wrong too. I have seen entire submissions sent back because the designer used 55 mph design speed criteria on a road segment that the project scope documents clearly listed as a 45 mph facility. For signage and marking standards, cross-reference the manual with the latest edition of the Texas Manual on Uniform Traffic Control Devices. The two documents are meant to work together but they are published by different divisions within TxDot and they do not always stay perfectly aligned. If you are designing a new intersection, check both documents before finalizing your sign schedule. A sign that meets TMUTCD requirements but conflicts with a TxDot-specific placement criterion in the design manual will get flagged during plan review.
When in doubt about a gray area, document your reasoning. Write down which chapter and section you consulted, what value you selected, and why. TxDot plan reviewers appreciate it when you show your work. It reduces back-and-forth and speeds up the approval process. Skipping that step because you assume the reviewer already knows where you got the number usually just creates more work for everyone involved.
