Working with USACE Tennessee River Maps: What Actually Happens When You Try to Use Them
The Tennessee River map series from the US Army Corps of Engineers is one of those resources that sounds perfect on paper and then immediately shows you where every crack in the foundation is. I spent three weeks last fall trying to reconcile flood zone designations along the lower Cumberland section of the river for a commercial permitting application, and by the time I finished I understood more about how these maps are made, how they break down, and what you actually do when a client needs answers yesterday. The primary distribution point is the NFHL at fema.gov/flood-maps. But here's the thing most people don't tell you: the Tennessee River data doesn't live in just one place. Flood insurance rate maps for the river system are split across multiple jurisdictions because the river forms state boundaries and flows through counties that participate in the NFIP at different times. You will search for Marion County, Tennessee and find FIRM panel 47095C, then cross-reference that against Hamilton County panels three miles downstream that use a completely different base map projection. For the actual engineering flood profiles and cross-section data, you need to go through the Corps' own data portal. The National Hydrography Dataset can be accessed at nhddata.wim.usace.army.mil. The Tennessee Valley regional office maintains separate datasets for the river's navigation locks and dams, and those are technically separate from the flood risk management maps. I learned this distinction the hard way when a structural engineer on my team pulled lock-and-dam operational data expecting it to overlap with the 100-year floodplain boundaries, and the coordinate systems were off by nearly two hundred feet.
The Download Process Nobody Warns You About
Downloading Shapefiles from the Corps' GEODATA website is straightforward until you actually try to open them. The Tennessee River corridor uses both NAD 83 and older state plane zones depending on which county produced the data. When I downloaded the flood profile reaches for the Wilson to Nickajack stretch, I got three different horizontal datums mixed into a single project folder. Open them in ArcGIS Pro without checking the CRS first and your floodplain overlay sits about sixty centimeters south of where it should be. The workaround I settled on after wasting a full day on this exact problem is to create a script that processes every downloaded dataset through a standardized coordinate transformation to NAD 83 / Tennessee East before adding anything to a project. It takes about forty-five seconds per file instead of the three hours I spent manually reprojecting layers. I also keep a master spreadsheet logging which panel numbers correspond to which county and which datum so I can spot inconsistencies before they become problems.

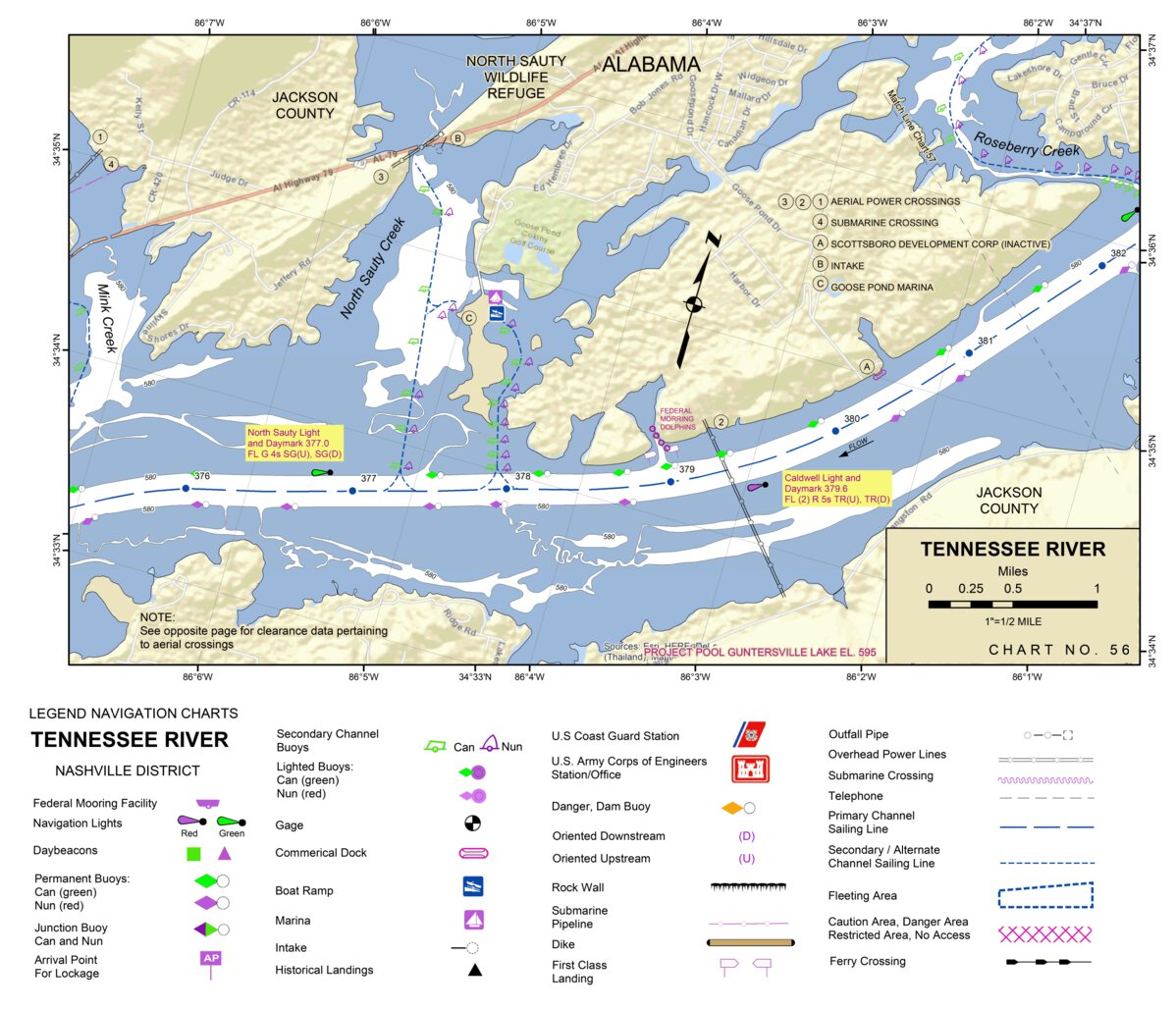

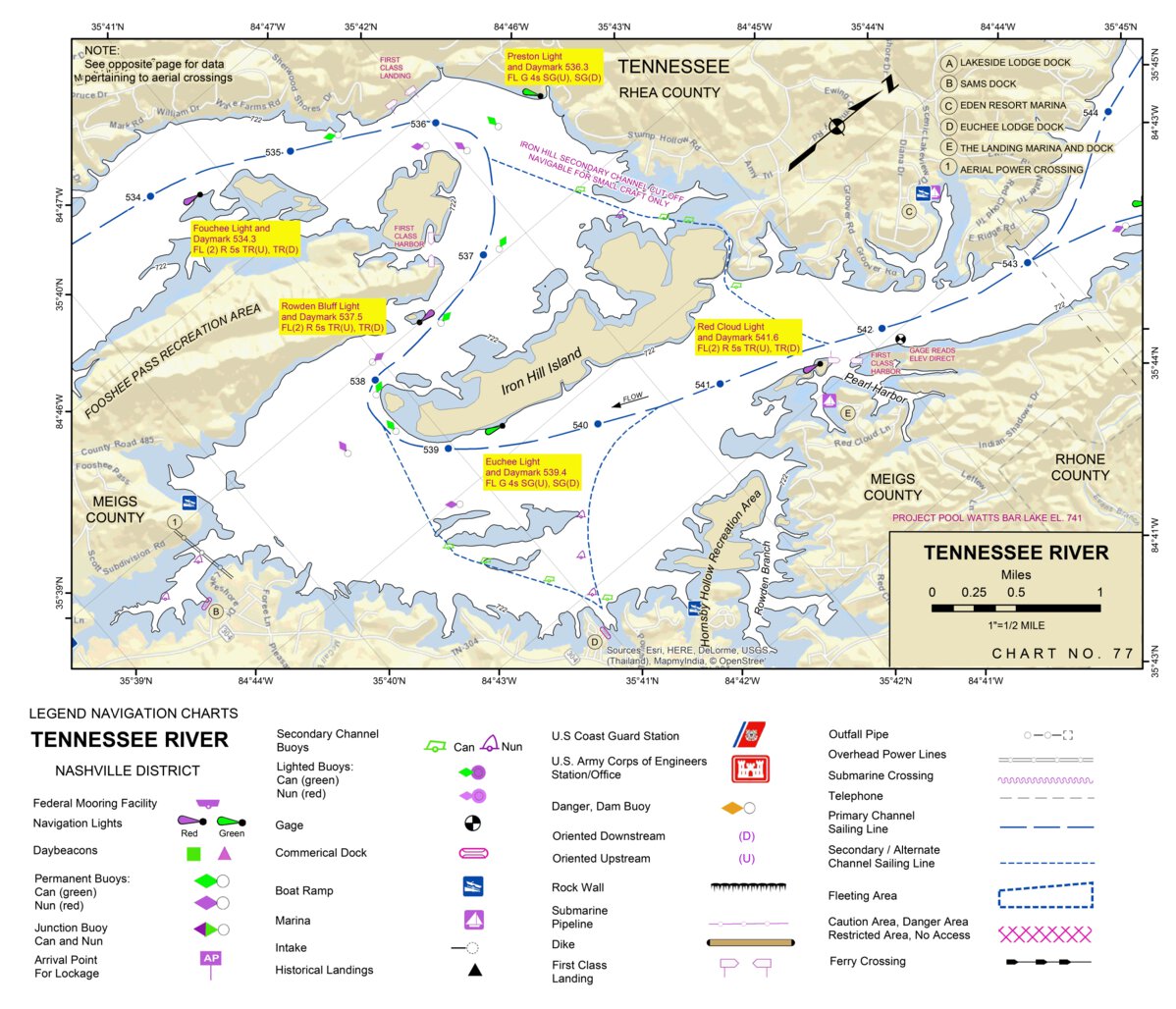

What These Maps Actually Show You
Flood Insurance Rate Maps along the Tennessee River depict Special Flood Hazard Areas, usually Zone AE or AH depending on whether the base flood elevation is specified. For the main river stem, you will primarily see AE zones with numbered BFEs. But the detail you get depends entirely on whether the area has undergone a Letter of Map Revision or a full Flood Control Project modification. The cross-section data included with many of these products shows channel geometry at fifty to one hundred foot intervals along the river. This is where the maps become genuinely useful for design work. If you are designing a bridge or a culvert crossing, the hydraulic grade line from the Corps' HEC-RAS models is baked into these profiles. You can see where the water surface elevation changes, where backwater effects from tributaries kick in, and where the river has migrated enough to make older floodplain boundaries questionable. I ran into a situation last year where a developer wanted to build near the river just upstream of a major tributary confluence. The FIRM showed Zone X, which means outside the 100-year floodplain. But the cross-section data revealed that the 500-year event for that tributary backed up onto the main stem and created a localized pooling effect the base map didn't capture. I flagged this to the local floodplain administrator and the project had to be redesigned. The map said one thing. The hydrology said another.
Get the Full Details
Pitfalls That Will Waste Your Time
Panel numbers on Tennessee River FIRMs follow a confusing format. A typical designation looks like 47019C2500E, where the first five digits are the FIPS county code, the letter indicates the panel type, and the numbers are the panel identifier. But some newer panels use a different numbering scheme after map modernization projects. You will find the same geographic area represented on two different panel sets if the county underwent a CDFIRM update without retiring the old panels immediately. I spent an afternoon tracking down a discrepancy between an archived panel and its modernized replacement only to discover the modernized version had shifted the river's mapped centerline by twelve meters to account for recent dredging. Another issue is the river's stage-discharge relationship. The Corps publishes stage data at gaging stations throughout the watershed, and these are available through the USGS National Water Information System. But the relationship between gage height and the floodplain boundaries on the map is not always current. During high flow events, the river can overtop levees and control structures in ways that static map data doesn't reflect. I once reviewed a project where the FIRM showed a structure outside the floodplain, but the gage records for the previous twenty years showed twelve separate overbank events at that location. The map was wrong. Not maliciously wrong, just outdated in a way that standard map revision cycles didn't catch.
When the Corps Maps Aren't Enough
There are scenarios where the Tennessee River flood maps simply cannot support your analysis. If you are working near one of the navigation dams, the pool elevation behind the dam creates a static water surface that behaves differently from natural river flooding. The Corps maintains separate pool elevation charts for each dam, and these should be combined with the floodplain maps rather than treated as the same dataset. A project at the foot of the Kentucky Dam pool, for example, needs both the FIRM and the dam operations manual to understand flooding risk accurately. For projects requiring high-precision flood elevations, especially in urbanized reaches where development has changed channel characteristics since the last study, consider ordering a Hydrologic and Hydraulic Study from the Corps district office. The Chattanooga district handles most of the Tennessee River study work, and they will produce custom models for a fee. This is not cheap. A full H&H study for a mid-size project can run three to eight thousand dollars and take six to twelve months. But it gives you something the published maps never will: site-specific flood elevations with documented assumptions and methodology that will hold up under regulatory scrutiny.
Practical Tips for Field Work
Printed FIRM panels are still distributed and some jurisdictions require their use for permit reviews. If you are doing site visits, bring the relevant panel and a topographic map from the USGS. The FIRM floodplain boundary is an administrative line. It does not tell you where the actual ground elevation sits relative to the base flood. A property might fall inside Zone AE on the map but sit five feet above the floodplain on the ground if it is on a natural bluff. Conversely, a low-lying area just outside the mapped boundary could still flood during extreme events because the map resolution simply does not capture every depression. I always recommend visiting the site during normal water conditions if possible. The Tennessee River stage at the Florence gage (USGS 02335500) gives you a real-time reference point. During my projects, I typically pull the stage record for the past thirty days alongside the FIRM data to understand what current river conditions look like. A stage reading of 18 feet at Florence means something very different in a drought year versus a wet year because the channel geometry and vegetation have changed. The data is there if you know where to look and what questions to ask. The Tennessee River system is complex enough that no single map product covers all the scenarios that come up in real work. But understanding what each dataset represents, where it falls short, and how to combine multiple sources gives you a practical foundation that most people skip right past.
