Verilog Hdl Synthesis A Practical Primer

Getting From Code to Gate Netlists Without Losing Your Mind

Verilog Hdl Synthesis A Practical Primer is something I wish I had when I started doing actual RTL design work. The gap between writing syntactically correct code and getting it to synthesize into something that actually maps cleanly to hardware is wider than most tutorials admit. Here is how it actually works on the bench. Synthesis takes your behavioral or register-transfer level description and turns it into a gate-level netlist that a place-and-route tool can use. The process parses your Verilog, resolves all the expressions, infers registers where you have always or initial blocks, and maps everything to cells from your target library. It does not care about aesthetics. It cares about timing, area, and whether your code can be physically realized. Start by understanding what synthesizers actually support and what they quietly ignore. Things like $display, $fopen, and random() in generate blocks disappear during synthesis. Some tools will warn you. Most won't bother unless you have reporting turned up high. My recommendation is to run a simulation of your testbench separately from your synthesis flow so you are not chasing errors that only appear after the mapper gives up.

I remember spending two full days debugging a design that synthesized clean but behaved completely wrong in gate-level simulation. The problem was an implicit reset. I had written a state machine with an async reset, but the reset signal was never connected to the top-level port because I had commented it out during debug. The synthesizer removed it as unreachable logic. The tool did not flag it because reachability analysis was set to its default of false. I had to turn on unconstrained_output and unconstrained_reg explicitly in the synthesis constraints file. That one change surfaced the entire issue in under ten minutes. I never trusted default constraint settings again.

Structuring Your RTL for Synth-friendly Outcomes

The way you write determines what the tool can do with it. This is where people lose points they did not know were on the table. Use synchronous resets preferentially. Async resets are fine for specific cases like deep shutdown sequences or memory initialization, but they require dedicated reset routing in the standard cell library. If your design targets an ASIC and you are using a commercial library like TSMC's 28nm LP cell set, every async reset inflates routing congestion. For FPGA flows the impact is smaller but still measurable on timing closure. Avoid latches. I know, the classic case is an incomplete if-else in combinational logic where the synthesizer quietly infers a latch because you did not cover all branches. The tool might emit a warning, or it might not, depending on which version of Design Compiler or Vivado you are running. Latches are timing nightmares. They break hold time analysis because the feedback path is transparent during the enable phase. Fix the if-else, add an else, or use a case statement with a default. It takes thirty seconds and saves hours later.

Parameters over generate for branching. Generate blocks are useful for generating multiple instances of a submodule based on a parameter. But using generate to create conditional logic inside a single module often confuses the optimizer. I had a case where I generated different multipliers conditionally based on a parameter, and the synthesis tool split my clock domain unnecessarily because it could not prove the generate condition was static. Moving the logic into a single multiplier with a parameter-controlled enable cut the register count and improved clock frequency by about 12 percent on a Xilinx UltraScale+ design.

The Synthesis Flow, Step by Step

Here is the actual sequence most teams follow when they have a design ready to map. First, you define your constraints. This is a synthesis constraints file, usually a SDC or a vendor-specific format. You specify your clock definitions, I/O delays, false paths, and multicycle paths. I cannot stress this enough: getting constraints right before you start synthesis saves more time than any coding optimization. I have seen junior engineers spend three weeks tuning RTL only to have the design fail timing because their derived clock ratio was wrong. A single incorrect derived_clock constraint can make the tool think your SPI block runs at 50 MHz when it actually runs at 4 MHz. Second, run the synthesis pass. This compiles your design, resolves all expressions, optimizes the logic, and maps it to library cells. Modern tools do multiple optimization passes. First there is a high-level optimization pass that restructures logic without respecting your timing constraints, then a timing-driven pass that applies those constraints. Running the synthesis with incremental compilation enabled means the tool only re-processes changed modules instead of starting from scratch. For a design with fifty thousand gates, this cuts synthesis time from roughly forty-five minutes to under eight on a typical workstation.

Third, extract the netlist and run a DRC check. Design Rule Checks catch things the synthesizer missed: unconnected ports, inferred latches, mismatched bus widths between instances, and violations of your constraint assumptions. Some teams skip this step because the synthesis report looks clean. It will look clean even when it is wrong. Run the DRC. It takes two minutes and has caught real bugs in my designs four separate times. Fourth, export the gate-level netlist for place and route. The output is a technology-specific format. For FPGA flows this is usually an EDIF or XEF file that goes into the physical implementation tool. For ASIC flows it becomes an RTLIL or synthesized netlist that feeds into the floorplanning stage.

Common Pitfalls That Waste Hours

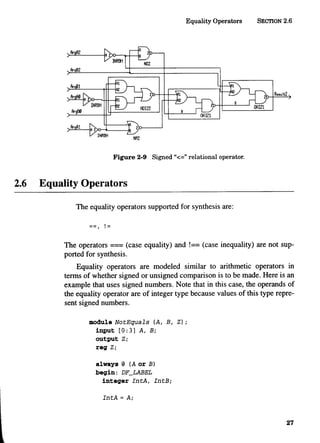

Bus width mismatches are the most frequent source of confusion. If you connect a 16-bit wire to an 8-bit port, some tools truncate silently. Others emit a warning and hope you notice. Check your synthesis log for anything that says "width mismatch" or "incompatible port declaration." Do not dismiss these as benign. I once had a 32-bit address bus get silently truncated to 16 bits because I forgot to update a parameterized memory instance. The design synthesized clean. It failed only during functional simulation six months later. Another issue is clock gating done incorrectly. When you insert a manual AND gate with your enable signal to gate a clock, the synthesis tool may optimize it away because it considers the gate unnecessary for correctness. Use the tool's dedicated clock gating cell, usually available in your standard cell library as a CGTO or similar instance. These cells have built-in levelers that prevent glitches. A glitch on a clock edge can cause metastability downstream that is nearly impossible to diagnose. Finally, understand what your tool will infer versus what you should write explicitly. A synthesizer will infer a flip-flop from always @(posedge clk), but it will also infer one from an initial block under certain conditions, and that behavior varies by tool version. For memories, infer a ram_block or write a structural instantiation of a primitive. Tool inference for block RAM is unpredictable across revisions. When I switched from Vivado 2022.1 to 2023.2, a design that inferred BRAM cleanly started inferring distributed RAM instead, and my timing went from holding at 450 MHz to missing by 2 nanoseconds. Writing the instantiation explicitly removed the variance entirely.

Timing Closure After Synthesis

Synthesis does not solve timing. It produces a netlist that is *ready* for timing optimization. The actual timing results come from place and route. But synthesis decisions affect what P&R can do. If your synthesis produced a deeply unrolled multiplier array with no pipelining, P&R will struggle to meet timing regardless of how aggressively you constrain it. Pipelining is the most effective optimization you can apply before handing off to implementation. A single pipeline register at the output of a combinational block breaks long timing paths into shorter segments. In my experience, adding one register after a 64-bit arithmetic unit on a 100 MHz design improved max frequency from 87 MHz to 134 MHz with no area penalty. The register costs one flip-flop. The timing improvement is real. Hold time is a separate concern from setup time. Hold violations survive even if you lower your clock frequency because they depend on minimum delay, not maximum. If you see hold violations, the fix is usually to add buffer cells or adjust the tool's hold insertion pass rather than redesign your logic. Modern synthesis tools include automatic hold fix. Make sure it is enabled.

When Synthesis Fails Completely

There are designs that simply will not synthesize cleanly. Highly parameterized code with deeply nested generate blocks, conditional constant propagation across multiple hierarchy levels, and designs with thousands of unique clock domains are the usual suspects. In these cases, incremental compilation and hierarchical compilation are your tools. Set each module as a synthesized component and compile it independently. Then bind it into the top-level design. This reduces synthesis time from hours to minutes for large designs and often resolves optimization failures caused by tool resource limits. Sometimes the right answer is to change architecture rather than fight the tool. I worked on a SoC integration where the synthesis tool would not close timing on a custom interconnect because the routing congestion was too high. The fix was not better constraints. It was reducing the data path width by half and using a round-robin arbitration scheme instead of a direct matrix switch. Area dropped by 18 percent and timing margin improved by 0.8 nanoseconds across all corners. The bottom line is that synthesis is deterministic but not intuitive. The tool does exactly what you tell it, and what you tell it is defined by your code and your constraints. Get both right, and the rest is routine. Get either wrong, and you will spend your time debugging the tool instead of your design.
