Working with the Virago 750 Service Manual
The Yamaha Virago 750 is an aging platform now, and most of the shop manuals floating around online are either scanned copies of faded originals or someone's rushed attempt to recreate them. If you are pulling one apart for the first time, the difference between a proper service manual and a fragment from a forum thread can mean the difference between spending four hours on a carb sync and spending forty minutes because the specs were right in front of you. I have rebuilt enough of these that I stopped trying to memorize tolerances and just carry the manual in a plastic sleeve on the workbench. The one I use most often is the official Yamaha shop manual from the early 1990s. It is not perfect, but it has the torque specs, the adjustment sequences, and the wiring diagrams in the right order. A lot of people try to patch together info from three different sources and end up guessing at spark plug torque or ignoring the valve clearance procedure entirely. That is where things go wrong.
Where to find a decent Virago 750 Service Manual

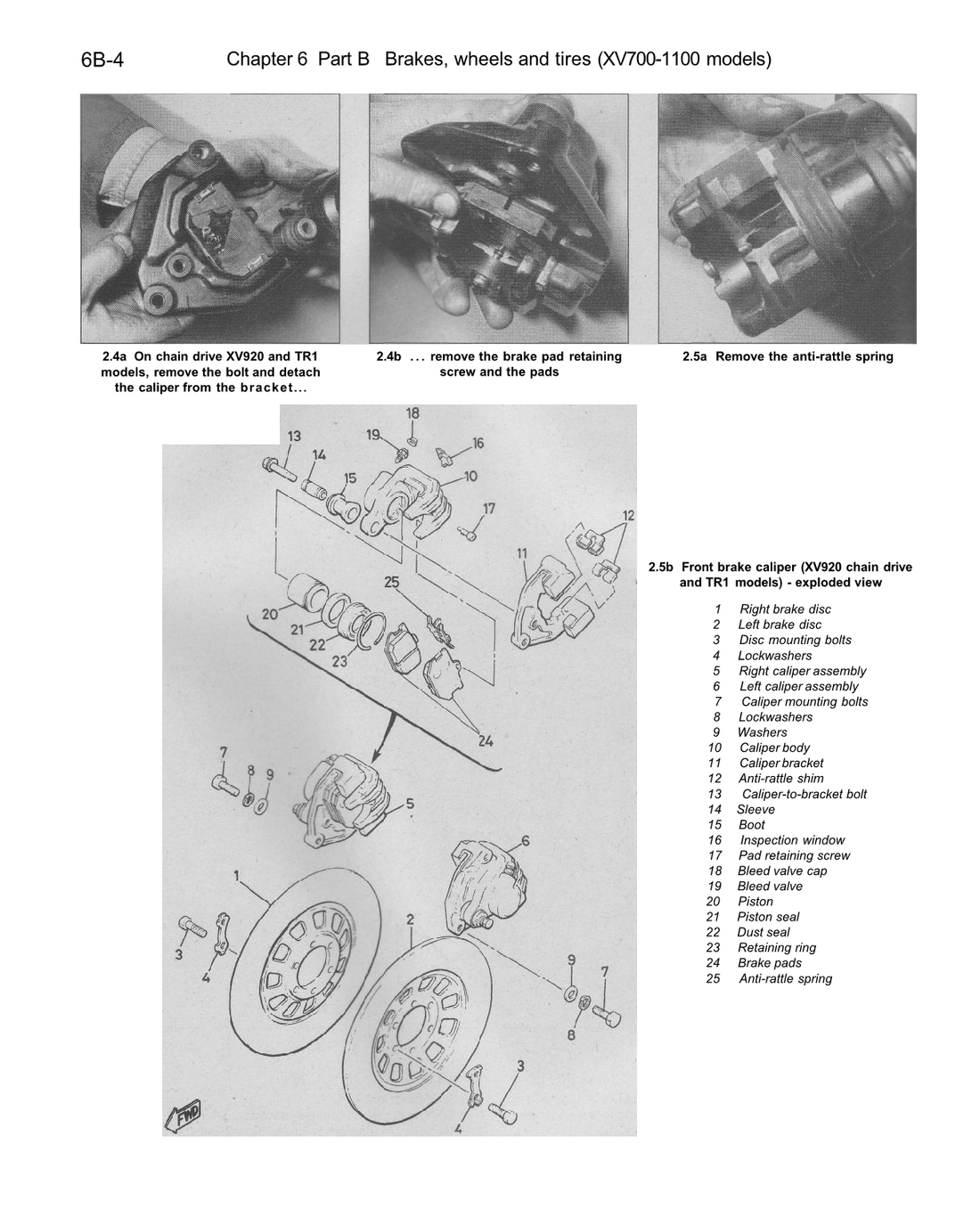

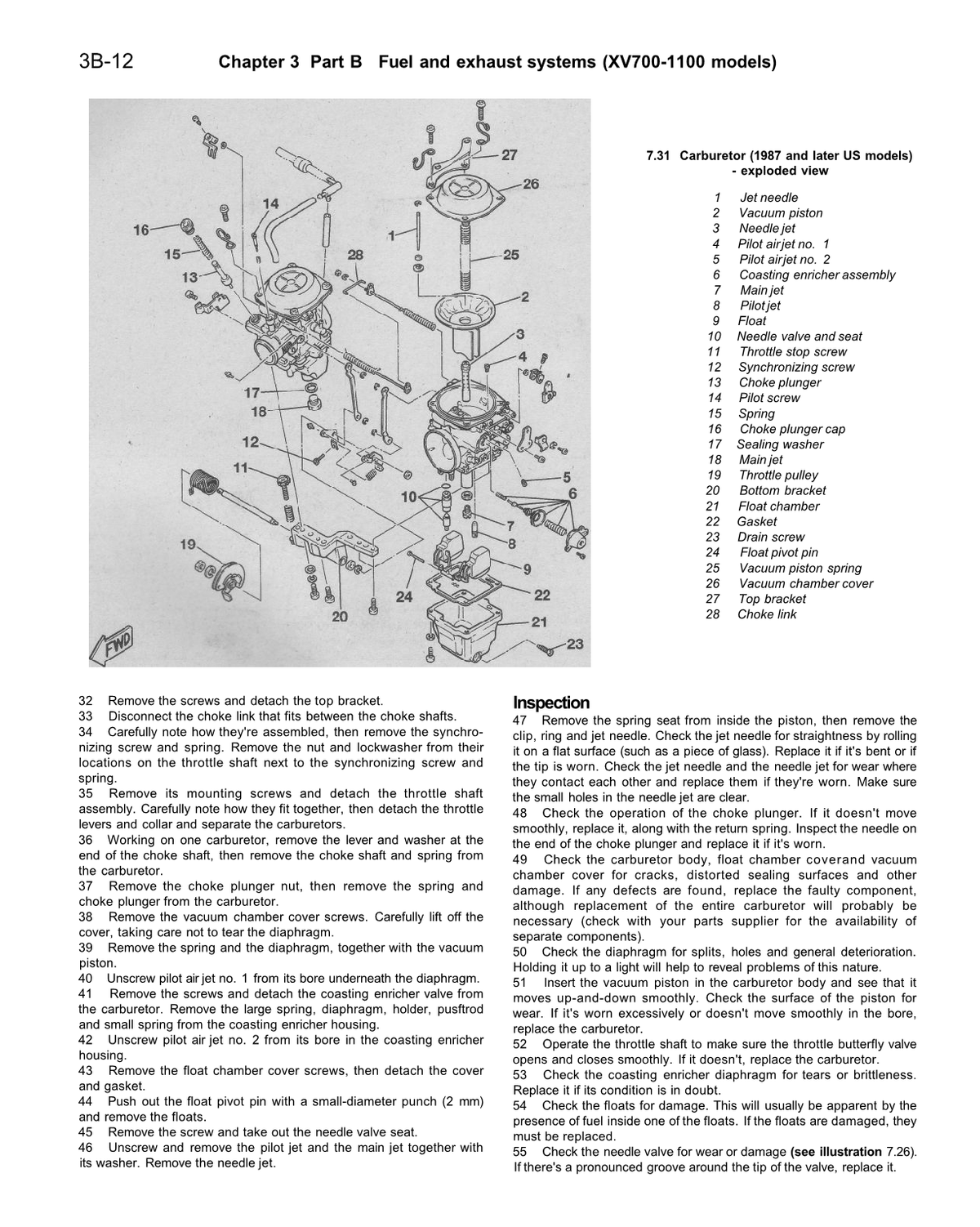

The most reliable versions circulate as PDFs on motorcycle forums and archive sites. Search for the Yamaha YMZ-T0303 or YMZ-T0304 codes, which are the official factory document numbers. Those will get you the genuine manual rather than a fan-made copy. If you pull one from a random download site without checking the page quality, you might end up with a version where the tolerance tables are unreadable because they were scanned at too low a resolution. I learned that the hard way on a timing chain adjustment when I couldn't tell whether the spec was 0.2 millimeters or 0.3 millimeters of play. The manual covers four main areas that matter most for ownership: the carburetor setup, the valve clearance procedure, the electrical system diagrams, and the frame and suspension specs. Everything else is detail work that anyone with basic tools can figure out. The carb section is where most people lose time. The Virago 750 uses a set ofKeihin CV carbs that are sensitive to air leak and mixture screw setting. The manual gives the base idle speed and the mixture screw starting point, but it does not tell you what to expect if the bike has been sitting with old fuel in the bowls. I once spent almost an hour trying to get a consistent idle on a 1987 Virago 750 that had been stored for two years. The manual says to adjust the throttle cable play and then set the idle screw to 950 RPM with the mixture screws backed out two turns from fully seated. That worked for the starting point, but the real problem was a vacuum leak at the intake manifold gasket. The manual lists the torque for those manifold bolts at 12 newton-meters, but it does not warn you that these rubber mounts crack over time and the bolts will bottom out before the gasket is actually sealed. I solved it by cleaning the mating surfaces, applying a thin coat of Permatex Ultra Black, and retorquing in a cross pattern. The idle stabilized immediately after that.
The valve adjustment procedure is another area where the manual is accurate but easy to misapply. The spec calls for 0.10 to 0.15 millimeters on the intake and 0.15 to 0.20 millimeters on the exhaust, measured cold. The trick is knowing when the piston is actually at top dead center on the compression stroke. The TDC mark on the flywheel is there, but you also need to watch the valve train. If both valves are slightly loose when you check them at TDC, you are on the exhaust stroke, not the compression stroke, and your measurements are wrong. I keep a length of hose routed from the spark plug hole so I can feel positive compression pressure while I line up the mark. It takes five seconds and saves you from a whole lot of wasted turning. One thing the manual does not do a great job of explaining is the ignition timing procedure. The Virago 750 uses a CDl unit with a fixed timing curve. There is no adjustable timing advance, and the manual tells you to check it by aiming a timing light at the flywheel marks with the engine running. The marks can be hard to read under shop lighting. I found that connecting a test light between the black/yellow wire at the ignition coil primary and ground, then spinning the engine by hand, lets you see when the CDI pulses. It is a slower method than using a stroboscope, but it is repeatable and it tells you whether the pickup coil gap is within spec. That gap is set at 0.3 to 0.5 millimeters, and if it is loose, the timing will drift under vibration. The manual mentions the gap spec but does not emphasize how much real-world performance depends on keeping it tight.
Get the Full Details
Using the manual effectively
When you are actually working on the bike, the manual works best when you treat it as a reference sequence rather than a novel to read cover to cover. Pull the section you need, print it if the PDF is bulky, and keep it next to the bike. I usually highlight the torque specs and tolerance ranges with a yellow marker so I do not have to flip back and forth while the fasteners are already loose. The electrical section is worth more than its weight in trouble. The wiring diagram alone can save you from chasing a phantom ground. I once had a bike that would not start and traced the issue all the way to a corroded connector at the main harness junction near the battery. The diagram showed the wire colors and the connector pin layout, but it does not annotate which connectors are known failure points. That knowledge comes from experience. The manual is correct on paper; it just assumes you already know where these bikes tend to let themselves down. Another limitation to be aware of is that the manual reflects the bike as it left the factory. It does not account for modified exhaust systems, aftermarket carbs, or worn engine components that change the baseline behavior. If you are working on a stock Virago 750, the manual specs are your anchor. If the bike has been altered, you use the manual as a starting point and then measure everything yourself. Fuel mixture, ignition timing, and valve clearance all shift with modifications, and no printed manual will tell you the new targets. You find those through testing.
The manual is also not great on troubleshooting flows for intermittent electrical faults. It gives you resistance values for sensors and switches, but a cold resistance check will not catch a connector that only loses contact when the frame flexes. I have found that the best approach with these older Yamahas is to verify continuity under load and movement, not just at rest. Wiggle the harness while monitoring resistance. Check ground points by measuring voltage drop between the point and the battery negative terminal while the circuit is active. These are small steps that the manual hints at but does not make central to the diagnostic process. If you are looking for a digital copy, the official Yamaha documentation is sometimes available through their parts and service portal, but access varies by region and year. Most riders end up with a community-sourced PDF. Before you download one, check the file size and page count. A complete manual for this bike should be around 200 to 300 pages including the wiring diagrams. Anything significantly shorter is probably missing sections, and anything over 400 pages may include material from other Virago models that does not apply to the 750. I prefer the version that matches the YMZ-T0303 code and includes the full factory wiring schematic at the back. The real value of this manual is not in any single procedure but in having all the baseline specs in one place. Torque values, clearances, fluid capacities, wire gauges. When you know where to look and you understand the context behind the numbers, you spend less time searching and more time working. The Virago 750 is simple enough mechanically that most of the challenges come from age and corrosion, not from complex engineering. The manual gives you the engineering. The rest is patience and a good set of feeler gauges.
