Disassembling the Walther P22

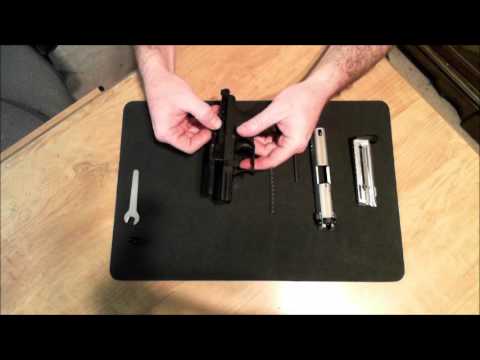

The Walther P22 is a semi-automatic .22 LR pistol that's become one of the most popular training and plinking guns around. The breakdown process is straightforward once you know the sequence, but there are a few details that matter if you actually want it to go back together cleanly. Start by ensuring the firearm is completely unloaded. Remove the magazine, pull the slide back, and visually and physically inspect the chamber. This isn't just procedural compliance—it's the part where you prevent actual problems later. I once tried to field-strip a P22 that still had a round in the chamber because I didn't double-check after the magazine dropped. The slide wouldn't move forward at all. Took ten minutes of patience to clear it properly. With the pistol confirmed clear, rack the slide several times to cycle out any residue buildup. Now push the takedown lever on the left side of the frame toward the rear until it stops, then pull the takedown lever downward. This releases the slide assembly from the frame. Slide the upper assembly forward off the frame completely. You're now looking at a separated slide and frame.
Remove the recoil spring assembly from the slide first. It sits under the barrel and can pop out unexpectedly if you don't control it. Once the spring is out, lift the barrel slightly at the rear and remove it forward from the slide. That's your basic field strip complete.
Reassembly Considerations
Putting it back together reverses the process, but there's a specific moment where people usually struggle. When reinstalling the slide onto the frame, you need to align the barrel link pin with its corresponding slot in the frame. The barrel should sit in the slide before you lower the slide assembly onto the frame rails. If you force it, you'll bend something or cross-thread the fit. I learned this the hard way when the barrel link kept catching on the frame during reassembly. The workaround is simple: compress the recoil spring just enough so the slide moves freely, then guide the barrel link pin into place before allowing the spring to fully seat. It took me three attempts to get the timing right on my first rebuild, and now it takes about thirty seconds.
Get the Full Details
Deep Dive: What Beginners Miss
Most guides don't mention the extractor spring. It's tiny, located inside the slide near the ejection port, and it wants to fly across the room the moment you separate the slide from the frame. I've replaced at least four of these over the years because they escaped during disassembly. Keep a towel over that area or work over a contained surface. The extractor spring is roughly the size of a paperclip segment and costs about two dollars if you need a replacement from Walther directly. Another thing nobody emphasizes: the trigger bar connector. It drops out of the frame when you separate the slide, and if you're not watching for it, it disappears into carpet fibers or under equipment. I keep a small magnetic tray specifically for this reason. Without it, the trigger mechanism won't reassemble correctly, and you'll spend an hour looking for a piece that's probably sitting somewhere absurdly obvious.
Limitations and Real Talk
This is a field strip procedure, not a full disassembly. You cannot remove the trigger group, the firing pin, or the barrel bushing without specialized tools and knowledge of internal components beyond the scope of basic maintenance. Attempting deeper disassembly without proper documentation will likely result in damaged parts or a pistol that doesn't function safely afterward. Also worth noting: the P22 uses a unique barrel attachment system compared to most centerfire pistols. The barrel rotates slightly during operation, and the link pin that secures it is a precision-fit component. Dropping or damaging this pin will cause timing issues that manifest as feeding problems. If your P22 starts malfunctioning after reassembly, check the barrel alignment before assuming the recoil spring is too stiff or the magazine is worn. Clean the barrel with a .22 caliber brush and solvent after every shooting session. The P22 is notoriously sensitive to carbon buildup in the chamber throat, and a dirty chamber is the single most common cause of feeding failures in this platform. It takes about five minutes of cleaning and usually prevents the majority of issues people complain about.
