Reading a Waterway Pump Parts Diagram Without Losing Your Mind
Most people grab a parts diagram and immediately get lost in the sea of part numbers, exploded views, and manufacturer codes that don't match what they have in front of them. It happens because waterway pump diagrams aren't drawn the same way across every model, and the reference numbers shift depending on whether you're looking at a variable-speed unit, a standard single-speed pump, or one of their older Jandy-style hybrids. A Waterway Pump Parts Diagram is really just an exploded view of the pump assembly with every component labeled so you can identify what broke, find the replacement, and put it back together without guessing. The key sections you'll see are the volute, impeller, seal plate, motor shaft, mechanical seal, and the rear cover with its gaskets. That's the basic layout. Everything else is variation on that theme. When I opened my first Waterway pump housing during a routine rebuild, the diagram I pulled from the website showed part number 9-120 for the mechanical seal, but the physical seal in my hand was marked 9-150. The diagram was correct for the 1.5 to 2 horsepower models but wrong for the higher output versions. I spent about twenty minutes on the phone with a distributor before figuring out the part numbering diverges at around the 2.4 HP range. Lesson learned: always verify the exact model number on the pump tag against the diagram, not just the brand name. A single misread digit can send you down a rabbit hole.

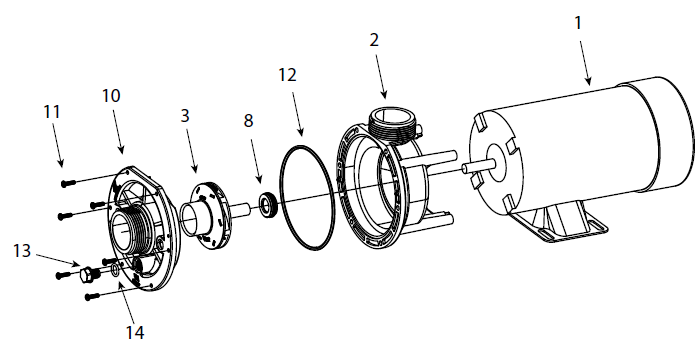

The actual diagram is organized with callout numbers pointing to each component. Those numbers correspond to a parts list table, usually at the bottom or on a separate sheet. The trick most people miss is that the same part number can refer to different physical components depending on the pump series. Waterway uses some overlapping part numbers across their EC-40, EC-60, and older lineups. Cross-reference the series code first, then match the diagram number to your table.
Where People Go Wrong With These Diagrams
Here's the thing that catches everyone out. The mechanical seal isn't one piece in these pumps. It's actually two halves, the stationary part pressed into the seal plate and the rotating part mounted on the impeller. The diagram lists them as separate line items but calls them both under seal-related numbers. If you order just one and assume the other comes pre-installed, you'll be staring at an empty slot on the impeller side. I once shipped a customer an entire seal kit only to have them call back furious because half the components were already installed on their old impeller and they didn't realize it. The diagram didn't make that clear either. Another common mistake is ignoring the O-ring catalog numbers. The main O-rings on Waterway pumps are typically listed as item numbers in the low twenties range, but they vary significantly by housing size. The 3-inch port O-ring isn't the same as the 4-inch. The diagram will show similar-looking rings but assign them different part numbers. Using the wrong one might seem fine until you run the pump and watch it cavitate within fifteen minutes because the seal isn't holding pressure properly. There's also the matter of the diffuser. Some newer Waterway models include a diffuser ring inside the volute that older diagrams don't show at all. If you're working on a newer pump and your diagram is outdated, you'll wonder where that extra ring came from when you open the housing. It's not a mystery part. It's just missing from the reference material. Always check the publication date on whatever diagram you're using, or better yet, pull the latest version directly from Waterway's official documentation rather than a third-party reseller site.
Get the Full Details
Practical Steps for Using the Diagram
Start by locating the full model number on the pump nameplate. It's usually a sticker on the side of the volute housing, and it looks something like EC40S12345. Write that down. Then find the matching diagram online using that exact model number, not just searching for Waterway pump parts generic images. The generic diagrams cover baseline models and skip the variations that matter for your specific unit. Once you have the right diagram, print it out. Yeah, print it. Digital zooming on a phone screen while you're standing over a wet pump on a pool deck is a recipe for reading the wrong part number. Lay the print next to the pump, mark off each component as you identify it, and note which ones look worn. You'll move through the disassembly process faster because you already know what you're looking for before you anything apart. When ordering replacements, list the diagram item numbers alongside the part descriptions. Supply houses and online retailers sometimes carry multiple versions of the same component, and having the diagram reference number eliminates confusion. If you just say "mechanical seal," you might get sent the wrong specification. Add the diagram part number and they'll pull the exact one.
One more thing that isn't obvious from the diagram itself. The torque specifications for the housing bolts matter more than most people realize. Waterway pump housings use a cross-pattern tightening sequence similar to engine cylinder heads, and overtightening the seal plate bolts can warp the aluminum surface. That warping creates a leak path that no amount of sealant will fix because the mating surfaces aren't flat anymore. The diagram doesn't tell you this, obviously, but it's something you'll learn the hard way if you skip it. Use a torque wrench set to the manufacturer's spec, usually somewhere between eight and twelve foot-pounds for these housings, and go in stages. If you're dealing with a pump that's been sitting for years and the housing bolts are corroded, don't force them. Penetrating oil and patience beat a stripped bolt every time. I've replaced entire seal plates because someone tried to yank a frozen bolt with an impact driver. The diagram showed you exactly what you were working with, but it couldn't prevent that kind of mistake.
