Understanding Quantized Values in Practice
When you are dealing with quantized values, you are looking at a system where a variable can only take on specific discrete values rather than any value within a continuous range. This concept shows up in digital signal processing, physics, statistics, and computer science. The list of things that have quantized values depends entirely on context, but there are clear patterns.

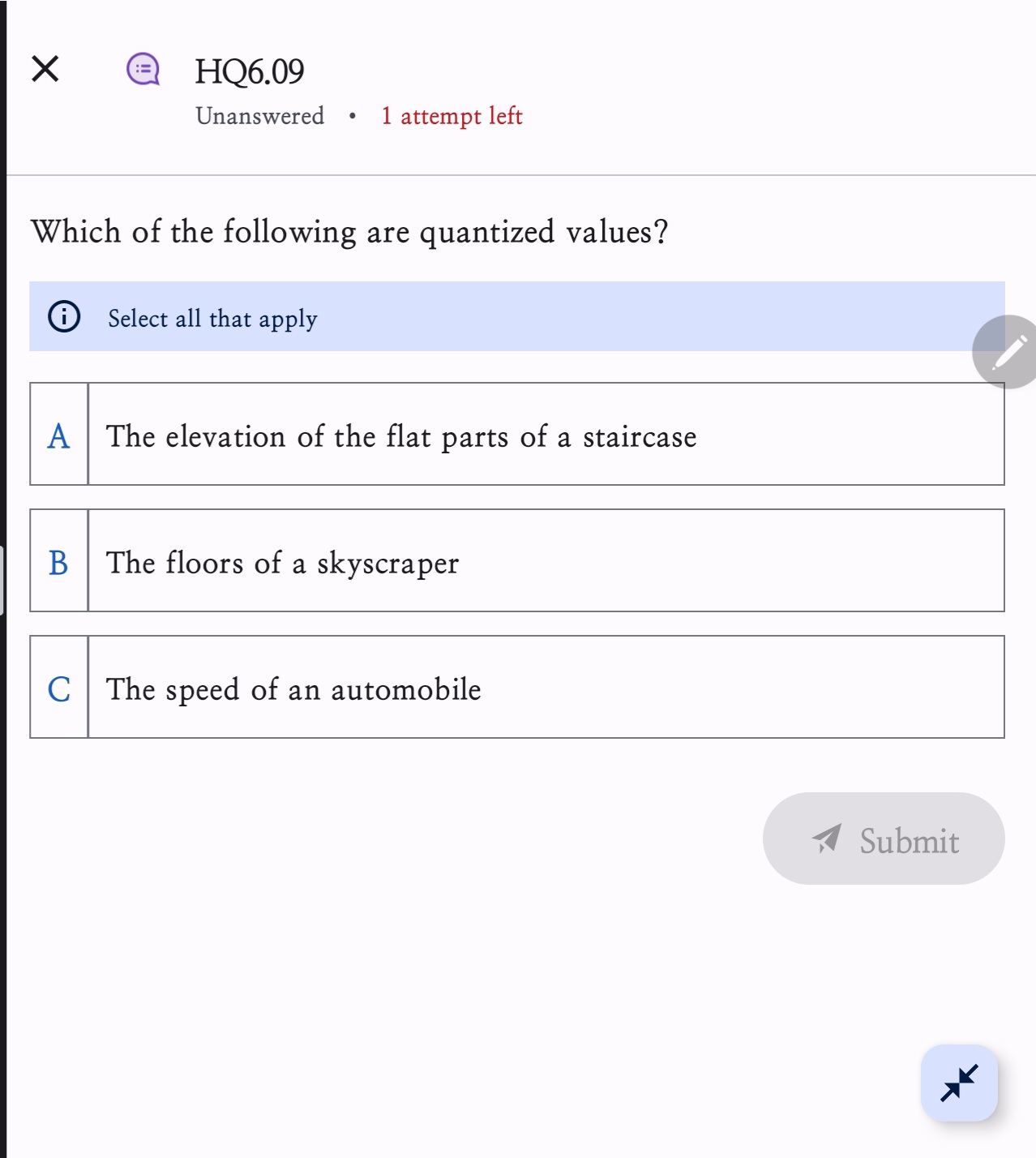

Which Of The Following Have Quantized Values
The most common examples include: What does not have quantized values is the opposite. Continuous signals, analog voltages without a converter, real numbers in pure mathematics, and most naturally occurring physical measurements before they are digitized. These are all fundamentally continuous. I ran into a real problem once when working with audio quantization artifacts in a mix that was supposed to sound natural. Someone had re-quantized a high-resolution stereo file down to 16-bit and then up again through a cheap upsampling plugin. The result was that soft passages developed a faint harmonic distortion that was not present in the original recording. It was subtle but measurable. The workaround was to use a proper dither algorithm during the initial bit-depth reduction. Dither adds a small amount of noise to randomize the quantization error so it does not create audible distortion products. Without dither, the quantization steps create correlated errors that sound like distortion.
There is a counter-intuitive thing about quantization that beginners often miss. More bits does not always mean better results. In some measurement systems, adding quantization levels beyond the noise floor of your sensor is pointless waste. If your analog front end has a signal-to-noise ratio of 70 decibels, you do not need a 24-bit ADC. An 11 or 12-bit converter would capture everything your system can actually deliver. Going further just increases file size and processing load with zero improvement in signal quality. Another pitfall is assuming that quantization error is evenly distributed. In real systems, certain quantization levels may be more prone to error due to nonlinearity in the converter, temperature drift, or power supply variations. I have seen precision measurement systems where two adjacent quantization levels had a consistent gap because of a bad solder joint on the DAC board. The error showed up as a repeated artifact every time a measurement crossed that particular threshold. Finding that kind of issue requires careful analysis of the quantization histogram, not just looking at the raw output values. For a practical how-to approach to identifying quantized values in your own work, start by examining the distribution of your data. Plot a histogram. If you see distinct bars with gaps between them rather than a smooth curve, your values are quantized. The width of each bar tells you the quantization step size. Measure the gap between bar centers and that is your quantization interval.
If you are working with signal processing and need to perform quantization intentionally, the standard approach is to multiply your continuous values by the number of levels, round to the nearest integer, then divide back by the number of levels. For a 256-level system, that means multiplying by 255, rounding, and dividing by 255 to normalize back to the original range. Most DSP libraries handle this automatically, but understanding the mechanism helps when things go wrong. The main limitation of quantized systems is that they introduce information loss. Once you convert a continuous signal to discrete values, you cannot recover the lost detail. This is irreversible. If you need the highest possible fidelity, you should quantify as late in the chain as possible and keep data in its highest available resolution for as long as practical.
