Finding the Right Parts for Your Woods L59 Without Losing Your Mind

The Woods L59 is a three-point hitch rotary cutter that's been around long enough that finding parts through official channels can feel like archaeology. The manual parts diagram is your starting point, but the reality of ordering from it is a bit more complicated than flipping through a PDF and hitting submit. I've gone through this process more times than I care to count, and there are a few things that aren't obvious until you're standing in a barn at 5 PM on a Tuesday wondering why the replacement deck brace won't fit. Woods (now part of New Holland Agricultural) still maintains some legacy documentation online. The official route is through the CNH Industrial parts portal or the AGCO parts catalog. If you have the serial number of your L59 — and you should, because there's no way around this — you can pull up the exploded view diagram with part numbers directly. The serial number is stamped on a plate near the top of the gearbox housing or sometimes on the frame rail under the cutter deck. Look for a plate that says something like "L59-XXXXX" where the X's are your serial digits. Once you have the diagram open, don't just search by the part name. Search by the part number. The diagram will list every fastener, seal, gear, and bracket with its own number. Here's the thing most people miss: Woods used different suppliers over the decades, and the same physical part can appear under two different part numbers depending on when it was manufactured. I learned this the hard way when I ordered a replacement idler arm for a 1998 L59 and the part came in the wrong shape entirely. Cross-referencing the old number against the new one on a forum like TractorByNet or Yellowtrac resolved it in about ten minutes.

Reading the Diagram Correctly

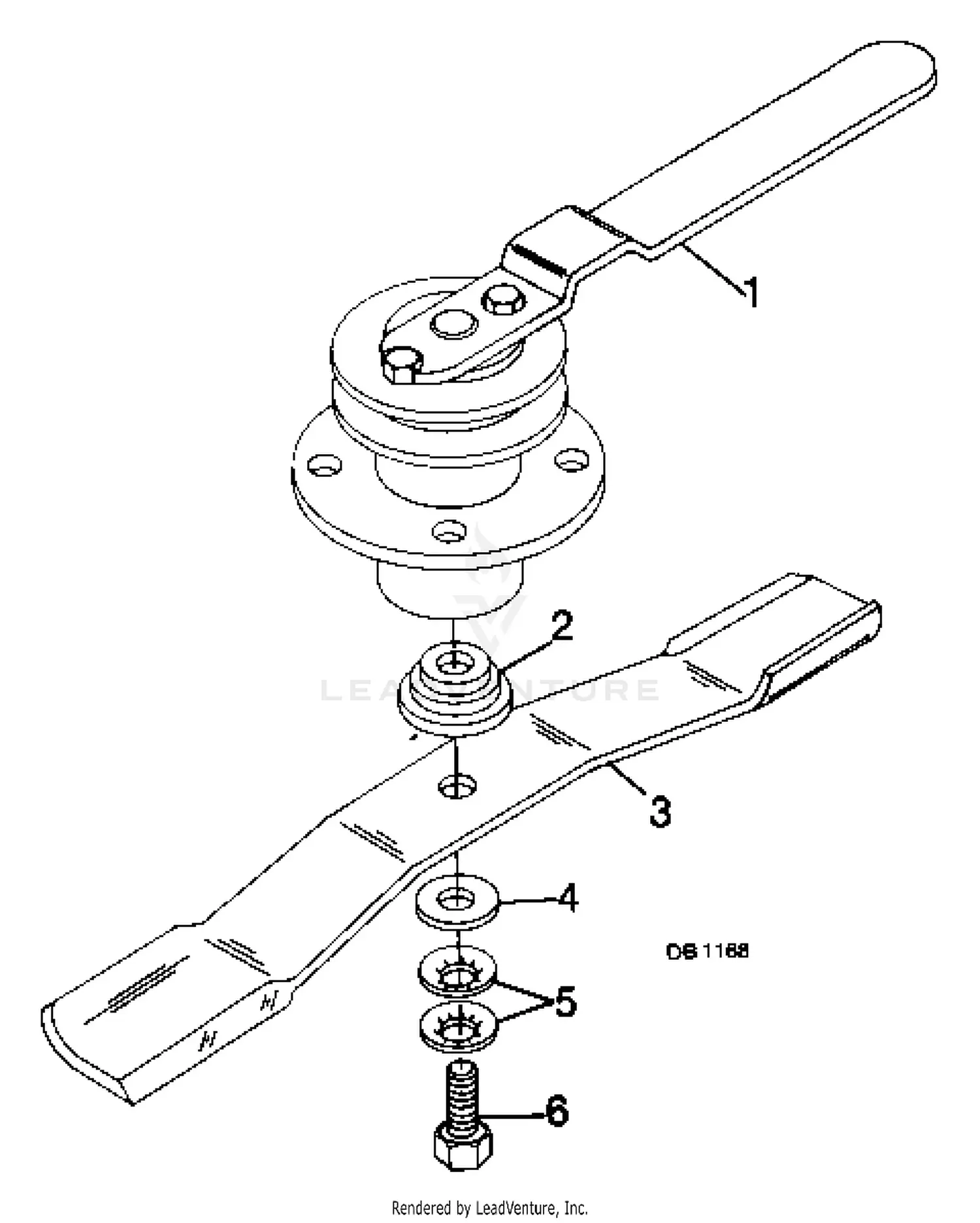

An exploded parts diagram for the L59 breaks down into several main assemblies: the main gearbox, the cutter deck frame, the PTO driveline, the idler pulley system, and the belt routing. Each section has its own sub-diagram. The gearbox diagram is the most useful one because that's where most failures happen. The idler arms, bearings, and seals in that section are wear items that go long before the rest of the machine shows serious trouble. When you're looking at the gearbox diagram, pay attention to what's marked as a service kit versus a individual component. Woods typically offers a gearbox rebuild kit that includes all the bearings, seals, and O-rings you'd need for a full teardown. Buying individual pieces one at a time as something fails is a slow way to end up with a half-built gearbox and a pile of leftover gaskets from three different years. A complete rebuild kit for the L59 gearbox runs roughly $85 to $130 depending on the supplier, and it saves you from guessing which seal sizes you need. The belt routing diagram is equally important and just as overlooked. The L59 uses a specific belt configuration that loops around multiple idlers and the main gearbox pulley. If you're replacing a belt and it doesn't seem to route right, check the diagram for the belt part number rather than trying to figure it out by eye. I once spent forty-five minutes trying to route a generic V-belt on a used L59 deck before realizing the OEM belt had a slightly different profile length that changed the entire geometry. A Gates 5L380 or the Woods-equivalent part number from the diagram got it right immediately.

Common Pitfalls When Ordering from the Parts Diagram

There are a few consistent problems that come up when people work from the Woods L59 Belly Mower Parts Diagram without accounting for manufacturing changes over time. Serial number breakpoints matter more than you think. Woods made subtle changes to the L59 over its production run. The most significant breakpoint I've seen is around serial number 12000, where the deck frame reinforcement pattern changed and some mounting brackets shifted slightly. If you're buying replacement brackets or the main deck cross-member, make sure your serial number falls on the right side of whatever breakpoint applies. Some parts catalogs will flag these variations. If yours doesn't, call the supplier and give them your serial number before ordering anything structural. The PTO shaft is not a universal replacement. The L59's PTO driveline has a specific splined input that mates with the gearbox. Aftermarket PTO shafts that claim to fit "most 540 RPM cutters" often have a slightly different spline count or diameter. I replaced a PTO shaft on a friend's L59 with a cheap online deal and it slid right in until we tried to bolt the output flange to the gearbox input — the splines didn't match. The correct Woods part number for the standard PTO shaft assembly is something you need to pull from your diagram, not guess at from a parts store shelf.

Fastener grades are easy to get wrong. The diagram lists torque specs and sometimes fastener grades for critical joints, especially on the gearbox mount and the main pivot points. Replacing a Grade 5 bolt with a cheaper Grade 2 from the hardware store might seem fine until that bolt shears under normal loading and you're dealing with a cracked frame mount. The L59 deck hinges and gearbox mounting bolts are subjected to real vibration and torque. Use the right fasteners. They cost maybe ten dollars more for a full set and they keep the machine from coming apart.

What the Diagram Won't Tell You

The parts diagram is a reference, not a repair manual. It shows you what the components are and how they relate to each other, but it doesn't tell you the common failure modes or the order in which things usually come apart. Here's what I've learned from actually taking these machines apart: The gearbox on an L59 typically fails in one of two ways. The most common is bearing wear in the main output shaft, which shows up as a whining noise that gets louder with engine RPM and some lateral play in the cutter rotor. The less common but more expensive failure is gear tooth wear from running the PTO at too high an RPM for extended periods — these are designed for 540 RPM, not 1000, and people who modify the drive ratio regularly destroy the gear set within a few seasons. If you're hearing noise from the gearbox, disassemble it and inspect the bearings before ordering a rebuild kit. Sometimes the gears are fine and you only need the bearings and seals. The cutter deck itself is remarkably simple but it does have one weak point. The skid shoes and the deck edge wear plates are the first things to go, and they're also the cheapest parts to replace. However, if you're mowing rough terrain with rocks and stumps, the deck belly plate can develop stress cracks around the bolt holes near the center. This isn't covered in the parts diagram. Inspect the deck interior annually and look for hairline cracks radiating from any bolt hole. A cracked deck plate will propagate quickly under vibration. Welding it is possible but not ideal — the plate is hardened steel and welding without proper preheat and post-heat treatment can create new crack points. Replacing the plate is the safer move.

Another thing the diagram doesn't show is the condition of the shear bolts. The L59 uses shear pins or bolts in the cutter rotor assembly as a safety mechanism. When the blade hits a solid obstacle, the shear element breaks before damage reaches the gearbox. These are meant to break. If you've replaced a shear bolt with a regular bolt of the same size and grade, you've removed the safety mechanism and you're one rock away from a destroyed gearbox. Check your shear bolts periodically and replace them with the exact spec from the diagram, not a hardware store substitute.

Practical Steps to Get What You Need

Here's the straightforward process I use when I need parts for an L59: Locate the serial number plate and record it. Take a photo if possible. Pull up the Woods L59 Belly Mower Parts Diagram on the CNH or AGCO parts site using that serial number. Identify the part numbers you need from the exploded view. Cross-reference any part numbers that look unfamiliar — sometimes the same component has been superseded. Check a few independent dealers for pricing and availability. If a part is discontinued, look for aftermarket equivalents or salvage yards. Tractor parts yards that specialize in vintage agricultural equipment sometimes have L59 decks and gearboxes in stock. If you're working on a budget, prioritize the gearbox rebuild. The deck components wear out slowly and are inexpensive. The gearbox is where a small problem turns into a catastrophic one. A $100 rebuild kit now prevents a $600 gearbox replacement later. That's not speculation — it's what I've seen repeatedly in the equipment I've worked on over the years.

The diagram is accurate for the serial range it covers. Beyond that, it's a tool that requires a little bit of interpretation. Treat it like one, double-check part numbers against your actual machine, and you'll save yourself a lot of wasted trips to the parts counter.
