Reading a Woodward Governor Manual Without Losing Your Mind

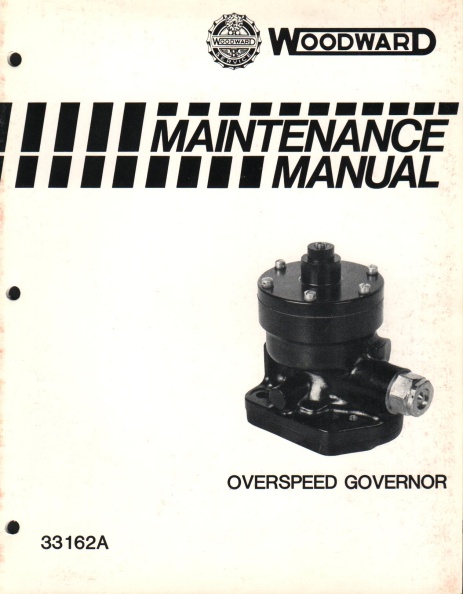

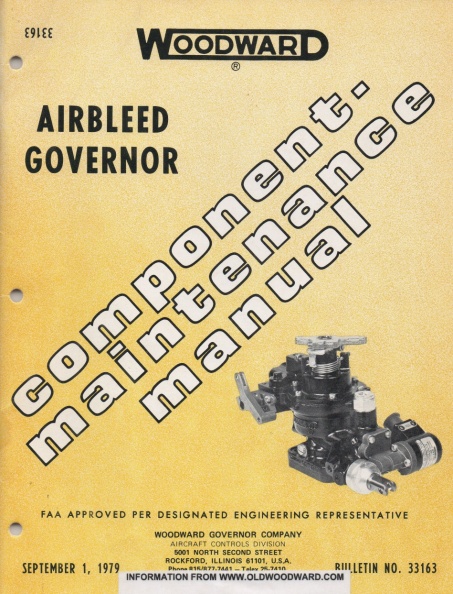

The Woodward Governor Manual is one of those documents people grab when something is already broken. You open it, flip through the pages, and suddenly you're drowning in torque specs, clearance measurements, and diagrams that assume you have a service bench you probably don't. I've spent more time than I care to admit cross-referencing parts drawings with actual hardware that refuses to match because someone modified it three years ago and never updated the paperwork. The official manuals live on the Woodward website now, organized by product family rather than by model number in any sensible way. You'll need the series designation first. PGIA, PD5, P5G, these are the ones showing up in most industrial generator applications. The legacy manuals from the 1990s and early 2000s are harder to track down. Third-party archive sites have them, but the formatting gets messy and pages occasionally go missing. I'd recommend photographing what you need from a working copy before you attempt any repair. Most people skip straight to the troubleshooting section, which is backwards. The manual is organized from installation upward, and understanding the assembly sequence is actually what makes the diagnostic sections make sense. I started reading them front to back a long time ago. It changed how fast I could pinpoint issues in the field.
What the Manual Actually Covers
A Woodward Governor Manual covers installation procedures, adjustment sequences, parts identification, and troubleshooting for a specific governor family. The adjustment sections are the most important and the most poorly understood. Droop, stability, load share, speed bias -- these aren't abstract concepts. They're physical settings that determine whether your generator tracks cleanly or hunts under partial load. The manual will give you starting values for each adjustment. Don't use them as final settings. Use them as a baseline, then tune from there. The factory settings assume ideal conditions: clean fuel, proper oil viscosity, no shaft play in the prime mover coupling, ambient temperature within specification. None of that is guaranteed at your site. One thing the manual doesn't emphasize enough is the relationship between mechanical and electronic components in hybrid setups. If you're running a PD5 mechanical governor on an older engine and adding an auxiliary electronic controller for load sharing, the interaction between the two systems isn't addressed in most chapters. I learned this the hard way on a 750 kW Caterpillar set in 2018. The mechanical governor was fighting the electronic controller because the speed sensor mounting position created a phase lag the manual never mentioned. The workaround was relocating the pick-up gear housing two positions clockwise on the timing gear cover, which eliminated the lag and stabilized the load share within acceptable tolerance. The manual doesn't cover that. Nobody does.
Tuning Without Guesswork
Here's what most people miss about governor adjustment. The stability potentiometer doesn't just damp oscillation. It changes the effective response time of the servomechanism, and cranking it too far toward stability will make the governor sluggish under rapid load changes. I've seen operators do this intentionally because they wanted to kill hunting, only to watch the frequency drop by half a hertz on a 500 kW step load. The fix isn't more stability. It's finding the right combination of stability and gain. Drop settings are equally misunderstood. A higher droop percentage means the engine will shed more speed as load increases, which is fine for standalone operation. For parallel operation, you need consistent droop across all units, and the manual will tell you to aim for 3 to 5 percent. That's correct in theory. In practice, you need to measure actual droop under load, not just set the screw and hope. I use a data logger on the engine control module and record speed at no load and at full rated load. The difference divided by rated speed gives you the real droop percentage. If it's outside the 3 to 5 percent range, something is wrong with the linkage, the actuator, or the calibration, and adjusting the droop potentiometer alone won't fix it.
Get the Full Details
Parts Identification and Common Pitfalls
The exploded parts diagrams in the Woodward Governor Manual are useful but incomplete. They show the standard configuration, not every variation that may exist on a unit built six months apart. I once ordered a replacement link assembly from Woodward, shipped it across the country, and opened the box to find the pin holes were spaced differently from the old part. The manual drawing looked identical. The part number was different, but the drawing didn't reflect the revision. I had to machine a new bracket to make it fit, which cost more than the replacement part itself. Another issue is seal and gasket compatibility. The manual lists part numbers for rebuild kits, but some kits contain nitrile seals while others specify fluoroelastomer depending on the production date. If you're working with biodiesel blends or synthetic lubricants, using the wrong seal material will result in swelling and failure within months. Check the kit revision against your governor's serial number before installing anything.
When the Manual Falls Short
There are situations where the Woodward Governor Manual simply won't help. Modified or repaired units are the biggest category. If someone has welded, drilled, or fabricated something on the housing or linkage, the manual's diagrams are useless. You need to measure everything yourself and create a reference that matches the actual hardware. Another limitation is cross-application knowledge. The manual covers one governor family in depth but says almost nothing about how it interacts with specific engine manufacturers' control systems. A PD5 on a Cummins might behave differently than the same PD5 on a MTU, even though the governor itself is identical. The differences come from engine flywheel mass, intake pulse patterns, and how the prime mover responds to sudden throttle changes. You learn this from experience, not from the manual. For units beyond the manual's scope, the Woodward technical support line is worth using. They won't walk you through a repair over the phone, but they can confirm part numbers and point you toward application engineering notes that aren't in the public documentation. Field service engineers who've worked on these systems for years also tend to know things the manual doesn't, so building relationships with them pays off.
Practical Approach to Using the Manual
Don't read it cover to cover before you touch the equipment. Open it to the section relevant to the problem you're solving. Read the procedure, then step away from the manual and look at the actual governor. Compare what you see with what the manual shows. If they don't match, figure out why before proceeding. That discrepancy is usually where the real issue lives. Take notes and photos during every service call. Build your own supplemental documentation that records actual measurements, modifications, and outcomes. The Woodward Governor Manual is a starting point, not the final word. The equipment in the field has its own history, and that history matters more than the printed page. Understanding how these governors actually behave under real conditions -- not just the ideal conditions described in the manual -- is what separates someone who replaces parts from someone who actually solves the problem. The manual gives you the foundation. Everything else comes from paying attention to what's happening on your specific installation.
