Working with V1000 Fault Codes Without Losing Your Mind
The Yaskawa V1000 is one of those drives that shows up everywhere. It is cheap enough to throw into a budget line and robust enough to actually survive the environment. But when it faults, the manual can feel like it was written for someone who already knows exactly what is going on. I have spent years wrestling with these units, and I can tell you that the fault list is not as straightforward as it should be. I once had a drive throwing an OC (Overcurrent) fault on every startup, no load attached. The manual said check the motor, check the wiring, check the ground. Nothing worked. Turned out the V1000 has a parameter called P05.03 that sets the overcurrent protection level, and someone had changed it from the factory default during some prior troubleshooting. The drive was tripping at about 60% of the actual current. I reset P05.03 back to 1.00 and the problem disappeared. This is the kind of thing the manual does not really stress enough.
Yaskawa V1000 Manual Fault Codes
Here is how the common faults actually behave in the field, not just what the PDF says. OC - Overcurrent This is the most common fault and the most misleading. Yes, it means overcurrent, but the drive measures this on the DC bus side during acceleration and during normal operation. If you see this on startup with no motor connected, it is usually one of three things: the U/V/W terminals are shorted somewhere, the motor itself is grounded, or P05.03 has been adjusted down. If the drive is tripping during acceleration, the acceleration time is too short for the load, or the torque boost is set too high. Try slowing the ramp up to 10 seconds and see if it clears. Also, make sure the motor lead length is not exceeding the recommended max. Long cables without a reactor will cause reflected wave issues that trip OC even when the motor current is fine.
OU - Overvoltage DC bus voltage exceeds the threshold. This happens during deceleration when the regenerative energy has nowhere to go, or when the incoming line voltage is too high. A 480V drive on a 50Hz system with a line voltage of 510V or higher will trip OU during normal operation. Check your line voltage first, then check if the deceleration time is too short. Adding a braking resistor is the standard fix, but if you are running a fan or pump application, the natural load deceleration should be enough. If it is not, your load moment of inertia is larger than you think. UV - Undervoltage
Get the Full Details
DC bus undervoltage. Usually means the incoming power is low or the drive is being started into a weak supply. I have seen this happen when a large welder or heater cycles on the same transformer feeder as the drive. The drive sees the sag and faults before the welder even finishes its cycle. There is no parameter to suppress this fault. The fix is either moving the drive to a different circuit or adding an external DC choke to smooth the bus voltage. Some installers try raising the UV threshold parameter, but this is not recommended because the drive needs that undervoltage protection to survive. OH - Heat Sink Overtemperature The heatsink temperature has exceeded the limit. This is almost always an airflow problem, not a component problem. Check the fan, check the filters, check that nobody has stuffed the enclosure with unused conduit. I had one case where the drive was mounted in a cabinet with zero clearance above it, and the hot air was recirculating right back over the heatsink. The ambient temp in the cabinet was only 35C, which should have been fine. Moving the drive and leaving six inches of clearance solved it immediately.
GF - Ground Fault This one is tricky because the V1000 can have false GF trips from cable capacitance, especially with long motor leads. The built-in ground fault detection is current-based and uses a zero-sequence CT inside the drive. With cable runs over 100 feet, the capacitive coupling to ground can register as a fault even when nothing is actually grounded. The workaround is to increase the GF delay time through parameter P05.05. Setting this to 100 milliseconds or more eliminates most false trips on long runs. If you have a real ground fault, it will still trip, just with a slight delay. This delay is negligible compared to the damage a ground fault causes in the first few milliseconds. EF - Earth Fault during Insulation Testing
A lot of people forget this one. If you megger the motor or cables while the drive is connected, the drive will interpret the test voltage as a ground fault and may be damaged. Always disconnect the U/V/W cables from the drive before doing any insulation resistance test. I have replaced two drives this way because someone assumed the built-in protection was sufficient. It is not. CF - Current Sensor Failure This is a hardware fault, usually meaning the current sensor board inside the drive has failed or lost its calibration. The fix is replacement of the drive or sending it out for service. There is no parameter reset for this one. I have seen it happen more often after a power surge or lightning event nearby. If your drive is older and starts throwing CF randomly, the sensor capacitors on the control board may be degrading.
Stall Prevention The V1000 has both Stall Prevention during Acceleration and Stall Prevention during Operation. These are not faults by default, but they can be configured to fault. If you have them set to fault and the drive keeps tripping, the issue is your application demand, not the drive. Reduce the torque boost, lengthen the acceleration time, or verify that your load is not mechanically binding. I once spent two days chasing a stall fault only to find the pump impeller had a piece of debris wedged in it. The drive was doing exactly what it was supposed to do. When you are pulling Yaskawa V1000 Manual Fault Codes from the documentation, remember that the manual gives you the what, not always the how. The how comes from experience. The parameter table is your friend, but do not ignore the physical checks. Voltage, airflow, cable length, and motor condition will solve more problems than any parameter change ever will.

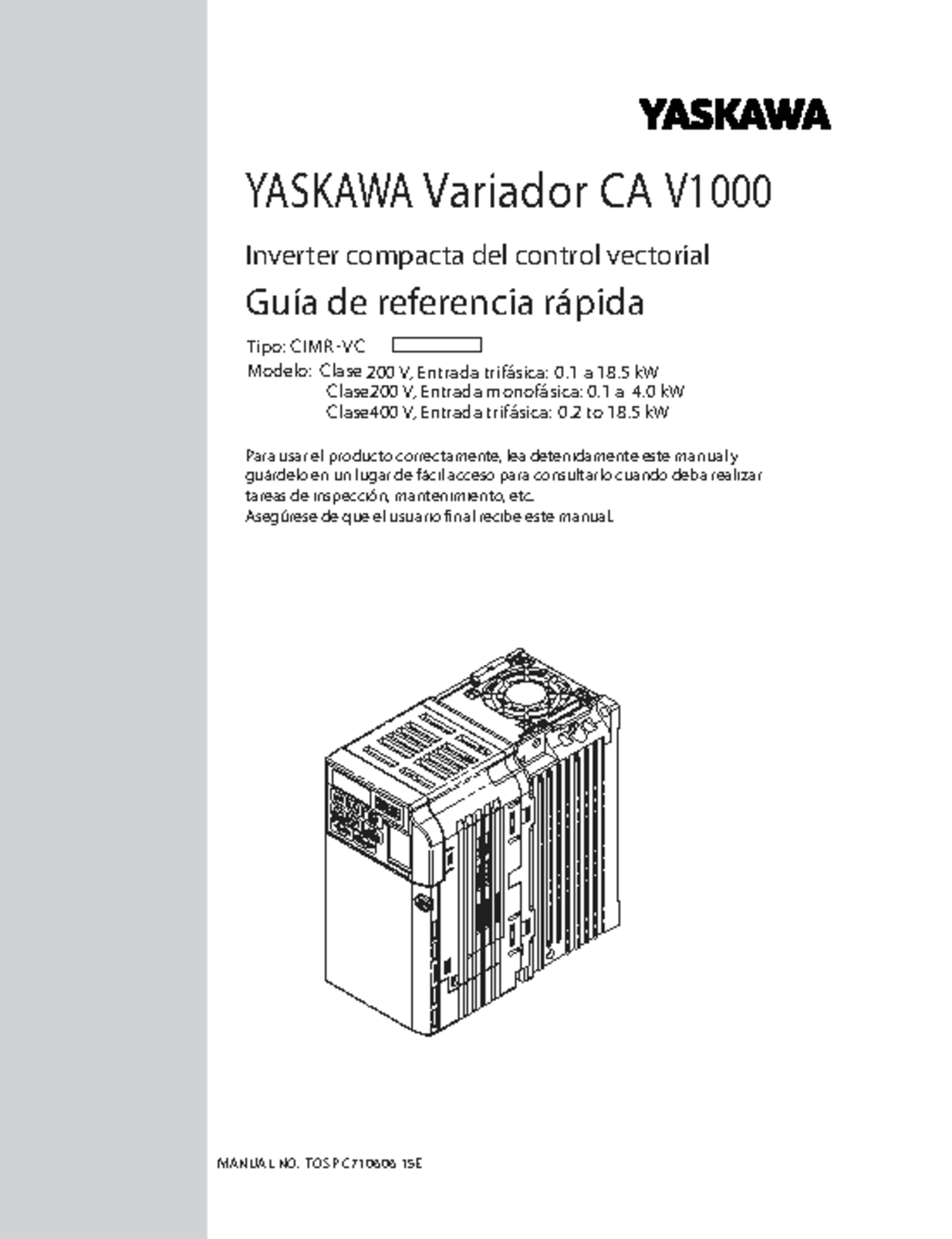

The official manual can be found on Yaskawa's website under the V1000 product support page. The PDF version is free and does not require registration. Make sure you grab the revision that matches your drive's software version, which you can find on the nameplate or in parameter d99.
