Setting Up the Zeny 10x30 Canopy Tent
The Zeny 10x30 is a frame-style event tent, not a pop-up. You assemble it piece by piece, and if you try to treat it like one of those instant shelters, you will waste an hour and likely break something. I have set up and taken down probably two dozen of these over the years, and the main thing people get wrong is the order of operations on the roof poles and the side walls. Here is how it actually works. You start with the legs. Each leg is a two-piece telescoping tube that locks with a pin. Push the inner tube all the way up, make sure the pin clicks. Do not strip the pin threads forcing them home. I learned that the hard way on a tight job where I was missing a spare pin for a whole afternoon. Assemble the corner joints first. The zinc-plated steel corners accept the leg tubes on the bottom and the top ring frame on the upper section. Slide the top frame rings onto the corner posts before you raise the legs. Trying to thread a ring over an already-raised leg is awkward and unnecessary work.
Once the four corners are standing, you lay the main roof truss tubes across the top. These are the long 1.8-inch diameter tubes that run the length of the tent. There are three main cross bars. Slide each one through the grommets on the roof fabric — do this before you bolt anything down. The fabric should lie flat against the frame, not bunched up. If you pull it taut as you go, you will save yourself a lot of rework later. The next step is securing the roof fabric with the plastic clips and zip ties that come in the kit bag. Use the clips at every grommet point. I used to skip the ones in the middle sections thinking they were optional. They are not. Wind will lift the fabric right off those unclipped sections within minutes. For the sidewalls, the same principle applies. Roll out the wall panel, align the grommets with the frame, and clip them in from the bottom up. The side frames use the same telescoping leg system but at half height. Secure the wall base to the ground with the stakes that come in the kit. The included stakes are decent for soft ground but I switch to screw-in anchors in hard or sandy soil. The standard stakes pull right out in either condition.
One thing the manual does not emphasize enough: weight the four corners with sandbags or water barrels before you tension the final guy lines. A 10x30 tent has a massive sail area and the frame will walk sideways if you do not anchor the base first. I once had a tent shift nearly two feet down a paved lot because I tightened the roof before the corners were weighted. Took me forty minutes to reset everything. Tension the guy lines evenly. All four corners should have consistent pull. Over-tightening one side will bow the frame outward. The tubing is lightweight steel, not heavy duty. It bends if you force it.
Get the Full Details
Common problems and what to do about them
The most frequent issue is a misaligned grommet row on the roof fabric. If the fabric does not seat flush along one side, stop and check the cross bar placement. Usually the problem is that one bar is rotated or shifted and the grommets will not line up. Flip the bar, realign, and continue. Another issue is the door flap zippers sticking. The included zippers are budget grade. Apply a small amount of paraffin wax or silicone spray to the teeth before first use. It makes a noticeable difference and prevents torn fabric when you pull a stuck zipper later. If you are setting up on uneven ground, the frame will twist. Use adjustable leveling feet or stack washers under the leg bases. I always carry a small tube level in my kit. A tent that is out of plumb by more than an inch over the 10-foot width will develop stress points in the fabric seams within a few hours of wind exposure.

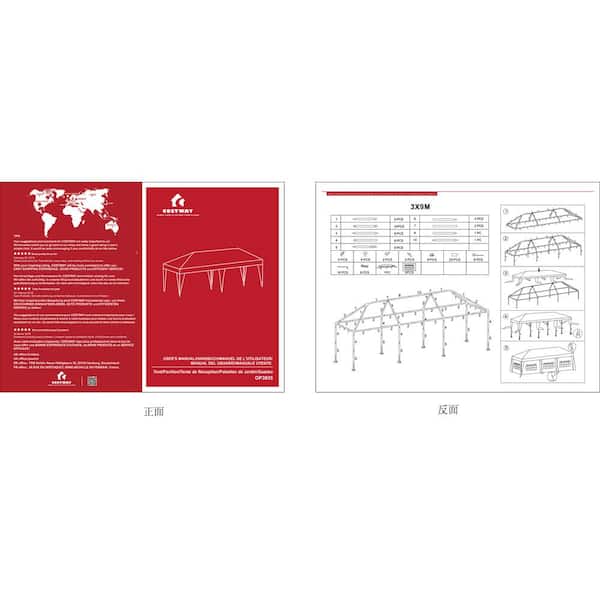

What the Zeny 10x30 Tent Instructions leave out
The official instructions assume a crew of at least two people. It can be done alone but it takes significantly longer and you will need temporary bracing — a rope tied to a nearby object, a sandbag holding a leg in place — to free your hands for the next step. Budget an extra hour for solo setup compared to a two-person crew. The weight capacity for hanging decorations or lights from the ceiling frame is minimal. The roof tubes are rated for the fabric load only. If you need to hang anything, install a separate internal suspension line rated for your intended load. Do not clip straps directly to the 1.8-inch frame tubes and expect them to hold more than fifteen or twenty pounds before the tube deforms. For long-term outdoor use, this tent is not ideal. The zinc plating on the frame will rust within a season or two if left exposed to rain without treatment. A light coat of clear spray lacquer on the joints after assembly will extend the life considerably. I reapply it every other year and the frames look fine after five-plus seasons.
Storage and teardown notes
Always store the tent completely dry. Moisture trapped in the fabric causes mold and weakens the coating. I have seen tents stored damp for even a couple of days come back with permanent mildew spots that no amount of cleaning removes. Lay the fabric out flat after the frame is down and let it air for at least two hours before rolling. Label the bags for the cross bars, leg tubes, and hardware with a marker. The kit comes with multiple similar-looking poly bags and pins fall out during transport if they are not secured. I tape each bag shut and write the component name on it. Saves about ten minutes per setup on the part-finding stage.
