How to Draw and Read a Zero Economic Profit Graph
Most people draw this wrong the first few times. The confusion isn't about the concept itself—it's about which curve goes where and what the intersection actually means on the page. Here is how it works, what to watch out for, and where the common mistakes hide.
Zero Economic Profit Graph Setup
Start with a standard graph. X-axis is quantity. Y-axis is price or cost. You need five lines total, and getting them labeled correctly matters more than anything else.
The demand curve is horizontal—that's your P = MR = AR line. In perfect competition, the firm is a price taker, so this line never slopes. Plot it at the market price.
Then draw the marginal cost curve. It should be J-shaped, cutting through the minimum points of both average cost curves. That's not decorative—it's a mathematical requirement. MC intersects ATC and AVC at their lowest points. If yours doesn't do that, redraw it.
Average total cost goes next. U-shaped. This is the one most people mess up by making it too symmetric or placing the minimum at the wrong quantity relative to the price line.
Average variable cost sits below ATC. Same U-shape, same general quantity range, but shifted downward by the distance of AFC at every point.
Average fixed cost isn't drawn on the main zero economic profit diagram often, but you should know it's there. It's the vertical gap between ATC and AVC at every quantity. AFC declines continuously—it's a rectangular hyperbola.

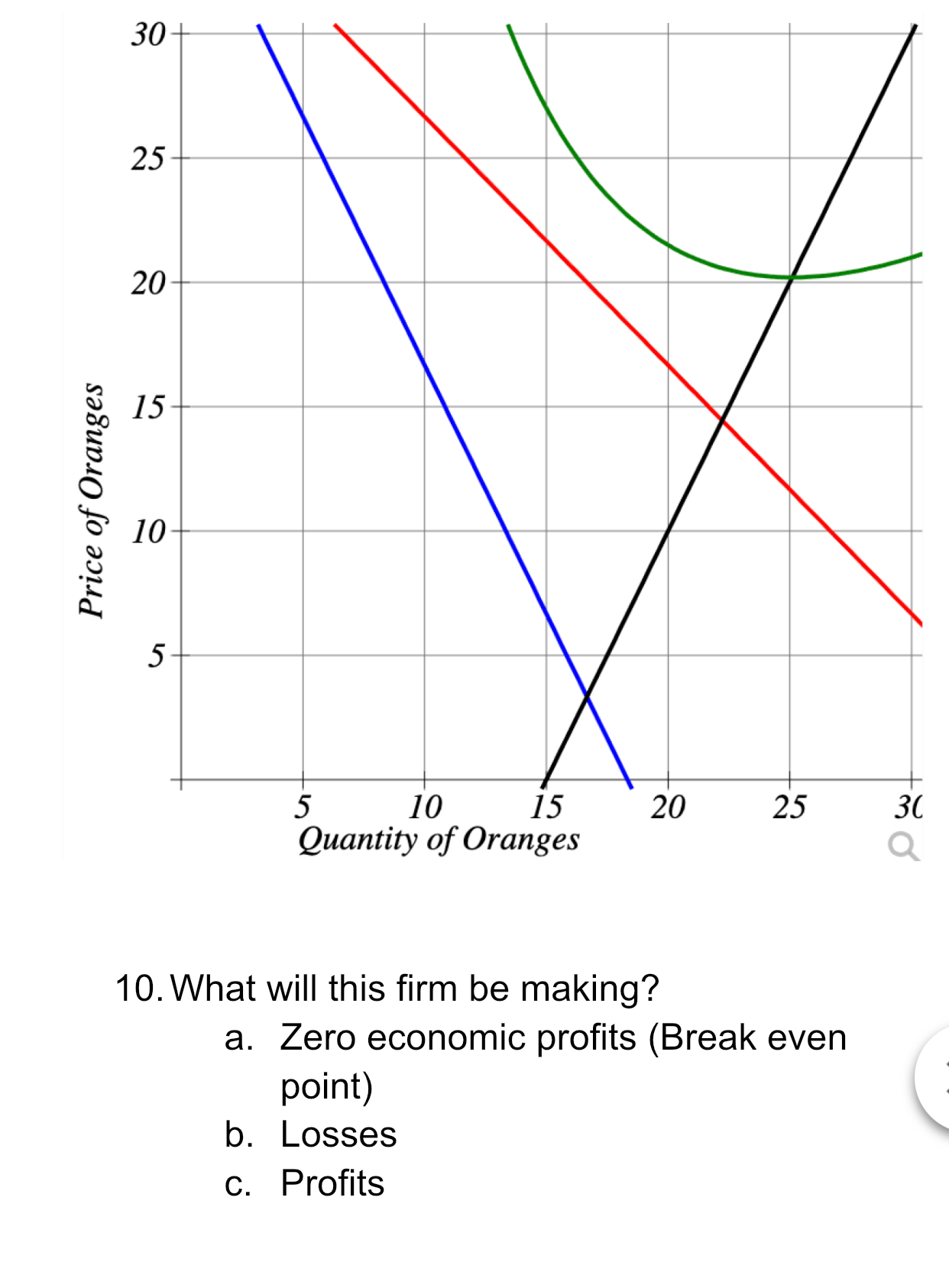

The key intersection is where MC crosses the horizontal price line. That quantity is your profit-maximizing output. At zero economic profit, this happens to be exactly where MC also crosses ATC. In other words, the firm produces at the minimum of the ATC curve, and the price equals that minimum ATC.
What that looks like on paper: the horizontal price line is tangent to the bottom of the ATC U. One point of contact. That single tangency is the entire condition for zero economic profit.
I've seen students draw the price line intersecting ATC at two points and call it zero profit. It's not. Two intersections mean the firm is either making positive or negative profit at different output levels. Zero economic profit only exists at that exact tangency point. I learned this the hard way grading midterms—I spent twenty minutes trying to figure out why three different students had identical mistakes before realizing I'd been using a sloppy hand-drawn reference myself.
Reading the Graph for Different Scenarios
The beauty of this setup is that you don't need three separate graphs. You need one with movable price lines.
When price rises above minimum ATC, the horizontal line cuts through the ATC curve at two points, creating a region between the price line and the ATC curve. That enclosed area is economic profit. Height is profit per unit (P minus ATC at that quantity). Width is quantity sold. Multiply them.
When price falls below minimum ATC but stays above minimum AVC, the firm covers variable costs and some fixed costs. It's making an economic loss, but it should still produce in the short run. The loss per unit is the gap between ATC and price at the MC-intersection quantity.
When price drops below minimum AVC, that's the shutdown point. The firm loses less by closing than by operating. The MC curve still intersects the price line somewhere, but operating adds variable costs that revenue can't cover. Shut down immediately.
Here's something textbooks rarely emphasize clearly: zero economic profit in this model includes normal profit. It's not the absence of profit—it's the absence of
excess profit. The firm is covering every opportunity cost, including the owner's time and capital at their next-best alternative rate. If you're drawing this for an exam, make sure you write that distinction down. Points get taken off for saying "no profit."
I once consulted for a small manufacturing firm that was technically profitable on their books but had zero economic profit when you accounted for the owner's forgone salary and the lease alternative on their building. They were running a hobby, not a business. The graph makes this visible in about thirty seconds if you have the right cost data.
Common Pitfalls
Drawing MC before ATC and AVC. It should come last. The shape of MC is constrained by where it needs to hit the minimums of the other two curves. Build the U-curves first, then sketch MC through their low points.
Using the wrong quantity. Always find Q where P = MC, then go up to ATC at that Q. Don't pick a quantity just because it looks like the minimum of ATC—the tangency condition handles that automatically, but students frequently eyeball it wrong.
Confusing accounting profit with economic profit. Accounting profit ignores opportunity costs. The zero point on this graph is higher than zero accounting profit. A student who conflates the two will misread the entire diagram.
When you have incomplete cost data, which happens more often than you'd think, you can approximate AVC by dividing total variable cost by quantity and ATC by dividing total cost by quantity. But if you're working from a revenue and expense statement rather than a cost function, you're already in estimation territory. The graph becomes qualitative, not quantitative. I've had to do this with quarterly financials for a client—they didn't have marginal costs by product line, only aggregated. We plotted what we could and flagged the uncertainty in the notes.
What This Graph Can't Tell You
It assumes perfect competition. If your market has any differentiation, brand loyalty, or barrier to entry, the demand curve isn't horizontal and this diagram doesn't apply directly. Monopolistic competitors and oligopolies need a different framework.
It's a snapshot model. It shows one price, one cost structure, one moment in time. Real firms adjust inputs, renegotiate contracts, and face shifting demand. The graph captures the equilibrium logic, not the dynamics of getting there.
Long-run adjustments aren't on the graph. Entry and exit of firms shift market supply, which shifts the price line up or down until remaining firms sit back at zero economic profit. You need a second, larger-market graph for that. Beginners often try to cram both timeframes into one diagram and end up with something that's neither correct nor useful.
If you need to download a clean version for your notes, searching for "Zero Economic Profit Graph PNG" or "perfect competition long run equilibrium diagram PDF" will pull up standard textbook figures. Any microeconomics resource site has them. They're all essentially the same image with different label placements, so pick the one your professor uses for consistency.
