Why the factory 2001 Toyota Camry Repair Manual is worth finding
The 2001 Toyota Camry is simple enough that most repairs can be done at home, but it still has enough quirks to make guessing expensive. The factory repair manual for this model covers everything from basic maintenance to major overhauls. It gives you torque specs, wiring diagrams, and procedures that third-party guides often skip or approximate. I picked up a used factory copy a few years ago for an old XSE my brother was restoring. What surprised me was how thorough the section on the 2.4L 2AZ-FE engine was. This engine is known for excessive oil consumption at high mileage, and the manual doesn't shy away from the real causes — worn piston rings, ring land damage, and the infamous oil control ring coking issue. The dealer service bulletins referenced in the manual give you the actual fix process, including the correct ring set part numbers and the ring gap specification that matters when you're reassembling.
Getting a 2001 Toyota Camry Repair Manual

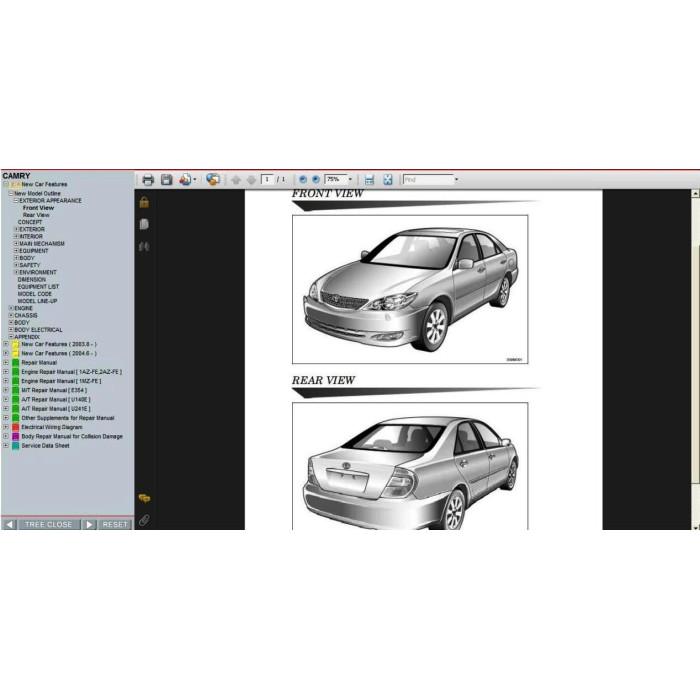

The factory manual was originally sold as a two-volume set — one for the overall vehicle and one for the engine/transmission. You can find PDF versions online through forums like Toyota Nation and the Camry forums. Some vendors sell printed copies on eBay or through Hagerty's manual repository. The electronic versions usually come from the original TOYOTA Service Information System (SIS), which was the digital platform Toyota used before switching to TIS. These files tend to be large — expect around 200 to 400 MB per volume — because they include thousands of pages of diagrams and photos. If you're looking for something more affordable, Chilton or Haynes manuals cover the 2001 Camry adequately for basic jobs. They miss things like the specific diagnostic trouble code flowcharts and the updated service bulletins, but they get the common repairs right. For anything involving the transaxle or ABS system, stick with the factory manual.
What's actually inside the manual
The factory manual is organized by system, not by symptom. That means you need some idea of what you're working on before it helps you. Each section follows a standard Toyota format: removal and installation procedures, torque specifications, inspection criteria, and troubleshooting charts. The engine section includes the complete timing belt procedure, which is where most people screw up. The 2AZ-FE uses a timing belt with an interference design. If the belt slips or breaks, valves hit pistons. The manual shows the correct cam timing marks, the proper tensioner procedure, and the critical note about checking the cam lobes for wear after the belt is off. I learned that last point the hard way. Replaced the belt on a 198,000-mile Camry, reassembled everything, and the engine ran rough on cylinder three. Turned out the cam lobe had worn enough that the valve wasn't closing fully, but the timing marks on the manual didn't account for that kind of edge-case wear. The fix was replacing the intake camshaft, which the manual lists as a separate procedure with the correct bearing clearance specs.
Get the Full Details
Common repairs covered well
Some jobs in this car are straightforward. Brake pad and rotor replacement follows a standard procedure. The suspension components — struts, control arm bushings, sway bar links — are well documented with torque values and removal sequences. The manual shows you the proper way to compress the strut spring and the correct order for tightening the suspension bolts, which matters because the rubber bushings need to be loaded at ride height, not lifted on jack stands. The transmission section is where the manual really pays off. The 4-speed automatic (U441E) is basically bulletproof, but when it does go bad, you need to know the correct fluid type, the pan bolt torque sequence, and the filter replacement procedure. The manual specifies Toyota Type T-IV fluid, and using the wrong fluid — something people do out of convenience — is a common reason these transmissions develop shudder around 80,000 miles. The fluid change procedure in the manual calls for a partial drain and refill, not a full flush, because the converter holds about a quart and agitating it with a pressure flush can push debris into the valve body.
Where the manual falls short
Don't expect the factory manual to tell you every shortcut or workaround. It's written for dealership technicians following procedures exactly. If you've removed the same bolt ten times and know that using a 3/8 drive instead of a 1/2 makes your life easier, the manual won't mention it. It also doesn't always flag which fasteners are one-time-use. The 2001 Camry has several aluminum engine mount bolts and some crucial head bolts that Toyota specifies for stretch inspection. The manual tells you the torque spec but sometimes leaves it to the technician to know that a stretch gauge is the only reliable way to check them. Another gap: the electrical section assumes you have a wiring diagram readout skill and a multimeter. The diagrams themselves are clear, but there's no beginner tutorial on how to trace a circuit from a fuse box through a connector to a sensor. If you're new to automotive electrical work, the manual alone won't teach you that. Pair it with a basic wiring diagram guide, and you'll be fine.
Quick reference: key specs you'll need
The manual lists engine oil as 5W-30, capacity about 4.4 quarts with filter. Coolant is Toyota Super Long Life Coolant or a comparable ethylene glycol formulation mixed 50/50 with distilled water. Transmission fluid capacity for a drain and refill is roughly 3 quarts, full depth is about 7.4 quarts. Brake fluid is DOT 3. Tire pressure for the 2001 Camry SE and XLE trims is typically 27 psi front and rear, but check the sticker on the driver's door jamb for your exact trim and tire size. Spark plug gap is 0.043 inches for the 2.4L, and the plug itself is a standard Iridium type that lasts well past 60,000 miles if the ignition system is healthy. Getting the factory manual saves you from buying individual service information online piecemeal. Most repair shops charge $30 to $50 per hour of labor for diagnostics that the manual walks you through for free. The initial cost of finding or buying the manual pays for itself after the first major job.
