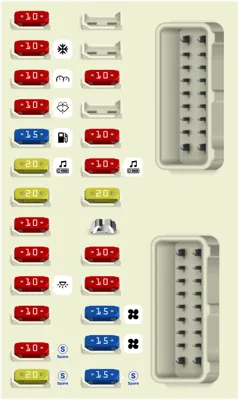

The 2008 Nissan Sentra Fuse Layout spans two main boxes, and that's about as straightforward as it gets. One is in the engine bay, the other is on the driver's side dashboard. The covers have diagrams printed on them, but let's be honest — those diagrams get worn, cracked, or completely illegible after a few years in the sun. I've pulled fuses out of Sentras where the cover had more fading than information. Engine compartment fuse box: This is a black rectangular box mounted near the battery on the driver's side of the engine bay. The cover has a diagram and a small window you can flip up to access a couple of the higher-amperage fuses. Inside you'll find the main fuse, horn, headlights, A/C clutch, cooling fan, and the relay block that's integrated into the same assembly. The relays here are numbered — they're standard NISSAN-branded relays and they're interchangeable between many of the slots. Interior fuse box: Located on the left side of the dashboard, behind a panel that removes by unclipping. You don't need tools for this — it's just plastic clips. Inside are fuses for the radio, power windows, door locks, instrument cluster, rear defogger, and various accessory circuits. This is where most people end up when something electrical stops working.
How to Diagnose a Blown Fuse Without Wasting Time
Remove the fuse and hold it up to the light. The metal link inside should be continuous. If it's broken, the fuse is blown. Simple. The harder part is figuring out why it blew. Here's what most people miss: a fuse that blows immediately when you install a new one is almost always a short in the wiring, not a component failure. If it blows after a few minutes or only when a certain system is running, that's an overload — something is drawing more current than the circuit is rated for. I spent two hours chasing a flickering interior light on a '08 Sentra that kept blowing the 10A dome light fuse. Turned out the glove box light was staying on because the switch inside the glove box door was cracked and stuck closed. The parasitic draw from the dome and glove box lights together was enough to trip the fuse over time. Not a short. Just too many things on one circuit. The relay block in the engine bay is another place people get confused. Some of those relay positions are empty. The diagram on the cover tells you which ones are populated and what each one does. The HORN relay, for example, is in a specific slot — if you move it, the horn won't work and you'll waste time swapping fuses in the interior box looking for the problem.
Common Failure Points on This Car
The radio fuse blows more often than you'd expect. Not because of a short, but because aftermarket head units tend to pull more current than the factory stereo did. The stock radio runs fine on a 10A or 15A fuse depending on the market. An aftermarket unit with a built-in amp may need that circuit upgraded, and people usually don't realize that until they're replacing the same fuse three times in a month. The power window fuses, specifically the main driver's side one, are another common complaint. What's interesting about the Sentra's window system is that the passenger windows are controlled through the driver's master switch. If all four windows stop working but the fuse is good, check the driver's switch first — it's a known failure point on these cars. The switch contacts wear out and lose connection. I've replaced fuses on this circuit multiple times before realizing the real issue was the switch assembly itself.
Get the Full Details
What the Fuse Diagram Won't Tell You
The covers show you amperage ratings and basic function labels, but they don't show you wire colors or connector pinouts. If you're doing real troubleshooting — not just swapping a blown fuse — you're going to need a wiring diagram. Nissan's official service manual has them, and they're available through subscription services like AllData or Mitchell1. Free diagrams exist online but the quality varies. Some are scanned from the manual and readable. Some are someone's handwritten notes that are impossible to follow. Another thing the diagram doesn't tell you: some circuits share fuses. The rear defogger and the outside mirrors share a circuit in some trim levels. If your defogger stops working, check the mirror heaters too — or vice versa. A single blown fuse can knock out two unrelated functions.
Practical Tips That Actually Help
Always replace a blown fuse with one of the same amperage. Don't go higher "just to be safe." A 20A fuse in place of a 15A won't protect your wiring if there's an actual fault, and you'll end up melting a wire harness instead of saving yourself ten seconds of diagnostic time. Keep a spare fuse in your glove box. The Sentra uses standard blade-type fuses — 10A, 15A, 20A are the most common sizes you'll need. A dollar pack from any auto parts store will last you years. If you're removing the interior fuse box cover and the clips feel tight, don't force it. These plastic clips break easily once they're five or six years old. I've seen it happen every time. Use a flat trim tool or even a plastic spade instead of a screwdriver. The last thing you want is to lose half the clips and then have to source a replacement cover.
The engine bay box is exposed to heat and moisture. Corrosion on the fuse terminals is more common than people realize. If a fuse fits but doesn't make good contact, try wiggling it gently while the circuit is active. I had a customer whose cruise control wouldn't engage because the fuse for the brake switch was slightly corroded in its socket. The fuse itself tested fine. The contact resistance was just enough to drop voltage under load.
When This Approach Stops Working
Fuse diagnosis only gets you so far. If you've checked every relevant fuse and the problem persists, you're dealing with something upstream — a bad relay, a faulty switch, a broken wire, or a module communication issue. The 2008 Sentra doesn't throw a lot of useful trouble codes for simple electrical problems, and the OBD2 port won't help you much with things like a dead power window or a non-functioning horn. At that point you need a multimeter and a wiring diagram, not another spare fuse. If the fuse box itself is damaged — cracked housing, melted terminals, burned connectors — replacing the box or repairing the harness is the only real fix. You can jumper around it temporarily, but that's a workaround, not a solution. The engine bay box in particular is vulnerable to coolant leaks from the heater core or radiator, which can drip right onto the fuse block over time. I'd recommend keeping the original cover from each fuse box as a reference even after you swap in new ones. The aftermarket replacements sometimes have worse printing or missing labels. Your original cover, worn as it is, is probably more accurate than the new one.
