Understanding the 3-Line Primer Bulb System

A 3-line primer bulb is a small rubber chamber on small engine carburetors that lets you manually pump fuel into the intake before starting. It's found on chainsaws, brush cutters, snow blowers, and similar equipment with two-stroke or small four-stroke engines. The three lines serve distinct purposes: one feeds fuel from the tank to the bulb, a second pushes fuel from the bulb into the carburetor intake, and a third acts as a return line for excess fuel flowing back to the tank. I spent three years working on outdoor power equipment before I stopped guessing which line was which and actually started drawing the setup out. Most people reverse the feed and return lines during reassembly and then wonder why their engine floods or won't start at all. The diagram below shows the standard configuration.

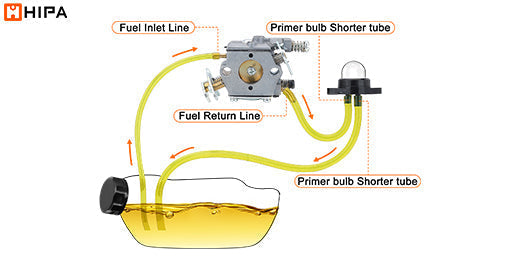

3 Line Primer Bulb Diagram

[Fuel Tank] ---(line 1: inlet)---> [Primer Bulb] ---(line 2: outlet to carb)---> [Carburetor] | [Primer Bulb] ---(line 3: return)---> [Fuel Tank] The bulb itself is just a flexible rubber diaphragm. When you squeeze it, fuel gets pushed through. When you release it, the bulb reforms and draws more fuel in from the tank through the inlet line. The return line keeps the system from pressurizing too much and allows fuel to cycle even when the engine is running, which helps keep vapor from forming in the lines. Here's something most diagrams don't tell you: the ordering of those three lines matters more than people realize. On many Echo and Stihl engines, the inlet and return lines are the same diameter tubing, which means you can hook them up backwards without any visible mismatch. I had a customer bring in a Stihl MS 250 that ran fine for two minutes and then died. Turns out the return and inlet were swapped. The bulb still pumped, but the carb was getting starved because the flow path was effectively blocked by the internal check valve orientation in the bulb housing. Flipping those two lines fixed it immediately.

When you're replacing a primer bulb assembly, the gaskets between the bulb housing and the carburetor body are easy to overlook. Those are paper or rubber seals that prevent air leaks. An air leak on the intake side of a carburetor will cause a lean condition that sounds like the engine is trying to start but can't catch. I always replace those gaskets even if they look fine, and I torque the housing screws in a cross pattern. Over-tightening warps the aluminum housing on cheaper engines and cracks the plastic ones. Finger-tight plus a quarter turn with a wrench is plenty. If you're working on an engine where the fuel lines are brittle or cracked, don't force old tubing off the carburetor jet or tank nipple. Heat it gently with a heat gun or by pouring warm water over it. I once snapped a tank nipple off a Homelite weed trimmer because I yanked a hardened line hard enough to take the plastic threading with it. That ended up being a $40 replacement tank when a five-minute warming job would have saved it. The main weakness of the 3-line primer bulb system is that the rubber degrades over time, especially with modern ethanol-blended fuel. After about five to seven years, the bulb gets hard and stops holding shape properly. You'll notice it doesn't refill between squeezes or stays collapsed after you let go. Replacement kits are available for most common engines and cost between $8 and $25. The process usually takes about 20 to 30 minutes if you're careful with the gaskets and line labeling.

One edge case worth noting: some manufacturers route the return line through a filter or check valve inside the tank or near the carb inlet. If your diagram shows a T-junction or an in-line component on the return path, don't skip it. I learned that the hard way on a Poulan Pro chainsaw where the return line had a small mesh filter that clogged with old fuel residue. The engine ran rich and smoked until I traced the return line back and found the blockage. Clean or replace that filter when you do a bulb swap. Not every small engine uses a 3-line setup. Some use a 2-line system where the primer bulb doubles as a pulse chamber for the fuel pump, and the return is internal. Others use a single-line system with a mechanical fuel pump driven by crankcase pressure pulses. If your engine doesn't have a visible primer bulb at all, this guide doesn't apply to it. Check your engine model number and look up the specific carburetor diagram before assuming a universal fit. For a printable version of the diagram, most equipment manufacturers post exploded view diagrams on their support sites. Honda, Stihl, Husqvarna, and Echo all have them. Search for your model number plus "exploded view carburetor" and you should find the official schematic within the first few results. Those official diagrams show the exact line routing for your specific engine, which is worth more than any generic guide since the line colors and connector types vary between manufacturers.
