Replacing parts in audio amplifiers is mostly about matching specs and understanding how the circuit behaves under load

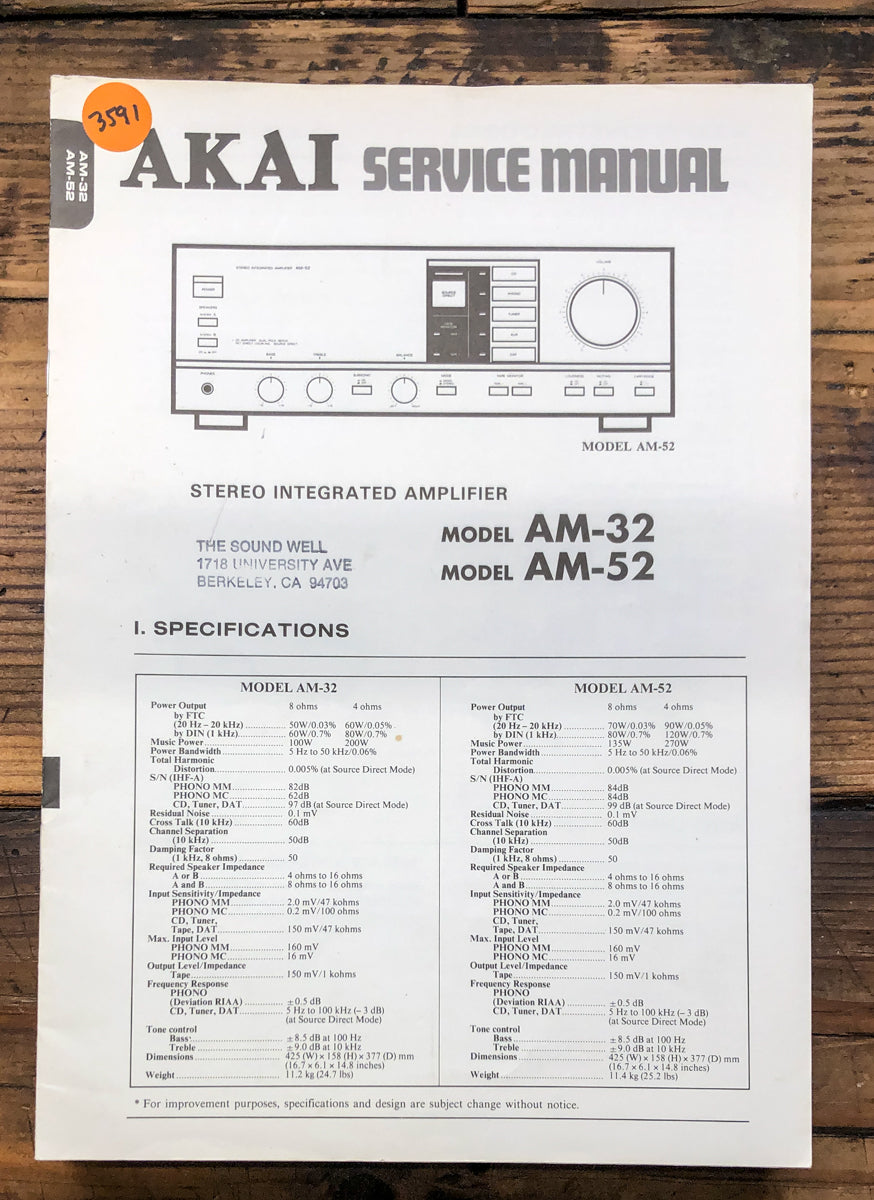

I have spent years working on everything from cheap Class D boards to vintage tube designs, and the process rarely goes smoothly the first time. You open a faulty amplifier, look at the schematic, and suddenly realize the part you need is either obsolete, physically different, or just slightly off in a way that does not show up on paper. This happens more often than most people expect, which is why having a reliable Audio Amplifier Procedure Manual Replacement Parts resource matters. Start by pulling the amplifier apart and identifying every component that needs attention. Power transistors, MOSFETs, electrolytic capacitors, and fuse resistors are the usual suspects. Note the part numbers printed on them before removing anything, because once the old components are gone, finding exact matches becomes significantly harder. The manufacturer may have updated the design mid-production without changing the service manual. I ran into this exact problem with a Yamaha receiver from 2014 where the replacement power transistors had a different thermal resistance value than the originals, causing the bias current to drift after about two weeks of use. The workaround was adding a small heat sink to the replacement devices and re-measuring the quiescent current at regular intervals until it stabilized.
Common replacement categories and what to watch for
Electrolytic capacitors are the most frequently replaced component. They degrade over time, especially in high-temperature environments, and their capacitance drops well before they fail catastrophically. When replacing them, match the voltage rating at minimum and try to use low-ESR types if the original circuit depends on fast charge-discharge cycles. A 100µF 25V capacitor might physically fit, but if the ESR is three times higher than the original, the power supply filtering could become inadequate and introduce audible hum. Power transistors and MOSFETs require more careful consideration. The replacement device must handle the same current and voltage ratings, but thermal characteristics matter too. I recently replaced MOSFETs in a Crown amplifier where the new devices had a slightly higher on-resistance, which seemed fine initially but caused the output stage to run warmer than expected. The fix was improving airflow around the heat sinks and monitoring temperature during extended operation. Fuse resistors and current-sensing resistors are often overlooked. These components set the bias point and protection thresholds for the amplifier. Using a resistor with different tolerance or power rating can shift the operating point enough to cause distortion or trigger protection circuits prematurely.
When the procedure gets complicated
Sometimes the replacement part is physically compatible but electrically incompatible, and this does not show up in a spec sheet. I encountered this with a Nakamichi amplifier where the replacement op-amps had the same pinout but different input bias current specifications, causing offset voltage issues that manifested as a faint hum only at low volumes. The solution was adding a trimmer potentiometer to adjust the offset and measuring it with a multimeter across the output terminals. Counter-intuitive insight: A higher-quality replacement part is not always better. I replaced capacitors in a McIntosh amplifier with premium audio-grade units that had lower ESR than the originals, but the feedback network became unstable and the amplifier oscillated at ultrasonic frequencies. The fix was reverting to capacitors with ESR values closer to the originals and adding a small snubber network to stabilize the circuit. Another common pitfall: People assume that matching part numbers is sufficient, but manufacturers frequently update designs without changing the part number. I found this with a Marantz amplifier where the replacement power supply capacitors had the same capacitance and voltage rating but different ripple current specifications, causing the power supply to sag under heavy loads. The workaround was measuring the voltage ripple with an oscilloscope and using capacitors with higher ripple current ratings.
Get the Full Details
Downsides and limitations
This approach has several bottlenecks. Finding exact replacement parts for vintage amplifiers can take weeks or even months, especially for proprietary components that are no longer manufactured. Some amplifiers use custom-designed transformers or inductors that cannot be easily replaced with off-the-shelf parts. In these cases, repairing the original component or finding a donor unit is usually the only viable option. Blunt truth: Replacing components does not always fix the underlying problem. I worked on a Sony amplifier where the replacement power transistors were installed correctly, but the issue was actually in the feedback network, causing distortion that persisted after the replacement. The fix was tracing the signal path and replacing several older capacitors in the feedback loop that had drifted out of specification. Alternative recommendation: If the amplifier is under warranty or the replacement parts are unavailable, sending it to an authorized service center is usually the safest option. They have access to OEM components and technical bulletins that are not publicly available. For vintage or hard-to-find amplifiers, joining enthusiast forums and checking secondhand markets is often the most practical approach.
Practical tips for the procedure
Document every step with photographs before disassembly. This helps when reassembling the amplifier and makes it easier to identify any components that were overlooked. Label each wire and connector with tape and a marker, because keeping track of connections becomes significantly harder once the amplifier is partially disassembled. Test the amplifier at low volume before applying full power. This helps identify any obvious issues such as short circuits, incorrect wiring, or protection circuits triggering prematurely. Use a variac or dim-bulb tester to limit the power supply voltage during initial testing, which reduces the risk of damaging newly replaced components. Measure key parameters such as quiescent current, output offset voltage, and frequency response after the replacement. This helps verify that the amplifier is operating within specification and identifies any issues that were not apparent during the replacement process. A simple multimeter and oscilloscope are usually sufficient for these measurements.
The process usually takes between two and four hours for a standard component replacement, depending on the complexity of the amplifier and the availability of replacement parts. More involved repairs such as transformer replacements or PCB trace repairs can take significantly longer and require additional tools and expertise.
