What a Component Locator Guide Actually Is

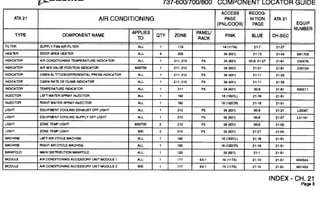

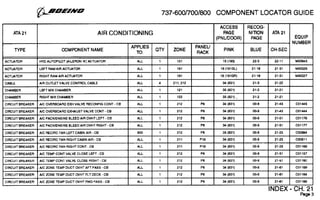

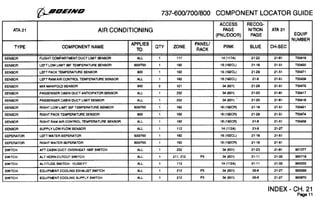

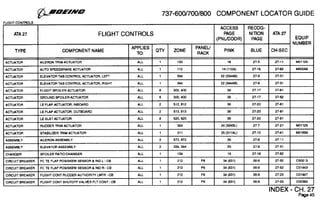

A component locator guide is a reference document — usually a diagram or table — that tells you where specific parts, connectors, sensors, fuses, modules, or relays are physically located on a vehicle. It's not a wiring diagram. It's not a diagnostic tree. It's a map for finding things before you start pulling panels or tearing apart assemblies to get at them. Most people run into these when they're trying to replace a part and the service manual says something like "located behind the lower left dash panel" and that's it. The useful ones give you coordinates: which fuse block, which relay position, which connector pin number, which fastener to remove first. The cheap ones just point at a general area with an arrow and hope you figure it out from there.
How to Use an Automotive Component Locator Guide
Start with your vehicle identification number. Not the license plate. The VIN. Enter it into whichever system you're using — Mitchell1, Alldata, Identifix, OEM proprietary tools, whatever your shop has a subscription to. The VIN is what separates the 2018 Camry from the 2019 Camry even when they share the same platform code. Skip it and you'll get the wrong locator every time on borderline cases. Once the vehicle is loaded, search by component type rather than by symptom. If you need to find the Mass Air Flow sensor, type "MAF" or "air flow sensor" into the locator search. Don't start with "car is running rich" and hope the diagnostic tree will point you to the part location. Diagnostic trees and locator guides are two separate functions in most systems, and mixing them up wastes about ten minutes per lookup on average. The output will usually be a combination of three things: a labeled diagram showing the component's position in the engine bay or cabin, a parts breakdown listing the part numbers for any clips, brackets, or fasteners specific to that area, and sometimes a removal sequence — which fasteners come out in what order. That third piece is the one people skip and then spend forty-five minutes prying at the wrong clip.
I spent a Tuesday afternoon in 2022 trying to get to the crankshaft position sensor on a 2016 Ford Fusion 2.0L Turbo. The locator guide showed it as "accessible from below, near the transmission bellhousing." What it didn't show was that Ford routed the upper radiator hose bracket through the same mounting point, and removing the sensor required taking off the bracket first — which itself required unbolting the hose. The guide listed the sensor part number and the connector pinout but omitted the bracket assembly entirely. I found the workaround by pulling the factory service bulletin archive and searching for "crankshaft position sensor replacement procedure revision." Ford had issued a revised procedure six months after the original guide went live. Workaround was straightforward once I knew: remove the bracket bolt, slide the bracket aside without disconnecting the hose, access the sensor, reverse the order. Without that bulletin, I would've cut the hose and added about three hundred dollars in parts and labor to the job.
Get the Full Details
Types of Locator Guides and When Each One Matters
There are really three categories you'll encounter, and they serve different purposes. OEM service information systems — these are the official guides from manufacturers. OEM data is usually the most complete because it's built from the engineering side, not the aftermarket side. You get exact fastener torque specs, connector back-probe points, and removal sequences that match the factory assembly process. The downside is cost and access. Most independent shops pay between $200 and $400 per month per brand, and you need active subscriptions for each manufacturer you work on. If you only see one Ford a week, the subscription pays for itself in avoided mistakes. If you see one every three weeks, it doesn't. Aftermarket databases — Alldata, Mitchell1, and similar platforms aggregate OEM data but also layer in their own research and technician-submitted procedures. The locator accuracy is generally good for common vehicles from 1996 onward. Pre-1996 OBDII, the coverage drops off noticeably because there was less standardized documentation to begin with. The value-add here is the technician notes section, where someone who already did the job posts what the manual got wrong. Those notes are sometimes more valuable than the official content.
Standalone locator publications — these are printed or PDF guides sold by companies like Motor, AllData, or independent publishers. They're usually organized by make and model year and focus on component positions rather than procedures. Useful as a quick reference when you don't have system access, but they lag behind new model years by several months and rarely include the kind of procedural detail that prevents you from breaking a clip.
Common Pitfalls That Waste Time
The biggest issue I see shops make is assuming the locator guide is the same across model years on a shared platform. It isn't. A 2017 Honda Accord and a 2018 Honda Accord share the same body shell and most of the same components, but Honda moved the cabin air filter housing access point and changed the fuse box layout between those years. The locator system will show you the 2017 version if you don't verify the exact model year in the VIN decode. I've replaced the wrong fuse multiple times because of this — not a dangerous mistake, but a frustrating one that adds twenty minutes to a job that should take five. Another problem is regional variations. The North American spec and the European spec of the same BMW model often have different component locations, different fuse distributions, and sometimes completely different sensor placements. If you're working on an imported vehicle or a fleet mix, double-check the market designation before trusting the locator. The system won't flag it for you. Connector orientation matters more than location. Most locator guides show you where a connector is. Fewer show you which way the locking tab faces or whether it's a push-lock or a twist-lock. I learned this the hard way on a 2014 Chevrolet Silverado 5.3L when I pulled the correct connector from the guide, arrived at the engine, and spent twelve minutes wrestling with it before realizing the guide had labeled the wrong connector type for that position. The actual connector required a 90-degree twist to release, and the guide only showed a pull-tab design. The workaround was checking the parts catalog for the connector part number and cross-referencing it with the hardware supplier's installation sheet, which showed the twist-release mechanism clearly.
What Locator Guides Don't Tell You
They don't tell you about corrosion. They don't tell you about previous repair damage. They don't tell you that the component location is technically correct but practically inaccessible because a aftermarket intake manifold is in the way. They're reference tools, not replacement for judgment. For older vehicles — anything past 15 years or 150,000 miles — the locator guide becomes less reliable as a standalone resource. Components get moved during prior repairs. Wiring gets spliced. Aftermarket alarms and accessories reroute sensors. A 2003 Toyota Tacoma with three previous owners and a lifted suspension will not match its locator guide anymore. In those cases, the guide is a starting point, not an authority. Physical inspection and continuity testing replace the guide for final confirmation. Here's something most beginners miss: the best locator guides include fastener specifications. Not just "remove this bolt." The size, the thread pitch, the torque value, and whether it's a metric or SAE fastener. On modern European and Asian vehicles, this matters because manufacturers frequently mix fastener types in the same assembly area. Removing a 10mm bolt when the guide says 8mm strips the head in about three seconds, and then you're dealing with a extraction job instead of a replacement. Always verify the fastener size against the actual hardware before applying torque. A magnetized pickup tool and a small socket set laid out in order prevents most of these mistakes.
The locator guide field is functional but inconsistent. The systems that invest in technician feedback loops and regular procedural updates produce noticeably better results than those that treat the data as a one-time compilation. If you're choosing between platforms, look at how recently the component procedures were updated rather than how many vehicles are in the database. A smaller database with current procedures beats a massive one with stale content every time.
