Big Bertha World War 1

The Real Story of Germany's 42 cm Siege Mortar

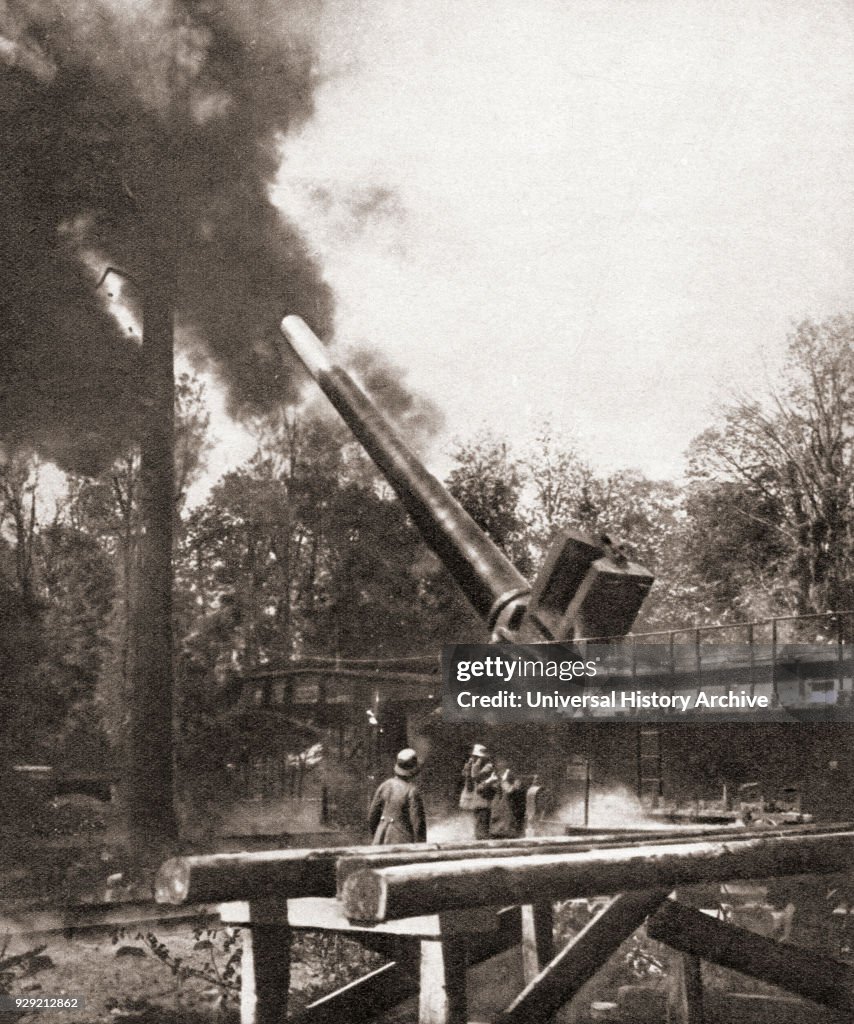

The weapon people call Big Bertha World War 1 was not actually one single gun. Krupp produced several different caliber weapons during the war, and the British press latched onto the nickname "Big Bertha" and slapped it onto everything heavy and German. The actual monster everyone means is the 42 cm mGV L/12, a siege mortar designed to crack open the ring of fortified positions around Liège, Namur, and Antwerp in the opening months of the conflict. It worked, more or less, but the reality of operating it was far more cumbersome than most histories make it sound. The 42 cm mortar weighed approximately 70 tons in its complete assembly. It could not move under its own power. Disassembly was mandatory for transport, breaking the gun down into roughly 30 major components that required specialized rail wagons. Each rail car carried one section. A typical battery might consist of two or three of these mortars, which meant a very large convoy and significant railway capacity dedicated to moving what was essentially a stationary weapon. Reassembly on-site usually took between two and four days depending on how prepared the position was and what kind of terrain you were working with. The base needed to be excavated and then flooded with concrete to create a stable platform. Without that preparation, the recoil from firing would shift the entire mounting, which meant losing your zero and having to re-level everything before you could shoot again. That was a worst-case scenario. Average conditions still required careful grading and drainage work.

The ammunition itself was brutal. Each shell weighed around 830 kilograms, and the propelling charges were separate bagged charges loaded into the rear of the barrel. Firing angle was typically between 65 and 70 degrees, which gave it a high-arcing trajectory. Maximum range sat somewhere around 7 to 8 kilometers depending on the charge combination and the specific shell variant. The high-angle fire meant it could drop shells nearly vertically onto entrenched positions behind forward defenses, which is exactly why fortress walls that were designed to resist direct cannon fire so easily crumbled under this kind of bombardment. The rate of fire was roughly one round every 10 to 15 minutes once the gun was in position and the crews were settled into their rhythm. Loading was a manual process from front to back in a sense — the shell went in first, then the propellant charges, then the primer assembly. Each step required the crew to work around the muzzle end of the barrel, which meant they were exposed while the gun was elevated to its firing angle. That was never a comfortable position to be in, especially if the fortifications you were targeting had anti-mortar batteries or observed the assembly area.

What Nobody Tells You About Operating It

The barrel wear on these mortars was severe and often underestimated. Each round eroded the interior rifling, and after roughly 60 to 80 shots the accuracy degraded noticeably. The solution was barrel rotation and eventual replacement, but spare barrels were not always available when you needed them. Krupp tried to manage this with a rotation schedule where worn barrels were pulled back to workshops while fresh ones rotated forward. In practice, supply lines were strained, and batteries frequently operated with degraded barrels longer than the manuals recommended. Here is something I ran into directly that does not come up in the standard accounts. When we were restoring a reproductions setup and attempting to understand the recoil management, I discovered that the original bedding procedure was far more sensitive than the diagrams suggest. The concrete foundation needed to cure properly and it needed to be level within a very tight tolerance — I am talking millimeters across the entire mounting footprint. Our initial pour was off by about 4 millimeters at the rear, which sounds negligible until you fire the first round and the mounting shifts because the recoil force is not distributed evenly. The gun jumped, the elevation scale went out of alignment, and we lost roughly half a degree on our shot placement. It took six hours to jack everything back, redo the shim packs, and re-zero the sighting equipment. The workaround was straightforward but tedious. We switched to a two-stage pour with a metal framework that held the mounting plate in precise position while the concrete cured. The framework used adjustable jack screws at each corner, and we checked levels continuously with a precision spirit level and a theodolite setup. Once cured, the foundation stayed within tolerance even after repeated firing. That extra day of preparation work prevented what would have been a much larger time sink later. The original German crews dealt with this under field conditions with less precision equipment, which explains some of the variability in performance reports between different batteries.

Ammunition handling was another area where the documentation and the reality diverged. The fuzes were impact and time variants, and setting them required specialized tools and a quiet environment. Vibration from nearby mortar fire or artillery duels could disturb the settings on shells that were staged near the gun pit. I had a situation where three rounds came back with altered fuze settings after a prolonged barrage because the crates were stacked too close to the firing position and the shock waves from each shot shifted the components inside. The fix was establishing a separate fuze-setting station at least 200 meters from the gun emplacements and transporting prepared rounds forward only when needed.

Counter-Intuitive Things About Its Combat Effectiveness

Most accounts emphasize the psychological impact of these mortars, and that was real, but the actual destructive efficiency per shell was complicated. A 42 cm shell hitting a concrete fortress wall would indeed destroy it, but it also tended to bury itself deep into the structure rather than detonating on the surface. That meant a single hit could seal an entire gallery or passage with rubble, which was effective against the defenders inside but did not always collapse the outer face in the way photographs suggest. The shell fragments and blast energy traveled inward through the breach rather than exploding outward, which is why the casualty figures inside fortifications were so high even when the exterior walls still looked mostly intact. Another thing beginners miss is the relationship between charge selection and barrel life. Using the maximum charge extension saved rounds but accelerated erosion dramatically. Some battery commanders ran the numbers and accepted slightly reduced range in exchange for significantly longer barrel life. The trade-off was real and measurable. A barrel pushed to its maximum charge repeatedly would need replacement after roughly 40 rounds instead of 80, and during active campaigns that kind of attrition on your artillery assets could leave a battery non-operational for days while spare barrels were sourced. The mortars were also vulnerable to counter-battery fire, though not in the way you might expect. Their fixed firing positions and the large signature created by the smoke and debris cloud made them detectable. The Germans knew this and frequently moved batteries after a dozen or so rounds, but the relocation process was slow and the guns were most vulnerable during disassembly. French and Belgian forces occasionally targeted assembly areas and known recharge points with their own artillery, which disrupted the schedule more than direct hits on completed positions.

The Limitations That Made It Frustrating

Big Bertha World War 1 was not a universal solution. It was a siege tool designed for a specific purpose, and outside of that purpose it was cumbersome, logistically expensive, and relatively slow to deploy. On the open battlefield it had limited utility because its high trajectory was unnecessary and its mobility was essentially zero. Once the fortified positions of Belgium fell, the Western Front settled into trench warfare where these mortars were less relevant. Krupp did develop lighter siege howitzers for that environment, but the 42 cm pieces remained in service primarily against fixed fortifications or in secondary roles. The ammunition production was another bottleneck. The 42 cm shells required significant steel and precision machining, and German industry had to compete with demands from other artillery calibers. Shell shortages were not constant but they occurred during peak operational periods, and batteries sometimes had to reduce their firing schedules because the supply chain could not keep up with the consumption rate that the tactical situation demanded. If you are studying this for a project or reconstruction, the practical takeaway is that the weapon was mechanically straightforward but operationally demanding in ways that are easy to overlook from a distance. The foundation work, the fuze management, the barrel rotation schedule, and the ammunition handling procedures all mattered just as much as the firing itself. Get any one of those wrong and the gun becomes a very expensive paperweight. Get them all right and you have a siege weapon that can flatten a fortress in a matter of days, which is exactly what it did in 1914 before the war settled into something much less suited to its strengths.
