Reading Car Wiring Diagrams Is Nothing Like How They Look in Manuals
The first thing most people get wrong about car wiring diagrams is that they expect them to look like what's actually in the engine bay. They don't. A wiring diagram is a logical representation, not a physical map. Wires run vertically on paper regardless of whether they're routed above, below, or behind the firewall in reality. When I pulled a manual for a '04 Corolla and tried to trace the fuel pump circuit by matching wire positions to the physical harness, I wasted forty-five minutes before realizing the diagram was organized by circuit function, not spatial location. That mistake costs time and patience. The diagram shows you which components connect to which; it doesn't show you where those connections live in space. Here's how the actual system works. Every wire in a modern vehicle carries two pieces of information: its function and its identification. The color code tells you what the wire is connected to. The stripe pattern tells you which circuit branch it belongs to. The diagram uses standardized symbols for every component. A resistor becomes a zigzag line. A solenoid gets a coil symbol with contact points. Ground points are represented by that familiar three-line descending symbol. Once you learn to read those symbols instead of trying to visualize the actual hardware, things move much faster.

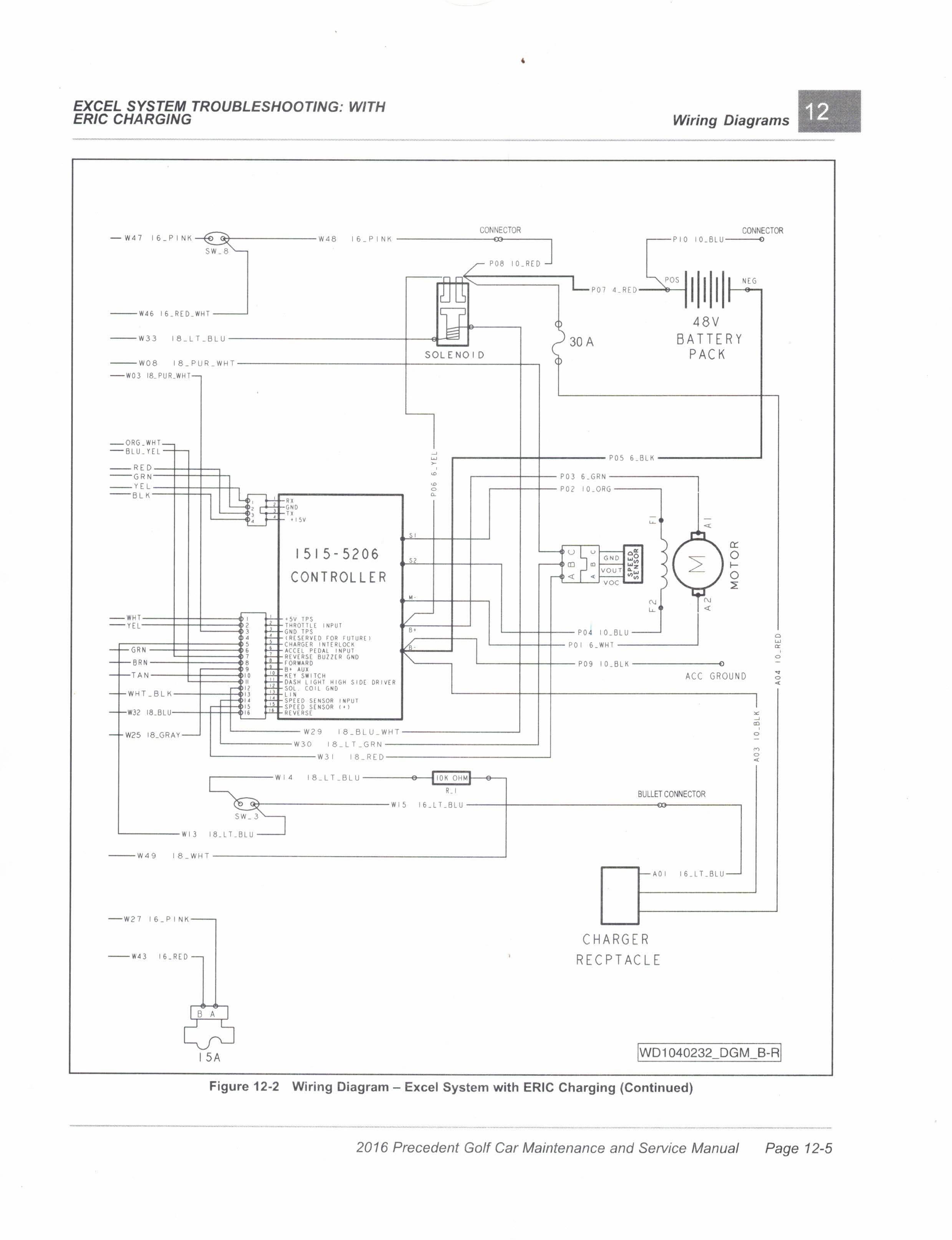

Car Owner Training Manual Wiring Diagram
The real problem with training manuals is that most of them are written for people who've never opened a hood. I worked with a fleet management company that bought fifty of these generic training manuals for their technicians. We threw out about eighty percent of them within a month. The diagrams were generic approximations, the labeling was inconsistent between chapters, and several of the grounding diagrams didn't match any vehicle we actually serviced. What we ended up using were manufacturer-specific service manuals from the OEMs, supplemented with factory wiring diagrams from subscriptions like ALLDATA or Mitchell1. Those cost money per user per month but they're accurate for the specific make and model. Free resources like the Honda tech site or Ford's service portal sometimes offer diagrams if you register your VIN. They're not as polished as paid systems but they're correct. Let me tell you about the time I spent six hours chasing a phantom short on a '99 Camry. The dashboard lighting would work fine when the headlights were off, then the entire dash would blackout when I turned them on. The diagram showed the instrument cluster getting power through fuse #10, a 7.5-amp blade fuse. I checked the fuse. It was good. I checked the wiring at the fuse box. Continuity was fine. I traced the diagram to the dimmer switch, then to the headlight switch assembly. Nothing looked wrong visually. I spent maybe four of those six hours doing that kind of detective work. What I eventually found was a shared ground point G101 under the dash that had corroded to the point where it could handle the low-current sensor circuits but couldn't handle the added load when the headlight circuit energized. The diagram showed the ground connection correctly. The diagram didn't show that the bolt had backed out slightly and the terminal was sitting on painted metal instead of bare steel. That's the limitation of every wiring diagram I've ever used. They show you the design intent. They don't show you what actually happened to that connection after twelve years of thermal cycling and road vibration. When you're learning to read these diagrams, start with the simplest circuit you can find. The horn circuit on almost any car from the nineties onward is a good entry point. It has a power source, a fuse, a switch, a relay, and a load. Four or five components maximum. Follow the diagram through each one. Trace the power path from the battery through the fuse to the relay coil, then through the relay contacts to the horn itself. Then follow the ground path back. Once you understand that basic loop, everything else builds on it. The ABS system, the airbag system, the engine management system — they all use the same fundamental architecture. Power, switch, relay or direct connection, load, ground. The difference is complexity and safety interlocks.
One thing nobody tells beginners: wire colors change between model years even within the same vehicle line. A '98 Accord and a '01 Accord might both be Honda ACCORDS with the same engine, but the wiring harness colors are different because Honda changed their color coding standards. If you're relying solely on a diagram without accounting for year-specific variations, you'll misidentify wires constantly. Always verify the model year and trim level before trusting a color code. The diagram should list the applicable years at the top. If it doesn't, you're looking at something generic and potentially wrong. Another counter-intuitive thing about modern car wiring: the CAN bus system has largely replaced point-to-point wiring for many signals. In a pre-2000 car, if you wanted the radio to know when the headlights were on, you ran a physical wire from the headlight switch to the radio. In a post-2005 vehicle, both the headlight switch and the radio connect to the same data network and communicate digitally. This means a wiring diagram for a modern car often shows parallel paths: the power and ground distribution that looks familiar, plus a network topology section that looks nothing like traditional schematics. The network section uses different symbols and convention. You'll see lines labeled CAN-H and CAN-L instead of wire colors. If you're training someone on this, you need to teach both systems separately before expecting them to read a combined diagram. Mixing the two concepts in someone's head at the same time causes confusion that takes weeks to untangle. I should be straight about what these diagrams can't do for you. They won't tell you which connector pins are corroded internally. They won't show you splice points that were made improperly during a prior repair. They won't indicate wire degradation from heat exposure near the exhaust. I once spent an afternoon diagnosing an intermittent no-start condition on a '05 F-150 using a perfectly accurate diagram. The problem turned out to be a wire inside a rubber loom that had rubbed through insulation against a metal bracket. The diagram showed the wire as intact and continuous. It only looked broken when I physically flexed the harness while checking continuity. No diagram in the world would have predicted that. Physical inspection is not optional. The diagram gets you to the right area. Your eyes and a multimeter do the rest.
Get the Full Details
If you're serious about this, get a decent multimeter with a continuity mode and a back-probe kit. The back-probe pins let you test connections without disconnecting anything. Try to find vehicle-specific wiring diagrams rather than generic ones. The ALLDATA subscription runs around thirty dollars a month per user and is used by professional shops for this exact reason. Free options exist — the EPA's OBD website has some references, and some manufacturers publish diagrams on their tech sites — but they're incomplete compared to what a shop manual provides. At minimum, having the correct diagram for the exact year, make, model, and engine of the vehicle you're working on will cut diagnostic time dramatically. A circuit that should take twenty minutes to trace can easily consume two hours if you're guessing at wire functions instead of reading them from an accurate source.
