Working with the Stihl 009

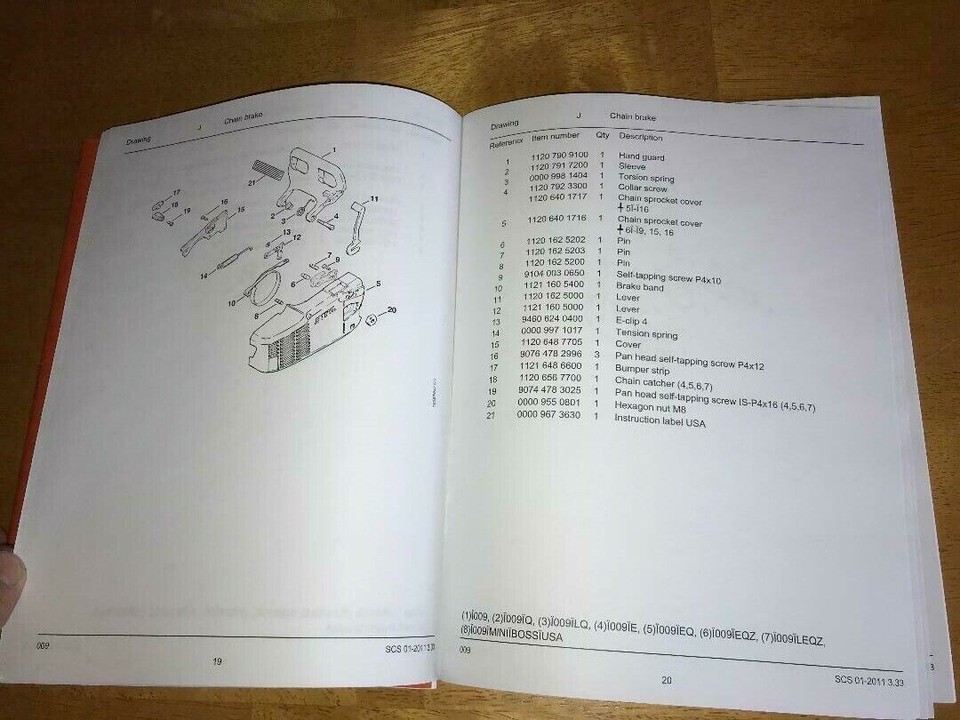

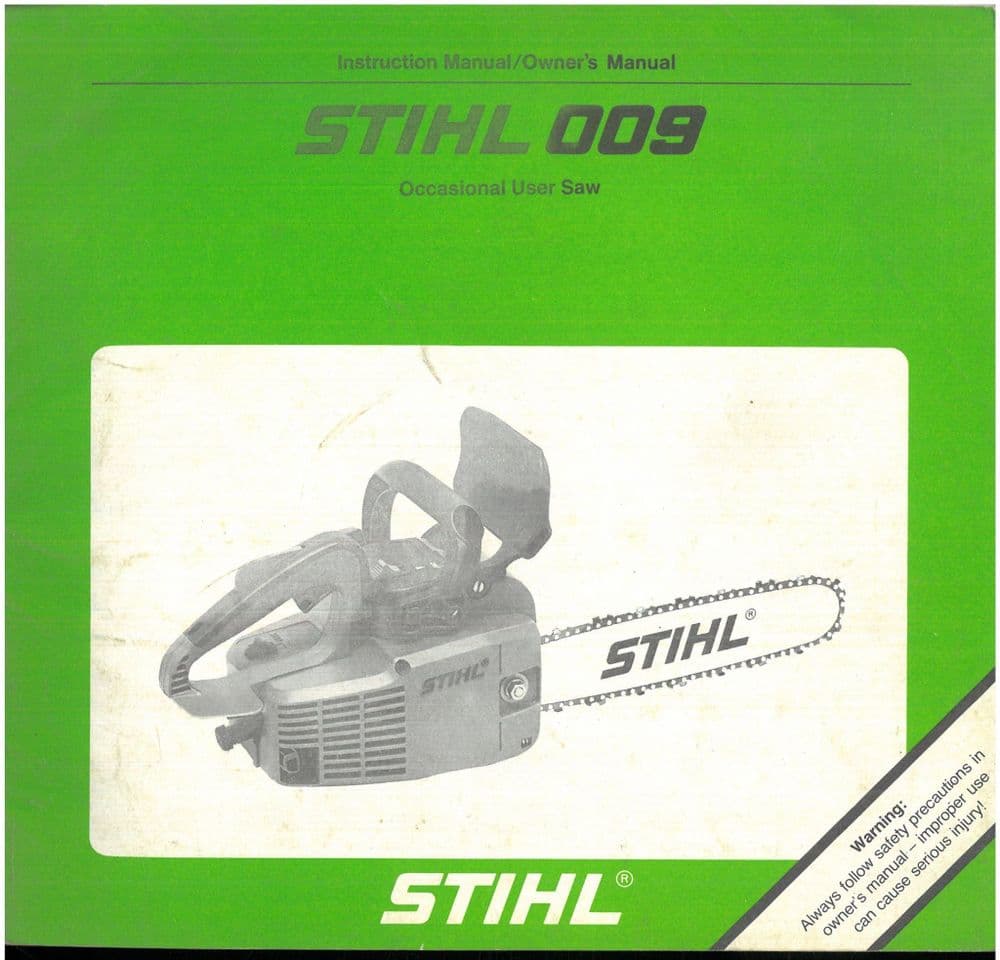

The Stihl 009 is one of those older European saws that everyone seems to have inherited or picked up cheap at auction. They're generally solid machines but staying on top of maintenance isn't always straightforward if you don't have the right documentation. A proper workshop manual changes that entirely. You need to get your hands on the official Stihl service manual for the 009. These were produced roughly between 1967 and 1973, which means most digital copies floating around are scans of German originals that some clever person translated into English. The quality varies wildly depending on who scanned it and how careful they were with the diagrams. I found the best version through a Stihl dealer network page that links to archived manuals. Some third-party sites claim to have it too, but I'd verify the page count against a known copy before downloading anything. The full manual runs about 40 to 50 pages with exploded views of every major assembly. The real value here is the torque specs and clearance measurements. Most people who pick up a 009 already know the carburetor is finicky. What they don't always know is that the idle mixture screw should be backed out exactly two full turns from the lightly seated position before even attempting to tune. I learned that the hard way when a saw sat in my garage for three years and wouldn't pull over consistently. Turns out the carb was flooded because someone had jammed the mixture screw in too far during previous attempts. Following the manual's procedure saved me from replacing a carburetor that didn't need replacing.
Another detail the manual gets right but aftermarket parts diagrams sometimes mess up is the cylinder-to-piston clearance spec. Stihl lists it at 0.03 to 0.06 millimeters across the skirt. That is tighter than most people expect for a vintage two-stroke. If you source a replacement cylinder that's bored oversize beyond what the manual calls for, you'll have oil consumption issues that make the saw nearly undriveable in normal conditions. I had a situation where a Chinese-manufactured replacement cylinder came with a bore that was 0.15mm oversize with no documentation about it. Fitting the stock piston resulted in excessive blowby and the saw ran rich no matter how I adjusted the carb. Sourcing a used original cylinder from a parts engine fixed the problem, though it cost more in the short term than just buying the cheap replacement. When you're looking for the manual itself, search terms like "Stihl 009 service manual PDF" or "MS 009 workshop manual" will surface several options. Check that the download includes the timing specifications section. That's the part most pirated or incomplete versions skip, and timing a 009 without it is a guessing game that usually ends with premature spark plug fouling or worse, valve train damage on the few models that have them. The ignition timing should read somewhere around 0.7 to 1.0 millimeters of air gap between the flywheel magnets and the coil assembly, measured with a feeler gauge at the top dead center position on the compression stroke. The manual also specifies the spark plug gap at 0.5 millimeters. If you run it wider than that, you'll notice a weakening of the spark under load and the saw will cut poorly even when the chain is sharp and the carb is tuned right.
I keep a copy saved locally rather than relying on a browser link because these manual websites come and go. Stihl has quietly taken down several archived pages over the years without much warning. Having it backed up means you aren't scrambling when you need it during a repair. The file is small enough that a USB stick or cloud storage works fine for archiving.
