Working with a swing gate opener manual isn't straightforward, especially when the hardware doesn't match the documentation exactly

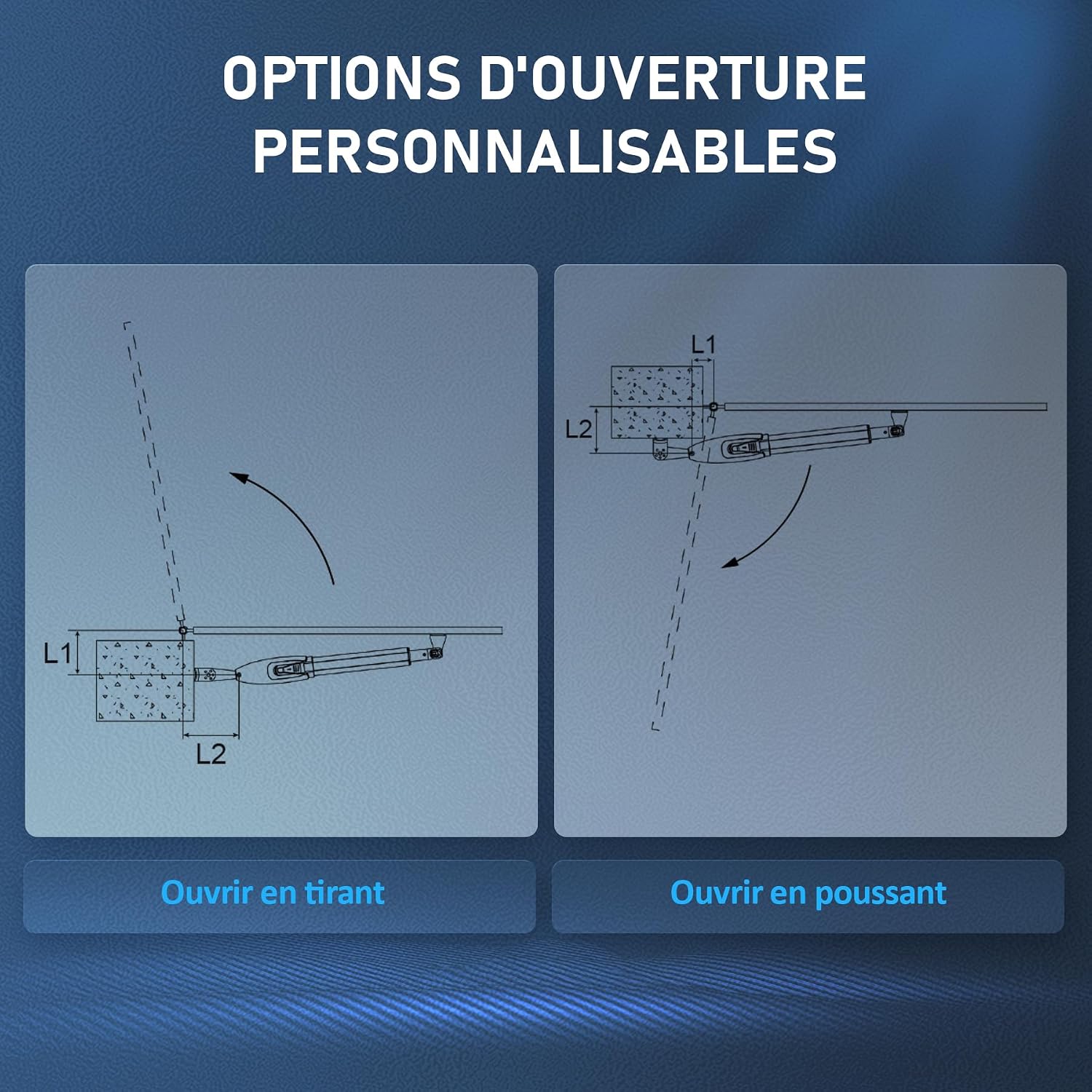

The Co Z Swing Gate Opener Manual is essentially the only reference most installers have when they are dealing with these systems. It covers wiring diagrams, gear ratio adjustments, safety sensor alignment, and programming the remote controls. The problem is that the manual assumes your installation will go perfectly according to the diagram. It doesn't. Gate openers are installed on existing structures that were never designed with automation in mind. Your gate might not be perfectly plumb, the latch might drag, or the terrain could cause the gate to bind during part of its swing arc. I found the manual by searching the manufacturer's support site directly. They don't always list it prominently on the homepage, so navigating to the product support or downloads section is necessary. The PDF is usually labeled with the model number. Save it locally. I've seen too many installers rely on their phone or tablet at the top of a gate post while trying to trace wiring paths, which doesn't work well in bright sunlight. The manual walks through the basic installation sequence. You mount the operator arm to the gate frame, attach the base to a solid post or wall, run the low-voltage wiring between the control board and the motor, connect the safety sensors, and then program the logic board. That sequence sounds linear but skipping even one step, like properly tensioning the arm, causes problems later.
The wiring section is where most people get stuck
The control board typically has terminals for power, motor output, safety edges, photo eyes, and auxiliary outputs. The manual labels them with abbreviations that aren't always intuitive. LO for low voltage, COM for common, NO for normally open. If you are connecting third-party accessories, you need to understand how these terminals behave during the gate cycle. The manual shows a static diagram. It doesn't explain what happens to the terminal voltages while the gate is moving. I encountered a situation where a client had a keypad wired through the NO terminal, and it would only work when the gate was fully closed. The manual didn't address this because it assumes a standard keyless entry setup on a fresh install. The workaround was to rewire the keypad to the COM and NO terminals on the auxiliary output instead, which gives you a powered contact that closes whenever the gate receives an open command, regardless of position. That required bypassing the built-in terminal logic entirely.
Gear ratio and force adjustment are not optional
Many installers set the gear ratio based on the gate weight chart in the manual and move on. The force settings are equally important. If the force is set too low, the gate will reverse on an obstacle it shouldn't, like a patch of uneven ground. If it's set too high, the motor will try to push through a jam instead of reversing, which can damage the gear train or bend the operator arm. The manual gives torque values but doesn't tell you how to judge whether the gate is actually struggling during operation. The practical test is to run the gate through several full cycles with the force at the factory setting. Watch for hesitation at any point in the arc. Listen for the motor to strain. If the gate slows down noticeably near the latch, the force needs a quarter-turn increase, not a full turn. Small adjustments matter more than big ones on these systems.
Get the Full Details
Photo eye alignment is where I lose patience
The manual shows the photo eyes mounting at a specific height, usually six inches above the ground. That measurement is correct on flat surfaces. On a driveway with a slope or a slight crown, aligning the beams can take twenty minutes or more. I had a job where the gate was on a concrete pad that sloped toward the street. The left photo eye sat about an inch lower than the right one due to the angle. The manual doesn't cover this scenario because it assumes a level installation surface. The fix was to shim the lower eye with a piece of PVC conduit cut to length and secured with silicone. That brought the beam into alignment without modifying the gate structure. You can also adjust the tilt range on some photo eye models, but the Co Z included eyes had limited adjustment. Shimming is faster than returning parts.
Programming the remotes and keypads
The learning sequence for remotes is straightforward once you find the learn button on the control board. Hold it until the indicator light changes, then press the remote button. The manual lists this in the troubleshooting section rather than the main programming guide, which is backwards. I've wasted time searching the wrong sections of this manual before realizing the programming steps are buried. Forkeypads, the default code is almost always 1234 or 0000. Changing it requires entering the programming mode first, which the manual describes in two sentences. That description is sufficient if you have done this before. It is not sufficient for a first-timer. Write down the default code and the steps before you start, or you will end up resetting the board and losing all programmed remotes in the process.
Common failure points the manual glosses over
The operators use a chain or screw drive depending on the model. The screw drive version requires periodic lubrication. The manual mentions this in the maintenance section near the end, but it doesn't specify how often. In practice, you should lubricate the screw every six months in humid or coastal environments. Salt air accelerates corrosion on the drive mechanism significantly. I replaced a screw drive on a unit that had not been lubed in two years. The backlash was severe enough that the gate would overshoot the closed position by several inches every time. Another issue is weather sealing on the control board housing. These enclosures are rated for outdoor use but the gaskets degrade over time. Moisture gets inside and causes corrosion on the terminal blocks. I found a board with green oxidation on the motor output terminals after about three years of exposure. The gate would work intermittently, usually only in dry weather. The manual doesn't warn about this because it is a long-term wear issue, not an installation error.
When the manual won't help you
If your gate is dual swing, meaning two leaves that meet in the middle, the wiring complexity doubles. The manual covers single swing installations primarily. Dual swing requires synchronization between two operators, which means you need to understand master and slave configuration on the control boards. This is rarely explained clearly in the documentation. You end up reading error code tables and guessing at jumper settings. Another scenario where the manual falls short is when you need to integrate the gate opener with an existing intercom or access control system. The auxiliary relay outputs are mentioned briefly, but there is no guidance on interfacing with non-standard equipment. You have to treat the board as a generic controller and figure out the voltage and current limits yourself by checking the specification table in the back of the manual. The Co Z Swing Gate Opener Manual is adequate for a basic single-leaf installation on a level gate with standard accessories. Beyond that, you are on your own and the documentation becomes a reference rather than a complete guide.
