Testing Common Rail Injectors Without Losing Your Mind
The Milonas bench is one of those pieces of equipment that costs more than your first car and takes about three years to fully understand. I picked one up used in 2019, and honestly, the first six months were just me staring at error codes I didn't know how to interpret. You learn. Or you send the injector back and admit defeat. It runs each injector through a series of electrical and hydraulic tests while measuring flow, response time, internal leakage, and piezo coil resistance. The unit fires the injector at commanded rates, records rail pressure decay, and logs everything into a report. Most shops use it for diesel passenger cars and light commercial vehicles, though some of the larger configurations handle heavier truck injectors too. The core workflow is straightforward: remove the injector, mount it on the test bench, connect the high-pressure line, run the software sequence, and read the results. The software then compares your readings against manufacturer specifications and flags anything out of tolerance. That's the ideal version. Real life involves a lot more troubleshooting than that.
Getting Started With the Bench

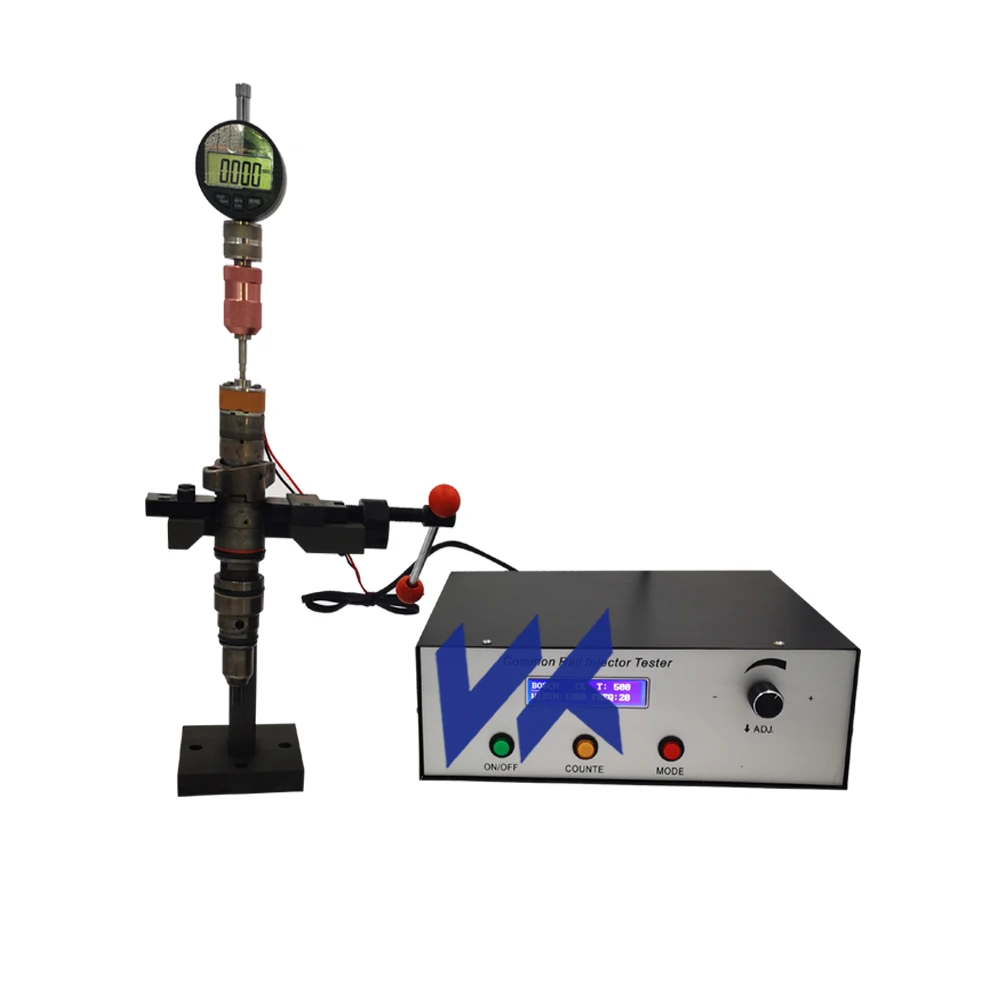

First thing you need is a clean, level workspace with stable power. Voltage drops during the test cycle will throw off your readings, so if your shop's electrical system is anything like mine was back in 2020, get a dedicated line or a proper stabilizer. I learned that the hard way when my first batch of results looked wildly inconsistent until I traced it to a shared circuit with the HVAC compressor kicking on randomly. You also need clean diesel or the recommended test fluid. Never run tap water through these injectors. The corrosion damage is instant and irreversible, and the repair costs will make you wish you'd just bought the proper fluid from the start. I know because I made that mistake early on. Mount the injector securely. The adapter fitting needs to seat properly on the injector nozzle, and the high-pressure line must be torqued to spec. Loose fittings cause pressure leaks during testing, which gives you false low-flow readings. The machine will still run, but the data you get is garbage. Recalibrate or replace the adapter seal if you suspect a leak.
Running a Test Cycle

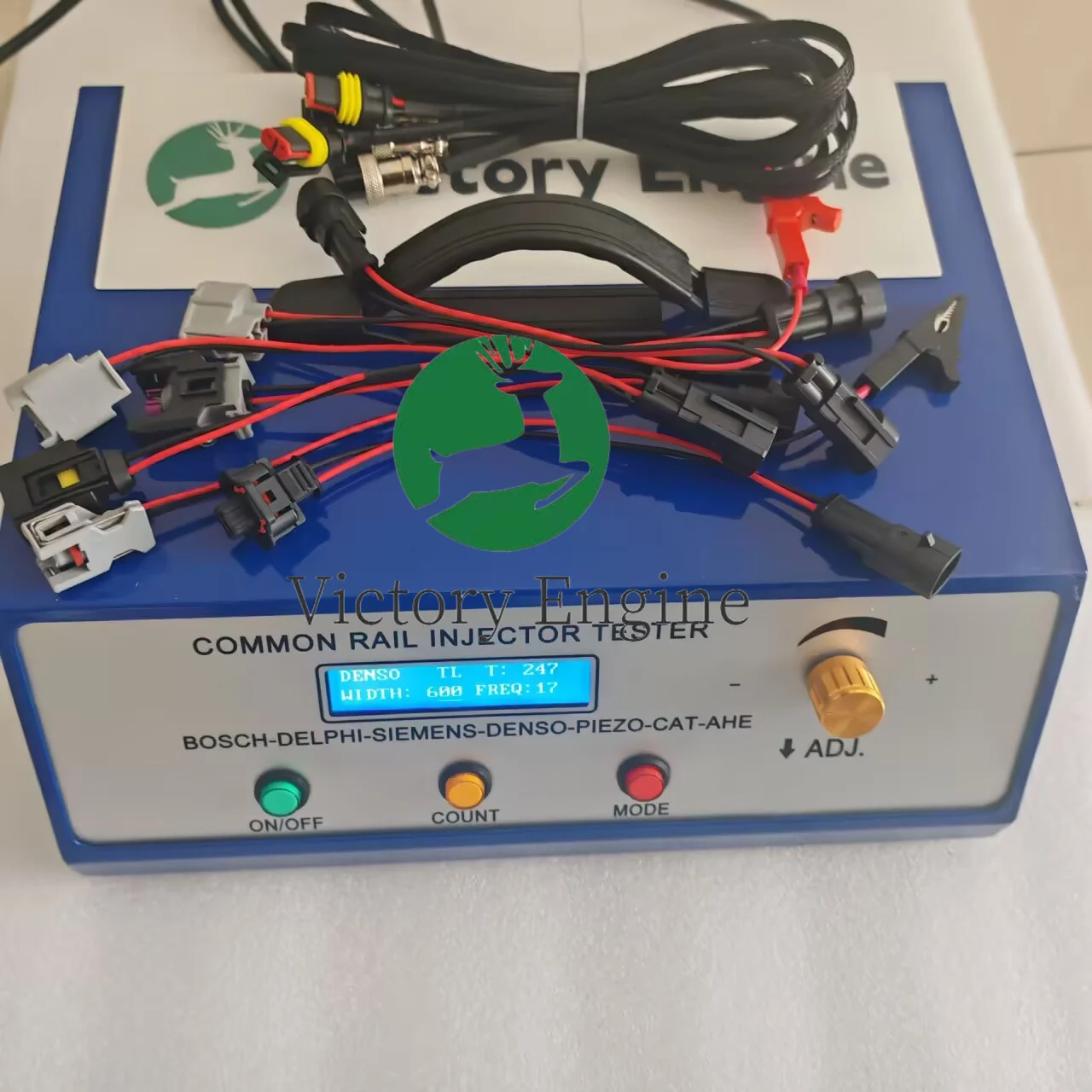

Select the injector type in the software first. The Milonas supports Bosch, Delphi, Denso, Siemens, and a few others. If you pick the wrong family, the test parameters will be off and you'll waste time chasing errors that don't exist. This is the most common mistake I see from technicians who rush into testing without checking the label on the injector body. Enter the part number or let the barcode scanner do it if your unit has one. Then input the rail pressure spec and flow rate targets from the manufacturer data. Most of the time this comes from a database inside the software, but having a backup manual reference is useful when the database doesn't have your particular injector model. Start the test. The machine will cycle through pilot injection, main injection, and after-injection events at various durations. Watch the pressure curves on the screen. A healthy injector shows smooth pressure ramps and quick decay. Staggered or jagged curves usually mean a stuck spool valve or worn needle control.The software then generates a pass-fail report with all measured values logged. You can save these to USB or export them as PDF for your records. Some shops use the reports for warranty claims against suppliers or for customer documentation when showing why an injector replacement is necessary.
Get the Full Details
A Specific Problem I Encountered
Back in 2021, I was testing a batch of Bosch CRIN3 injectors from a VW 2.0 TDI pull. Three of them showed intermittent open-circuit faults on the piezo stack during the electrical check. The injector wouldn't fire at all. I ran the test five times, cleaned the connectors, reseated the cables, and even swapped the harness cable to rule out a bench issue. Still the same error. The breakthrough came when I measured the piezo resistance directly with a multimeter at the injector connector rather than relying on the bench's internal measurement. The reading was 4.2 ohms instead of the spec range of 1.8 to 2.4 ohms. The injector was internally damaged, but the bench's diagnostic software was mislabeling it as an electrical connection fault instead of an actual coil failure. I had to manually override the error and force the full hydraulic test to confirm the injector was truly bad before replacing it.The workaround was essentially ignoring the software's default interpretation and verifying the fault through direct measurement. I ended up documenting this behavior in the Milonas technician forum, and a few months later Sapiens released a firmware update that corrected the piezo fault classification for that injector family.This experience taught me not to trust the error code blindly and always cross-check with physical measurements.
Counter-Intuitive Things Nobody Tells You
One thing that trips people up is assuming a good flow rate means a good injector. It doesn't. An injector can pass the flow test and still have internal leakage past the spill valve that only shows up under actual rail pressure conditions. Always run the leakage test at the specified rail pressure, not just at low pressure. The difference can be significant, and skipping that step means you'll miss degraded injectors that look fine on paper. Another thing is the effect of temperature. Hydraulic fluid temperature changes the viscosity, which changes the flow characteristics. Most benches compensate for this, but the compensation curve isn't perfect across all injector types. If your shop runs hot in summer and the test fluid sits on a shelf near a radiator, your flow readings will drift. Keep the fluid at a consistent temperature, ideally between 20 and 25 degrees Celsius, and recalibrate the bench if you move it to a different environment.This usually adds about five to ten minutes to your setup time but prevents a lot of false rejects.
Limitations You Should Know About

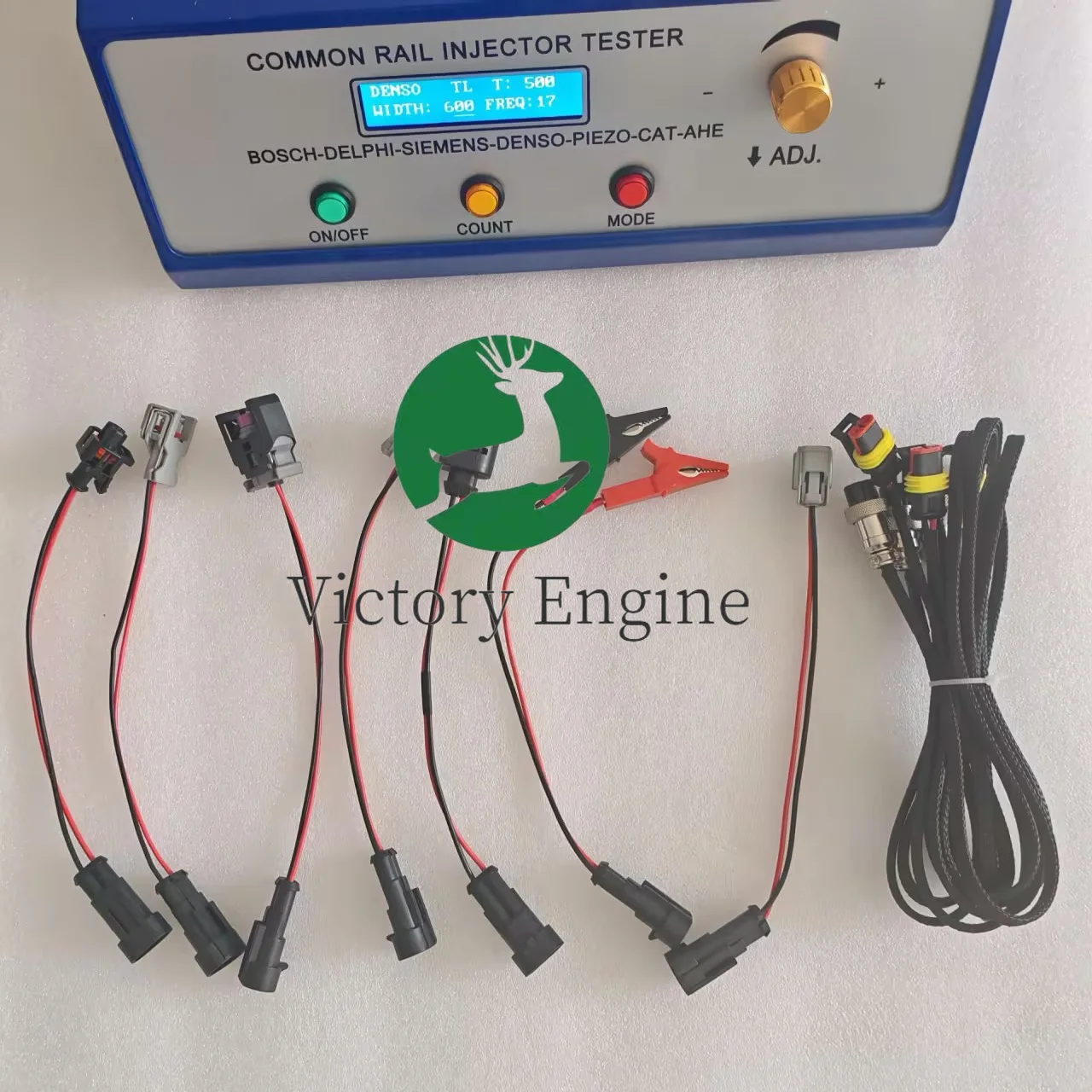

The Milonas is excellent for most common rail injectors, but it has blind spots. Piezo injectors from certain newer Denso and Bosch families require software updates that Sapiens sometimes distributes slowly. I've had cases where a brand-new injector model wasn't recognized by the base software, and I couldn't run valid tests until a patch came out. Check the Sapiens website for the latest software version before you buy or use the bench, and factor update costs into your total ownership price.Some older units also struggle with injectors that have non-standard electrical connectors, requiring aftermarket adapter kits that add expense and potential points of failure. The high-pressure pump on the bench itself is another component that wears out. If you're doing heavy volume testing, plan on servicing or replacing the pump every few years. The cost isn't trivial, and downtime while waiting for parts can slow your whole operation. I've seen shops run these benches for thousands of cycles before the pump starts losing prime, and by then the test accuracy has already degraded.Being proactive about maintenance here saves you from discovering the problem mid-job when a customer is waiting.
Practical Tips for Everyday Use
Keep a logbook or digital record of every injector you test, including the serial number, measured values, and whether it passed or failed. This helps you spot trends over time, like a particular supplier sending out injectors that are consistently borderline. It also protects you if a customer comes back claiming the injector was fine when you returned it.Most of the time these disputes come down to missing documentation, and having detailed test records is your best defense. Calibrate the pressure transducers regularly. I do it every three months or after any event that might shock the system, like a dropped adapter or a sudden pressure spike during testing. The calibration kit is sold separately by Sapiens, and the process takes about twenty minutes if you know what you're doing. Having the calibration certificates on file is also useful for shop audits and quality certifications.Skipping calibration to save time is a false economy. The readings drift, and you start making decisions based on bad data.A single misjudged injector replacement based on faulty test data can cost you far more than the time it takes to properly calibrate the equipment. Invest in a good set of injector adapters and keep them organized. Different injectors use different nozzle sizes and thread patterns, and the wrong adapter will either leak or damage the injector during testing.I've had Technicians grab the wrong adapter under time pressure and strip the threads on a $400 injector nozzle. That's a costly mistake that's entirely preventable with proper organization and a quick-reference chart posted near the bench.Having a laminated adapter guide at eye level cuts down on selection errors significantly.
Learn to read the raw graphs, not just the pass-fail summary. The software makes it easy to glance at the result and move on, but the visual data often reveals problems that the automated analysis misses. A slight hesitation in the pressure rise curve, a minor overshoot during spill valve closure, or an irregular firing pattern across multiple cycles can indicate wear or contamination that hasn't yet crossed the fail threshold.This skill takes practice but separates technicians who understand what they're testing from those who just press buttons and hope.
