D722 Engine Parts Manual

Working With the D722 Engine Parts Manual

The D722 is a Yanmar three-cylinder diesel, mostly found in small excavators and skid steers from the mid-2000s. When that engine needs a rebuild or a specific gasket, you go straight to the parts manual. The official version is usually distributed through Yanmar dealerships or as a standalone PDF through their technical documentation system. It's not glamorous reading. It's a dense, exploded-view parts list that will make your eyes glaze over if you don't know how to navigate it efficiently. I've spent more years than I care to count pulling these manuals apart on shop floors, so let me walk you through what actually works when you're standing in front of a D722 with a problem and nothing but a parts sheet.

Where to Get the D722 Engine Parts Manual

The most reliable source is the Yanmar dealer portal. If you have a dealer account, you can pull the official parts catalog by serial number. This matters because Yanmar ran several revisions of the D722 across its production life, and the parts manual will note which revision your engine falls under. The differences are usually in the injection pump assembly, the turbocharger mounting flange, and occasionally the oil pan bolt pattern. If you don't have dealer access, the manual is sometimes available through third-party technical document sites, but the file quality varies. Some copies are scanned from paper manuals at low resolution. Others are digitized CAD extracts. A low-res scan makes it nearly impossible to read the fine part numbers for small fasteners and seals. Always check the file before depending on it for ordering. There's also the matter of pricing. The official Yanmar parts list doesn't include pricing. You'll need to contact a dealer or input the part numbers into a separate parts catalog system to get costs. That's standard across most heavy equipment manufacturers, but it catches people off guard if they expect everything in one document.

The Structure of the Manual and How to Read It

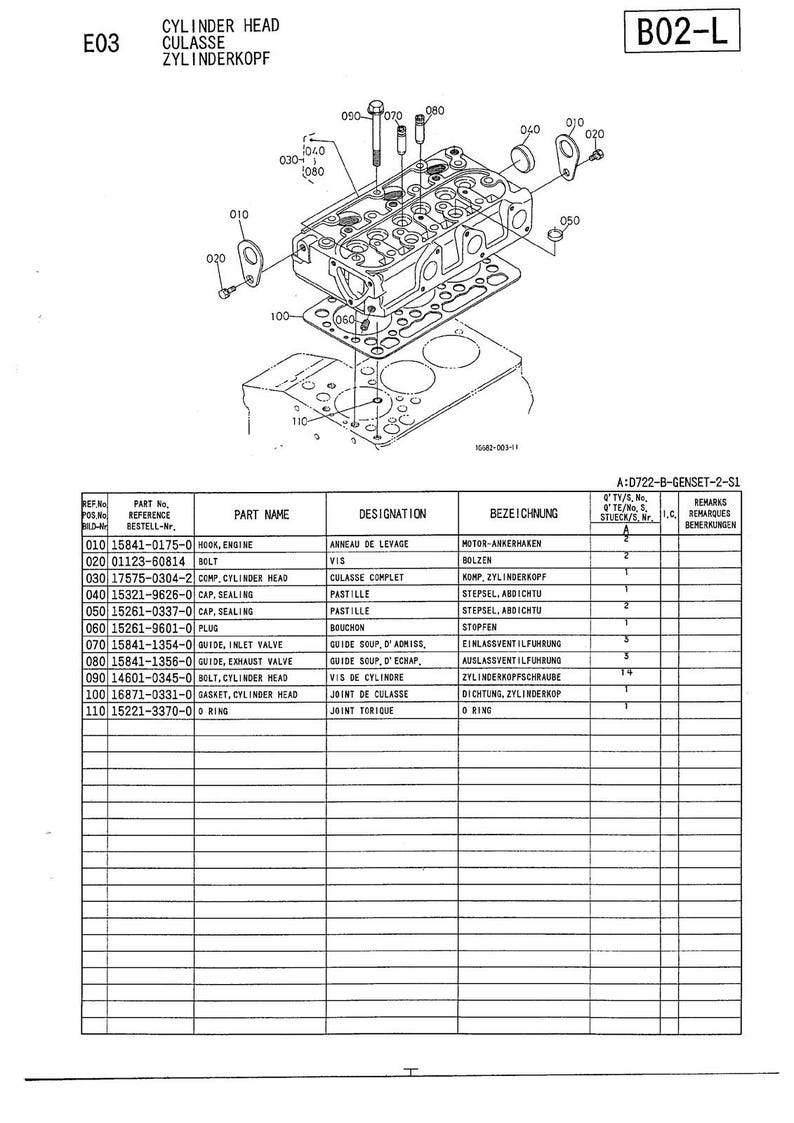

The D722 parts manual follows Yanmar's standard exploded-view format. Each major component group gets its own section. You'll find the cylinder head assembly, the fuel injection pump, the turbocharger, the oil pan, the crankshaft and main bearings, the piston and connecting rod groups, and various ancillary brackets and mounts. Each page has a figure showing the exploded view, a parts list table below it, and reference numbers that map from the figure to the table. The reference numbers in the figure are not sequential across the entire manual. They restart for each sub-assembly. This means page 12 might start with reference number 1 again, even though page 8 already used numbers 1 through 23. It sounds confusing until you're looking at it, then it's just something you get used to quickly. The part numbers themselves are the most important thing in the document. Yanmar uses a consistent numbering system where the prefix often indicates the component family and the digits that follow are the specific variant. When ordering, never rely on a description alone. The descriptions in these manuals can be generic or occasionally vague, especially for internal components where the part looks identical across multiple revisions but has a subtle dimensional difference that matters for fitment.

I learned this the hard way with a set of piston rings. The manual listed them under a single part number, and the dealer shipped what was listed. They fit, but they were the slightly thinner variation for the later production run. My original engine had the earlier spec, and the rings seated fine initially but showed wear much faster than expected. The fix was to match the engine serial number to the correct revision and order the earlier-spec rings from a different supplier. The parts manual alone wouldn't have told me this. It just lists the part without revision notes unless you cross-reference with the service manual.

Common Problems and How to Actually Use the Manual

The biggest mistake people make is flipping to the manual after they've already torn the engine apart. By that point, you're holding a bunch of metal parts with no idea which group they belong to or what number goes with what. A better approach is to photograph the engine before disassembly. Take clear pictures of each component group in place, then look up the corresponding section in the manual while you still have context. For the D722 specifically, the fuel injection pump section is where most people get stuck. The pump assembly has a timing adjustment procedure that isn't covered in the parts manual. The parts book will show you the individual components, the drive gear, the coupling, and the adjustment screws, but it won't walk you through setting the injection timing. For that, you need the separate service manual. The parts manual complements it but doesn't replace it. Another practical tip: the turbocharger section. The D722 uses a relatively small turbo, and the exhaust manifold connection is a common failure point. The parts manual will break down the turbo into compressor housing, turbine housing, shaft assembly, and internal bearings. If you're replacing the entire turbo, you can order it as a complete unit using the main part number. But if you're just sealing a leak at the housing joint, the manual will show you the exact gasket and bolt specifications, which is usually more cost-effective.

The bolts and fasteners deserve special attention. Yanmar uses metric threads throughout, but they don't always use the standard grade markings in a way that's immediately obvious from the parts list alone. The manual will give you the part number for a specific bolt, but it won't always specify the tensile strength grade. For critical applications like head bolts or connecting rod bolts, you need to know the grade. A quick call to the dealer with the part number will get you that specification. Don't skip this step, especially if you're reusing bolts or substituting aftermarket fasteners.

What the Manual Doesn't Cover

The parts manual is useful, but it has clear limitations. It doesn't include torque specifications. It doesn't show assembly sequences. It doesn't tell you which parts are serviceable versus which ones should be replaced as a unit. For torque values, you need the service manual. For assembly notes, you also need the service manual. The parts manual assumes you already know how the engine goes together and just need to identify components and order replacements. There's also the issue of supersession. Yanmar regularly updates parts. A part number that was current when the manual was printed may have been superseded by a revised version. The manual might not reflect these updates. This is especially true for gaskets, seals, and small internal components. The workaround is to always verify part numbers with the dealer using your engine's serial number. The dealer system will show you the current superseded part number and whether there's a revised version available. One more thing: the D722 parts manual is not interchangeable with the D722-T or D722-ECO variants. These are different configurations with different fuel systems and mounting arrangements. Make absolutely sure the manual matches your exact engine model. Using the wrong manual will lead to incorrect part numbers and wasted time dealing with returns.

Practical Workflow for Using the Manual Efficientently

Here's what I actually do when a D722 comes into the shop with a parts question. First, I pull the engine serial number from the data plate. Then I check which manual revision applies. I print out the relevant sections rather than scrolling on a screen. Paper doesn't get lost, smudged, or accidental-clicked away. I lay the printed pages next to the engine. When I need a part number, I reference the figure, note the number, and then verify it against the parts table on the same page. If the part number looks unusual or I'm unsure about a revision, I call the dealer before ordering anything. One phone call saves a lot of headaches later. The whole process for pulling a complete gasket set and a few worn seals usually takes about twenty minutes from start to order confirmation, assuming you have the manual on hand and the engine serial number ready. Without those two things, you're looking at an hour or more just gathering information before you can even place an order. The D722 Engine Parts Manual is a reference tool, not a complete guide. It works well when you know what you're doing and just need to identify components and get part numbers. It's frustrating when you need assembly information, torque specs, or troubleshooting guidance. In those cases, you need the service manual alongside it. Having both documents makes the difference between a quick repair and a days-long parts guessing game.
