Understanding How Induced EMF Actually Works in Real Circuits

Faraday S Law of electromagnetic induction is one of those concepts that sounds deceptively simple on paper but turns into a mess the moment you try to apply it to anything with a non-trivial geometry. The equation itself is straightforward enough: the induced electromotive force around a closed loop equals the negative rate of change of magnetic flux through that loop. Written out, it looks like E = -d/dt, where is the magnetic flux integral of B dot dA over the surface bounded by your loop. The sign convention is where most people get tripped up, and not because Lenz's Law is complicated. It's because they forget that the direction of the area vector dA depends entirely on which way you choose to traverse the loop. Pick the wrong traversal direction and your induced EMF sign flips, which then messes up your entire circuit analysis. I learned this the hard way during my first graduate-level electromagnetism practical when I spent three hours debugging a simulation only to find out my loop orientation was backwards. The physics was right, the math was right, the answer was just inverted by 180 degrees across every result.

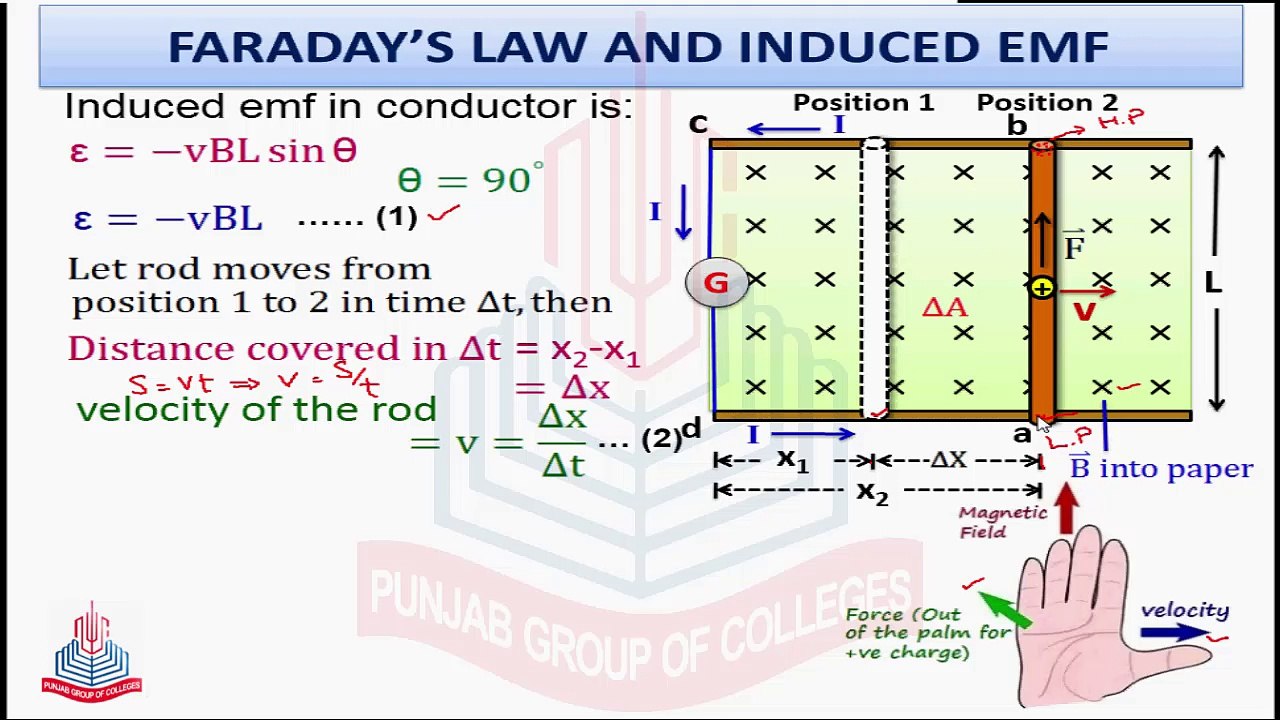

Find The Emf Using Faraday S Law in Practice

The practical method involves four steps, though step four is where the actual work happens. First, define your closed conducting loop or the path you're analyzing. Second, pick a consistent positive traversal direction around that loop. Third, calculate the magnetic flux through the surface bounded by your loop, being careful about whether the field lines pass through in the positive or negative direction relative to your area vector. Fourth, take the time derivative of that flux and apply the negative sign from Lenz's Law to determine the polarity of the induced EMF. The tricky part is step three, especially when dealing with non-uniform magnetic fields or time-varying geometries. In undergraduate problems, the field is usually uniform and the loop is rigid, so the derivative just comes out clean. In real situations, you might have a deformable conductor moving through a spatially varying field, or you might be dealing with a solenoid where the field changes both in magnitude and in the effective area it threads through. That's when you need to be methodical about breaking the flux derivative into its component parts using the product rule or chain rule as appropriate. I worked on a project involving a rotating conducting disk in a magnetic field, essentially a homopolar generator setup, and the flux calculation was far from trivial. The field wasn't uniform, the rotation speed wasn't constant, and the effective area changing with time depended on the angular position. What saved me was parameterizing everything in terms of the rotation angle theta and expressing B as a function of radial position r, then integrating over the instantaneous sector of the disk that was effectively cutting flux. The resulting EMF had a time-dependent term that involved both the angular velocity and its derivative, which you wouldn't catch if you just plugged numbers into a formula without understanding what each term physically represented.

Common Mistakes That Cost Me Hours of Debugging

One persistent issue people run into is treating magnetic flux as if it's always B times A. That only works when the field is perfectly uniform and perpendicular to the surface. If your field has any angular dependence on the surface, or if the surface itself is curved, you need to set up the integral explicitly. The flux is the surface integral of B dot n-hat dA, not a shortcut multiplication. I've seen students lose points on exams and in lab reports for skipping this, and honestly, I've done the same thing when I was rushing through calculations under deadline pressure. Another subtlety that doesn't get enough attention is the distinction between the induced EMF and the actual current that flows. Faraday's Law gives you the EMF, but the current depends on the resistance of the loop, which might itself be changing with temperature or deformation. In some high-power applications, the induced currents heat the conductor, changing its resistance, which changes the current, which changes the magnetic forces, which changes the geometry. That feedback loop can make the simple form of Faraday's Law insufficient on its own, and you end up needing to couple it with thermal and mechanical equations to get a realistic answer. There's also the question of what counts as the loop when you have multiple conductors or overlapping circuits. In a transformer with a primary and secondary winding, the flux through each turn of the secondary isn't necessarily the same as through each turn of the primary, especially if there's leakage flux. The mutual inductance captures part of this, but if you're doing a detailed analysis of a multi-winding system, you need to account for the flux distribution across all windings individually. A rule of thumb I use is to always draw the actual physical paths of every conductor before you start calculating flux, because the mathematical loop you define in your head might not match the physical reality you're trying to model.

When Faraday's Law Falls Short

The law assumes a quasi-static regime where the dimensions of your system are small compared to the wavelength of any electromagnetic radiation involved. If you're working at radio frequencies or with fast transient pulses, the assumption that the electric field is purely induced by a changing magnetic field breaks down, and you need to bring in the full Maxwell-Faraday equation alongside the other Maxwell equations. In those cases, the simple flux rule underestimates or mischaracterizes the induced EMF because displacement current and radiative effects become significant. For most circuit-level work below about 100 megahertz, this isn't a practical concern, but it's worth knowing where the boundary is so you don't apply the formula outside its valid range. Quantum effects also come into play at very small scales, where the Aharonov-Bohm effect demonstrates that a charged particle can be affected by electromagnetic potentials even in regions where the magnetic field is zero. This doesn't invalidate Faraday's Law, but it shows that the classical description has limits, and in precision measurement applications like SQUIDs or quantum interference devices, you need a quantum mechanical treatment rather than a classical flux calculation. For most practical engineering work, whether you're designing a generator, analyzing electromagnetic interference, or calculating the voltage induced in a cable by a nearby lightning strike, Faraday's Law with careful attention to flux definition and loop orientation will give you a reliable answer. Just remember to verify your signs, set up your integrals properly when the geometry gets complex, and know when you've reached the edge of where the classical approximation holds. The method works well when you respect its assumptions, and it fails quietly when you don't.
