What You're Actually Looking At

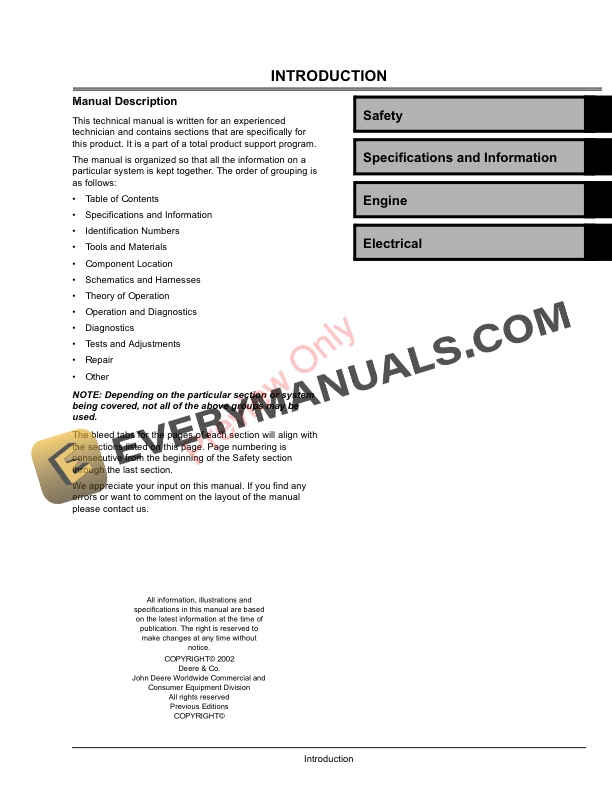

A Generator Technical Manual Calibration Manual is essentially a factory-authored reference document that tells technicians exactly how to verify and adjust a generator set's critical parameters. It covers things like voltage regulation, frequency response, fuel timing, and excitation settings. Manufacturers include these so you don't have to guess when something reads out of spec. Most people just call it the cal manual. The problem is finding a usable one. Every OEM packages theirs differently. Cummins, Caterpillar, Kohler, MTU, Generac — each has their own format, terminology, and page layout. Some are thorough. Some skip over details that really matter in the field. I've spent years tracking these down for clients who can't find theirs after a service technician took the original and never sent a scan back.
Where to Find a Generator Technical Manual Calibration Manual
The most reliable route is going straight to the manufacturer's website. Caterpillar has a dedicated section for literature downloads. Cummins Power Generation provides PDFs through their dealer portal. Some of these require you to register or prove ownership, which is fair but frustrating if you're buying used equipment. If the official route isn't working, aftermarket publishers like ITT Professional Services and ServiceManuals.com compile comprehensive databases. They're not free, but they cover models that manufacturers have quietly dropped from their public sites. A complete calibration manual for a 500kW Caterpillar C18 will set you back roughly $40 to $60 depending on the format. I also keep a folder of direct contacts at local dealerships. Sometimes the quickest path is calling the parts or service department and asking for the calibration section of the manual for a specific serial number. They will usually email you the relevant pages within a day. This works especially well for older gensets where the official download links may have been removed.
There's also a less clean option — random document-sharing sites and forums where people upload scanned copies. I won't link any of those. The quality is hit or miss, and some of the files I've seen have corrupted pages or wrong model numbers pasted into the text. Using the wrong calibration spec because the PDF was mislabeled has caused real problems in the field. I learned that the hard way on a 2005 Onan QDFE unit where someone had mis-catalogued the file as a CUE model instead of an SC-AC controller variant. The voltage trim settings were off by nearly ten percent. Took me two visits and a borrowed Oscillophone to catch it.
Get the Full Details
How Calibration Actually Works in Practice
Calibration isn't just turning potentiometers until gauges look right. The process follows a specific sequence that matters. Skip the order and you'll chase your tail for hours. The standard approach starts with mechanical checks. Fuel system condition, coolant levels, belt tension, and air filter status all affect readings. You can calibrate voltage regulation on a generator that's running rich or starving for air and it will still look fine on paper while failing under load. So the manual always has you verify mechanical health first, then move to electrical parameters. Frequency calibration comes next. You adjust the engine governed speed to hit the target RPM at no-load, which translates directly to Hz output. A 1800RPM generator should read 60Hz. If it's at 1750RPM it'll read 58.3Hz and any sensitive connected equipment will fault out. The cal manual gives you the adjustment procedure for the throttle linkage or the electronic governor depending on whether your set is mechanical or digital.
Then you move to voltage regulation. This is where most people get stuck. The AVR — automatic voltage regulator — needs to be adjusted in a particular order. Set the voltage trim pot first while running at rated RPM with no load. Then check the droop compensation if your generator feeds a paralleled system. Droop settings that are too aggressive will cause circulating current between parallel units. I once saw two 750kW gensets pulling 40 amps of reactive current against each other because the droop was set to 5% when the manufacturer spec for that application was 2%. The cal manual has the table for this. You just have to know where to look. Excitation calibration is another step people skip. The residual magnetism in the rotor has to be within tolerance. If it's too low, the AVR won't build voltage properly. Some manuals tell you to flash the exciter field with a 12-volt battery if voltage won't build. Others warn against it. The correct approach depends entirely on your generator design. Older brushed alternators can take a gentle flash. Permanent magnet exciter systems and some brushless designs can't. The manual will specify. Read the right section.
Common Mistakes That Waste Your Time
The biggest issue I see is people using a cal manual from a different model year without checking the revision. Manufacturers update specifications regularly. A 2018 cal manual for a Cummins C9 won't match the 2022 version of the same base model if they changed the AVR supplier or updated the governor mapping. The part numbers in the manual might not match your actual hardware. Always verify the revision date against your generator's production date stamp, which is usually on the data plate or in the service records. Another frequent problem is assuming the cal manual applies to the controller as well as the generator. Many people confuse the generator end calibration specs with the controller configuration settings. The Controller User Manual is a separate document. The cal manual covers the alternator and engine. The controller settings — transfer switch timing, undervoltage thresholds, hour meter reset procedures — live in the controller documentation. Mixing these up leads to wrong adjustments and sometimes trips protection circuits. There's also the issue of incomplete documentation from third-party sellers. If you bought a reconditioned generator, the previous shop may have done modifications — larger alternators, different controllers, aftermarket governors. The cal manual for the stock configuration won't account for those changes. I've seen setups where someone swapped to a newer Stamford alternator on an older frame and the existing cal manual's excitation curves were completely wrong for the new winding. You end up having to cross-reference the new alternator's manual instead.
I should also mention the limitation of paper manuals in a digital world. Many modern generator sets use programmable logic controllers with stored calibration parameters that you adjust through the HMI interface. The old screwdriver-and-multimeter approach from the manual doesn't always apply. You need to understand the controller menu structure. The physical manual might show potentiometer locations that no longer exist on your unit. This isn't a flaw in the manual — it's a gap between the documentation and the actual hardware evolution. The workaround is always to pull the controller model number from the plate, find the controller-specific programming manual from the OEM, and merge that with the generator cal manual. It takes extra time but it's the only way to get accurate results on hybrid setups.
What a Proper Calibration Session Looks Like
A full calibration run on a typical 250kW standby generator takes about 90 minutes to two hours if you have the right tools and the manual open to the right sections. You'll need a calibrated multimeter, a true-RMS clamp meter, a frequency counter or oscilloscope for waveform analysis, and ideally a load bank to verify performance under actual demand. Start by recording baseline readings before making any adjustments. Write down the voltage, frequency, excitation current, and fuel trim values at no-load and at partial load if you have a load bank connected. These numbers become your reference point. If you adjust something and the readings go in the wrong direction, you can back out to the baseline rather than guessing where you started. The manual will have a troubleshooting flowchart for common calibration failures. Things like no-voltage condition, voltage instability, frequency drift, and unbalanced output. Follow the flowchart exactly. Don't jump ahead. I've watched technicians skip three diagnostic steps and replace an AVR that was perfectly fine because they didn't trace the failure path methodically. The cal manual's flowchart exists because someone else already made that mistake and documented the fix.
After calibration, document everything. Date, readings before and after, adjustments made, technician name. This becomes part of the permanent service record. Future calibrations will be faster because you'll have a history of what values your specific unit runs at. Generators drift over time. Knowing your baseline means you can spot deviation early instead of discovering it during a power outage when it matters most.
When the Manual Isn't Enough
Sometimes you'll run into edge cases that the cal manual doesn't cover. This happens most often with gensets that have been modified, repaired with non-OEM parts, or installed in environments outside the manufacturer's design parameters. High altitude is a common example. A generator rated for sea level will derate significantly at elevation, and the standard cal settings won't produce optimal performance. The manual may have an altitude correction chart, but it won't tell you how to adjust the fuel-air mixture on a specific aftermarket turbo setup. Another scenario is parallel operation with mismatched units. The cal manual for a single generator doesn't address load sharing dynamics between different makes or even different generations of the same brand. You'll need supplementary documentation on paralleling controls and droop settings. This information sometimes lives in a separate application manual rather than the standard cal manual. If your generator is beyond 20 years old and the OEM has discontinued support, the cal manual may be impossible to find officially. In that case, your best option is scanning what you can from existing copies in library collections or professional networks. The Institute of Electrical and Electronics Engineers has archives of older generator standards that can supplement missing sections. Industry forums like EngineForum and GeneratorForum occasionally have members who've archived vintage documentation. These sources aren't perfect but they're better than nothing when you're dealing with obsolete equipment.
The bottom line is that a Generator Technical Manual Calibration Manual is a starting point, not a complete solution. It gives you the baseline procedures and manufacturer specifications. But real-world applications introduce variables that no single document can fully address. The skill comes from knowing when to follow the manual exactly and when to adapt based on what you're actually seeing on the equipment in front of you.
