Getting Your Parts Right on the First Try
I used to work in industrial equipment procurement for about twelve years. The worst invoices always came back for the same reason: someone grabbed a part number off a diagram without checking the revision, the sub-assembly, or whether that particular serial number block actually used the variant shown. A single letter change in a part number can mean the difference between a $42 gasket and a $3,200 machined housing that looks identical at a glance. What most people mean when they talk about an Illustrated Parts Manual is a document that maps every component of a machine to its part number through exploded-view diagrams. It is not a repair manual. It will not tell you how to rebuild the transmission. It will tell you what the transmission contains, in what order those contents stack, and how to order each piece individually. That distinction matters more than people realize.
How an Illustrated Parts Manual Actually Works
Every entry in a parts manual has at least three things: a callout number tied to the diagram, a part number, and a quantity per assembly. The callout number is purely visual. It means nothing on its own. The part number is what you actually need. The quantity tells you how many of that part go into the referenced sub-assembly. If a manual lists quantity one for a bolt and you are replacing the entire bolt pack on ten machines, you need ten bolts, not one. Manufacturers organize these manuals by engine serial number, frame serial number, or model designation. This is where most people get burned. A 2019 model year machine can have two different serial number ranges that use completely different part numbers for the same physical component. The part you ordered from the diagram will arrive and not fit because your machine sits in the other serial range. The manual itself will not warn you about this unless you cross-reference the serial number table that lives in the front matter. Here is something beginners miss entirely: the illustrated parts manual for your equipment is usually grouped into sub-assemblies first, then individual components. A hydraulic pump is one sub-assembly with its own parts list. The pump body, the gears, the seals, the mounting hardware—all of it appears as nested structures within the overall machine diagram. When you are looking for a seal kit, do not search the top-level diagram. Drill into the sub-assembly for that pump. The top-level illustration often shows the assembled pump as a single item with a single part number for the whole unit, which is useless if you only need the internal seals.
Where to Find and Access These Manuals
OEMs publish their parts manuals on manufacturer websites, usually behind some kind of account registration. Caterpillar, John Deere, Cummins, and a dozen others all run their own portals. The information is free but you sometimes need to create an account and register your equipment to unlock certain manuals. Third-party aggregators exist but the PDFs are often several revisions behind, sometimes two or three years old. If your machine is still under warranty, use the official channel. If it is out of warranty and you just need to identify a part, a scanned copy from a forum or archive site might save you thirty minutes of registration navigation. Many manuals are also available through industry-standard platforms like ETSParts, Machineryzone, or even directly from dealership parts departments. The dealership route is slower but more accurate because a real parts person can verify your serial number against their internal tables. I learned to stop trusting online diagrams for anything above a $500 part without a second confirmation from a dealer parts counter. The savings from avoiding a wrong-order return far outweigh the twenty minutes it takes to place a verification call.
Get the Full Details
The Serial Number Problem Nobody Talks About
I ran into this on a Kubota M7 series tractor one Tuesday afternoon. The manual showed a fuel filter housing with part number 61100-01234. I ordered four. They arrived and did not thread correctly. The housing looked right. The threads were slightly different. I went back to the manual and found the serial number cutoff table on page three. My tractors sat at serial numbers that fell after a mid-production change where Kubota switched the fuel filter housing thread pattern. The diagram had not been updated in the PDF I was using because it was a 2018 revision and the change happened in late 2020. The corrected part number was 61100-01234-R. That tiny R suffix is the difference between a usable part and a paperweight. This happens constantly across every brand. Engine rebuilds change part numbers within a single model year. Frame modifications do the same. Always check the serial number range table before ordering anything critical. If the manual does not include a serial number table, assume it is outdated and look for a revised edition.
Reading the Diagrams Correctly

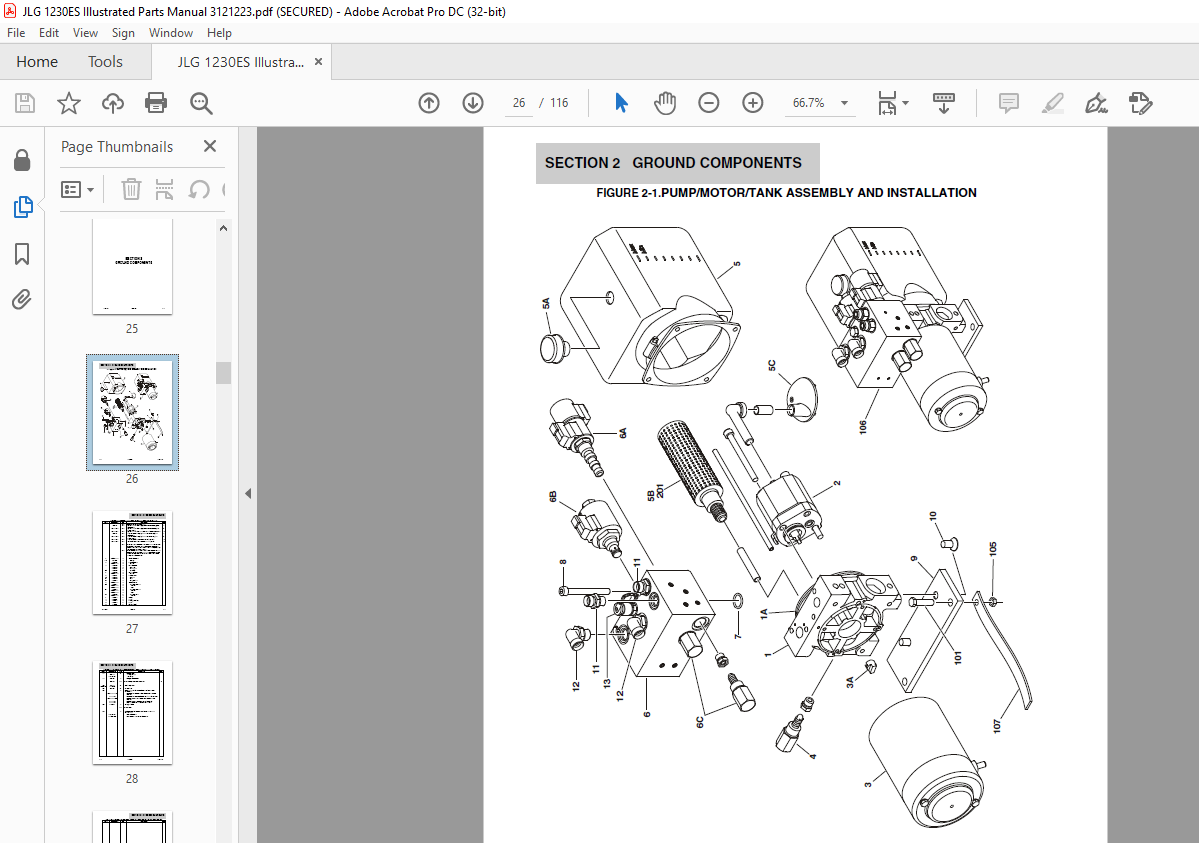

Exploded-view diagrams separate every component radially outward from the centerline. Each part floats in space in the drawing. The callout lines point from the part to its reference number. Read the reference number, then find that same number in the parts list table. Do not assume the position of a part in the diagram corresponds to its position in the parts list. The table is alphabetical by part number or sequential by callout number, not by spatial arrangement in the drawing. Sometimes a single callout number refers to a group of parts sold together as an assembly. This is called a group assembly or kit. The kit part number replaces the individual component numbers. If you order the kit, you get everything inside it. If you order the individual numbers instead, you might miss a washer or a retaining clip that is only sold as part of the kit. This is intentional. Manufacturers make money on kits because they bundle low-margin small parts with higher-margin larger ones.
When Illustrated Parts Manuals Fail You
They fail in two main ways. First, they become obsolete quickly. If a manufacturer runs a redesign mid-production, the printed or static PDF manual does not reflect it until a new revision drops. This is especially common with engines, where emission compliance changes drive frequent component swaps. Second, generic aftermarket diagrams often omit proprietary fasteners, special washers, and seal types. The diagram will show the bolt but not the torque specification or the thread-locking requirement. The parts manual will rarely include installation torque values unless it is a combined service and parts manual. Check whether your manual is labeled as a parts-only publication or a service-manual hybrid. The label is usually somewhere in the document header or on the cover page. If your equipment is older than ten years and the OEM has discontinued support, you may need to rely on third-party reproductions. These are made by companies that scan original manuals and reformat them. They are serviceable but not authoritative. Cross-reference any critical part number with a secondary source, ideally a current dealer catalog or a verified aftermarket supplier's own diagram.
A Practical Workflow That Saves Time
When I needed parts, I followed a specific sequence. First, locate the machine serial number and engine serial number. Second, open the correct manual revision for those numbers. Third, find the relevant system sub-assembly, not the top-level diagram. Fourth, record every part number with its callout reference and quantity. Fifth, cross-check the part numbers against a dealer's live inventory system before placing any order. Sixth, if a part is backordered, check whether a superseded part number replaced it and verify the supersession was active for my serial number range. This took me about twelve minutes per order versus about forty-five minutes of back-and-forth when I skipped steps five and six. The most useful habit is keeping a running spreadsheet of part numbers you order regularly. Machines wear similar parts on similar schedules. A water pump seal on a diesel engine tends to be replaced every three thousand hours regardless of which batch it came from. Having your own master list prevents re-searching the same diagram repeatedly and reduces the chance of picking up a variant part number you happened to glance at during a previous search.
Common Pitfalls to Avoid
Do not confuse part numbers across different model families even when the components look identical. A valve cover gasket from one engine family may match another visually but have a different material compound or edge profile that affects sealing. Do not assume quantity one in the manual means you need one piece. Some sub-assemblies list one gasket but the actual repair requires two gaskets from different reference numbers. Do not ignore revision dates on PDFs. A manual dated 2016 for a machine produced in 2023 is almost certainly incomplete. Do not use the diagram alone for reassembly. The illustration shows spatial relationships but not installation sequence, torque specs, or sealant requirements. Those live in the service manual, not the parts manual.
Final Notes on Usage
The illustrated parts manual is a reference tool, not a decision-making tool. It tells you what exists. It does not tell you what is wrong, what should be replaced, or whether a used part is acceptable. For that you need the service manual, the technical bulletin database, and, when possible, a mechanic who has actually torn down the component you are researching. Use the parts manual to identify and order. Use the rest of your resources to decide whether ordering makes sense.
