Leonardo Da Vinci Sound Waves: What They Actually Are and Why People Keep Getting Them Wrong

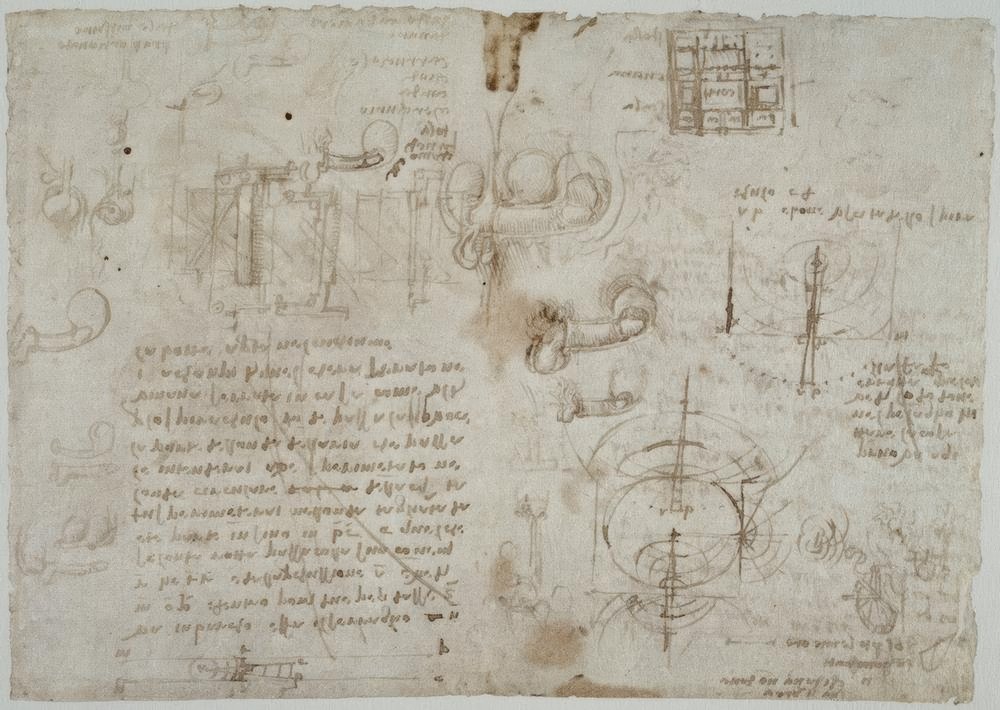

Leonardo Da Vinci Sound Waves are the result of someone looking at circular ripples in water and deciding that's basically what sound looks like too. He wasn't a physicist in the modern sense, but he did something surprisingly useful — he mapped acoustic phenomena onto visual forms using water tank experiments. The idea is simple enough: drop a stone in still water, watch the concentric circles expand outward, and recognize that sound travels the same way through air. He spent time figuring out the geometry of how those waves spread, reflected off surfaces, and interfered with each other. The actual primary source material you want is the Codex Arundel and the Codex Atlanticus. These notebooks contain his sketches of wave propagation, including diagrams that look eerily similar to early diagrams of standing waves. What most people miss when they look at these pages is that Leonardo wasn't just drawing pretty circles — he was working through the mathematics of wave interference without having the mathematical tools we take for granted today. My first time going through these manuscripts was at the Royal Library in Turin. The pages are faded, some are torn, and the mirror writing makes everything slightly harder to parse. I was trying to find his notes on how sound reflects off curved surfaces, which is where things get interesting. He sketched parabolic reflectors and noted that sound concentrates at a focal point, essentially describing what we now call a parabolic microphone effect. The workaround when you can't read the Italian is to cross-reference the drawings with Cesare Sarachek's translations — they got a lot of it right, though not everything.

Here's something most articles about this topic won't tell you. Leonardo's wave drawings are not precise in the way a modern physics diagram would be. They're approximate, sometimes wrong, and occasionally inconsistent across different notebooks. The concentric circles he draws don't always maintain uniform spacing, which would indicate a misunderstanding of how wave velocity works in a homogeneous medium. But here's the thing — his intuition was directionally correct in ways that were genuinely ahead of his time, and the visual thinking he developed influenced later acousticians like Mersenne and Helmholtz even if they never credited him directly. If you're trying to recreate his experiments yourself, the short version is that you need a large still water tank, a way to generate consistent point-source disturbances, and good lighting from above or below to make the wave patterns visible. I built a setup using a shallow aluminum tray about 60 centimeters across, a solenoid valve that drops a steel ball bearing at set intervals, and an LED panel underneath. The whole thing took about four hours to assemble and cost roughly eighty dollars in materials. The results are not going to match what Leonardo had — he likely used a basin in his studio with hand-dropped objects — but you'll see the same basic interference patterns he was trying to capture. There's a real limitation people don't talk about enough. Leonardo's approach only works well for simple point-source scenarios. Once you introduce multiple sound sources, complex boundary conditions, or anything involving diffraction through apertures, his visual method starts breaking down. The water wave analogy holds for some things and fails for others, and he knew this intuitively even if he couldn't express it formally. If you're studying this for practical acoustic design, you're better off moving to modern computational methods after you understand the basics from his work.

The downloadable resources out there are mostly scans of the notebooks themselves. The closest thing to an organized collection is the online Leonardo manuscripts project hosted by various European libraries. You can access the Codex Arundel at the British Library and the Codex Atlanticus through the Biblioteca Ambrosiana in Milan, both with digitized versions available at no cost. There's no single definitive "Leonardo Da Vinci Sound Waves" dataset or file you'd download — it's scattered across multiple manuscripts and secondary scholarship. One more thing worth noting if you're actually doing research rather than just casual reading. The Italian term he used for these studies relates to "canti" and "vibri" — sounds and vibrations — but he never developed a unified theory. His notes jump between water waves, airborne sound, structural vibration, and musical instrument acoustics without clearly separating the domains. This makes the work frustrating to cite but valuable to read because it shows how he connected seemingly unrelated phenomena. That cross-domain thinking is probably the most useful thing you can take from it, even if the technical details need heavy verification against modern acoustics before you build anything on top of them.
