Working With a Leupold Scope on a 350 Legend rifle
Most people buying a Leupold scope for a 350 Legend are hunting whitetail in thick cover at distances under 150 yards, usually less. The 350 Legend is a flat-shooting straight-wall cartridge that does its best work at short range, and Leupold's optics for it tend to be simple: low-power variable optics like the 1.75-5x20 or 2-7x32, sometimes a fixed 4x with an illuminated reticle. The manual itself is usually a slim booklet covering mounting torque specs, turret functions, and warranty registration. It's not a document you'll reference often once everything is zeroed, but it matters when you're setting up the mount for the first time. I picked up a Mark 5 HD 2.5-15x44 for a 350 Legend build a few years back and honestly barely opened the manual past page three. The useful stuff is buried in the mounting section. Leupold specifies torque values for their scope ring screws, and they are not suggestions. For their standard duplex rings it's typically 18 inch-pounds, sometimes 15 for smaller diameter tubes. Over-torquing those screws is how people crack scope caps or deform ring halves without realizing it until point of impact shifts by several inches at 100 yards. The actual manual covers things like parallax adjustment on the models that have it, how to use the TZR turret if you're running a scope with zero-reset turrets, and the duplex reticle illumination settings. The illumination on Leupold scopes uses a dial on the objective bell or an EV (Extra Variable) knob depending on the model. It's straightforward but easy to fumble if you're wearing gloves in cold weather. I learned that the hard way one November morning when I couldn't distinguish the click of the illumination dial from the ambient noise and ended up with the reticle set to maximum for an hour before I noticed my night vision was washed out.
Setting Up the Optic Without Guessing

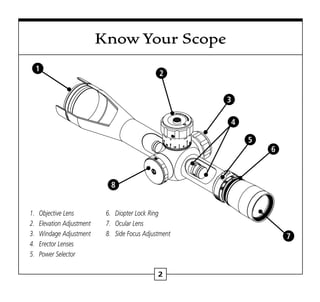

Start with the manual open to the diagram that shows your exact scope model. Leupold uses different ring combinations and eye relief specs across their product lines, and assuming one model works the same as another gets people in trouble. The Mark 5 HD needs roughly 3.5 to 4 inches of eye relief depending on the tube diameter. If you mount it too far forward, the recoil ring will dig into your eyebrow every time you shoot. That's not a minor annoyance, it's a painful lesson that takes about three rounds to teach you. Use a quality torque wrench, not a hex key you hope is tight enough. I recommend a small click-type torque wrench rated for inch-pounds, the kind mechanics use for small engine work. They run about twenty dollars and save you from either loose rings or crushed components. Place the lower ring bases on the rail first, finger-tight, then set the scope in and torque the bases down to spec before adding the upper halves. This gives you a chance to center the scope vertically and adjust for eye relief before you lock everything in place permanently. The manual also includes a chart for MOA versus inches at various distances. For the 350 Legend, most shooters zero at 100 yards and treat 200 yards as the practical outer limit anyway. The cartridge drops roughly 6 to 8 inches by 200 yards depending on the load and barrel length, which is why many hunters just keep their aim centered on the vital zone out to about 175 yards without touching the turrets. If you're doing anything beyond that, you're pushing the design envelope of a cartridge that was never intended for long range.
A Real Problem I Hit and How I Fixed It
On a 350 Legend with a Leupold VX-3i 2.5-8x32, I had an issue where the elevation turret would not stay at the top click after zeroing. I'd shoot ten rounds, check the groups, and find the point of impact had dropped about two inches. The manual lists a locking mechanism for the turret, but Leupold's design on that particular model requires you to align the detent before torquing the ring screws down fully. I was tightening the rings unevenly, which shifted the tube slightly inside the rings and allowed the turret assembly to rotate under recoil. The fix was simple once I understood the sequence. Set the elevation turret to the top click, apply a small amount of blue Loctite to the turret shaft threads, torque the ring bases evenly in a cross pattern, then recheck zero and confirm the turret locks at the top position. I also switched to Leupold's standard low rings instead of the medium ones I'd originally bought, which reduced the amount of side load on the tube. The scope has stayed put ever since. I've put maybe two hundred rounds through it in that configuration now.
Get the Full Details
What the Manual Doesn't Tell You
Leupold's warranty process is generous, but the manual doesn't emphasize that you need to register the scope. Without registration, proving purchase date becomes a paper chase if something goes wrong. There's also no mention of the fact that Leupold's duplex reticle, while excellent for quick target acquisition, is not ideal for range estimation at anything over 200 yards because the stadia lines aren't calibrated for it. If you ever find yourself needing to judge distance, get a rangefinder. The 350 Legend loses velocity fast enough past 200 yards that guessing matters less than knowing exactly where the target is. Another thing the manual glosses over: the illumination battery compartment on Leupold scopes uses a CR2032 cell, but the seal isn't perfectly waterproof. I've had water ingress issues on scopes used in heavy rain or when cleaning with a hose nearby. The reticle still works but the illumination gets fuzzy around the edges until the battery dries out. I keep a small desiccant packet in my gun case near the scope now, and I replace the battery every two years regardless of whether it seems dead, because the corrosion from an old leaking battery can ruin the contacts permanently. Downloads are available directly from Leupold's website by entering your scope's serial number. The PDFs are usually labeled by model number, which you can find stamped on the left side of the main tube near the eyepiece. If the stamp is worn or illegible, the serial number on the objective bell will pull up the correct document in their support database. It's faster than searching by name because Leupold has changed model naming conventions over the years and a lot of third-party sites have outdated or mismatched files.
