Understanding Factory Spec Sheets for Heat Pumps

Most technicians never bother looking past the nameplate. They pull the unit, check refrigerant charge, swap a few components, and call it done. That approach works until something doesn't match the original design parameters, and then you're guessing. Factory specs are the baseline that tells you what the unit was engineered to do under standard conditions. Without them, diagnostics become a shot in the dark. A factory spec sheet typically includes rated capacity in tons or BTU, compressor type and model, refrigerant charge amount and type, amp draw at rated load, voltage and phase requirements, coil sizing, fan motor specifications, and operating pressure ranges for both low and high sides. Some manufacturers also list superheat and subcooling targets, which is where things get interesting.

Where to Find Service Manual Heat Pump Factory Specs

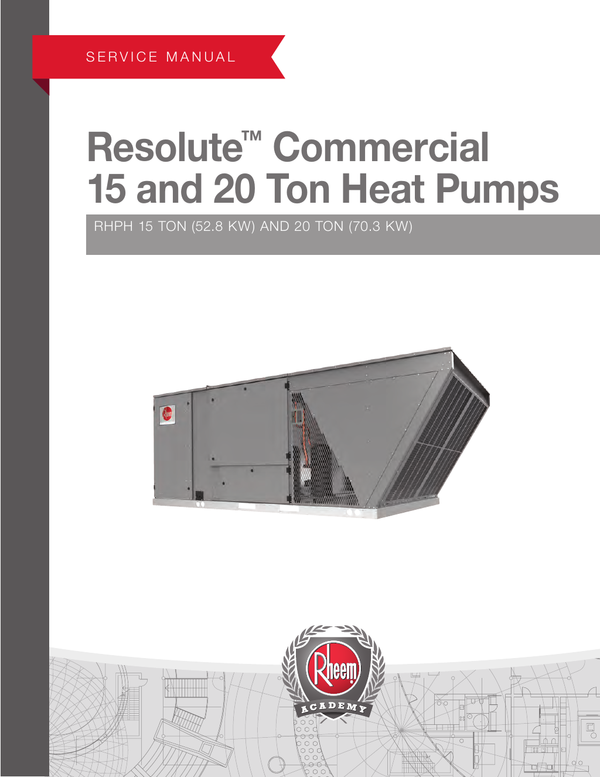

The official route is through the manufacturer's website. Companies like Carrier, Trane, Lennox, Goodman, and Rheem all host technical documents online. You'll need the model and serial numbers. Everything else follows from there. Look for the section labeled "Service Manual," "Installation and Service Instructions," or "Technical Data." These are usually PDFs. I spent three years trying to decode why a Carrier 38MQUA unit kept tripping on high pressure before I realized the factory manual listed the condenser fan motor as 1/3 HP with a specific RPM range. The replacement I'd been ordering was a generic 1/3 HP motor at a different RPM. Airflow was the problem, not the control board. Once I matched the factory spec exactly, the unit ran normal for two years without an issue.

What to Do With the Numbers Once You Have Them

Comparing actual field readings against factory specs is the core of proper diagnostics. Start with amp draw. Run the unit in cooling mode at steady state. Measure each leg of the compressor and fan motors. If the compressor is pulling 15 amps and the spec says 12.4, something is wrong. It could be a restriction, a non-condensable, overcharge, or a failing compressor. If it's pulling 8 amps, you might be undercharged or have an airflow problem. Superheat and subcooling measurements matter more than most people think. Static superheat alone won't tell the whole story if the indoor blower isn't moving the right volume of air. I once pulled a service call on a residential heat pump where the superheat read perfect at 10 degrees and subcooling was at 8 degrees. The unit wouldn't heat properly though. The factory spec called for 35 CFM per ton. That system was delivering 28 CFM because someone had installed a smaller blower motor during a previous repair. The refrigerant side looked fine because the lower airflow naturally adjusted the charge balance. Fixing the airflow fixed the heating. Operating pressures tell another part of the story. A R-410A system in cooling mode should typically show low side between 118 and 135 PSI depending on ambient temperature and indoor wet bulb. High side should run between 280 and 400 PSI under normal conditions. Those aren't hard rules, but they're reasonable boundaries when paired with the factory spec.

Common Pitfalls That Waste Time

Manufacturers sometimes list slightly different specs depending on the production date. A unit made in 2019 might have a different factory charge than the same model number built in 2022 due to EPA regulations and refrigerant adjustments. Always check the date code on the unit and match it to the correct revision of the manual. Using the wrong revision can throw off your charge calculations by half a pound or more. Another issue is mixed model information. Dealers sometimes bundle components from different model lines during manufacturing. The data plate might show one compressor model while the factory spec lists a different one. I've seen this with Goodman and newer AHAM branded units. The workaround is to cross-reference the compressor model directly on the manufacturer's database rather than relying solely on the unit's model number.

Limitations to Keep in Mind

Factory specs are written for ideal conditions. They assume clean coils, proper airflow, correct voltage within tolerance, and a brand new system. Real-world conditions rarely match. A system that reads 5% off factory specs on a hot day might be performing exactly as expected given the actual operating environment. Don't chase numbers that are within a reasonable range of the spec just because they don't match perfectly. Also, some older units don't have factory specs easily accessible online. Carrier stopped hosting manuals for many legacy models after their 2018 website redesign. Goodman's older documentation is similarly scattered. In those cases, the next best option is the unit nameplate data combined with cross-referencing similar models from the same product family and line. It's not as precise but it gets you in the right ballpark.

Practical Workflow for Field Use

Before you even touch the unit, look up the factory specs. Write them down. Then measure everything. Compare. Only after you've done that comparison should you start replacing parts. Too many people replace the capacitor because the unit won't start, never checking if the compressor lockup or the shorted windings were the actual issue. When a system has been modified or repaired previously, the factory specs become even more critical. Someone may have changed the expansion device, swapped the coil, or altered the refrigerant charge. The original specs will show you what deviated from the design intent and where the modification happened.
