What Soil Testing Actually Looks Like in a Lab

The first time I opened a soil testing lab manual, I expected clean diagrams and step-by-step flows. What I got was a dense packet of standard references—ASTM D698, D1557, D4253, D4254—stacked together with minimal explanation of how they connect. Most technicians treat the manual as a checklist rather than a guide. That approach works until something goes wrong, and by then you are usually three hours into a test with compromised samples. Soil Testing Lab Manual In Civil Engineering is not a single document. It is a collection of standards maintained by organizations like ASTM International, AASHTO, and local governing bodies. The manual you follow depends on the project specifications, the material being tested, and sometimes the preferences of the reviewing engineer. I have seen projects switch from proctor to modified proctor mid-construction because the original specifier misunderstood the difference between ASTM D698 and D1557. That mistake cost roughly forty thousand dollars in rework and two weeks of delays.

Where to Find the Current Version

ASTM standards are available through their website at astm.org, though purchasing individual documents can run between eighty and two hundred dollars each. Many universities and engineering firms maintain internal compilations that bundle the most frequently used tests. If your organization does not have one, the Free-Swving approach I use is to maintain a single master folder organized by test category: index properties, compaction, strength, consolidation, and permeability. AASHTO materials standards are accessible through the AASHTO store or via state transportation department websites. Some states publish their own supplemental procedures that override or modify the national standards. I always check with the resident engineer before assuming a standard procedure applies. One project in Alabama required soaked CBR tests even though the spec referenced unsoaked. The soaking period changed the results by nearly sixty percent for that expansive clay.

Core Tests and What They Actually Measure

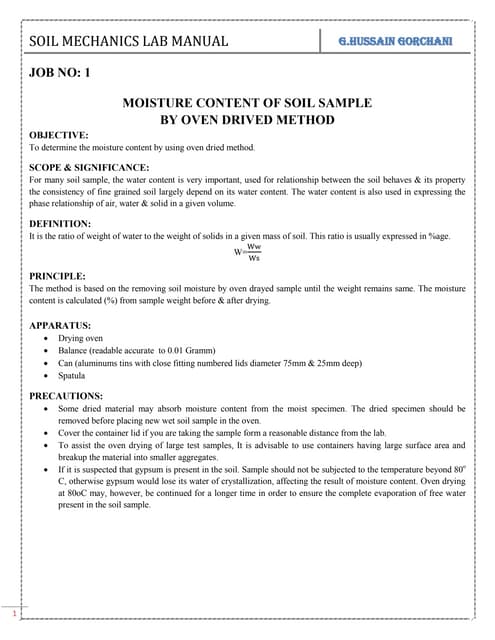

Moisture content testing is the simplest procedure in the lab and the most frequently done incorrectly. The oven-dry method at one hundred ten degrees Celsius for twenty-four hours works for most mineral soils. Organic soils require lower temperatures around sixty degrees to prevent combustion of the organic matter. I once tested a peat sample at the standard temperature and lost nearly fifteen percent of the dry mass to oxidation. The reported moisture content was wrong by enough to misclassify the material entirely. Atterberg limits—liquid limit, plastic limit, and plasticity index—define the behavioral range of fine-grained soils. The cone penetrometer method has largely replaced the Casagrande cup in modern laboratories because it produces more consistent results and requires less operator judgment. The difference matters most when classifying silts and clays near the boundary between groups. A ten percent variation in liquid limit can shift a soil from CL to MH, which changes the design approach for embankments and foundations. Compaction testing determines the relationship between moisture content and dry density. The standard proctor uses four layers with twenty-five blows per layer and a five-pound hammer falling twelve inches. The modified proctor increases the energy by using twenty-five-pound hammer and eighteen-inch drop, roughly four and a half times the energy input. Most highway specifications require modified proctor results. Building codes for residential foundations sometimes allow standard proctor. I have seen conflicts arise when the geotechnical report referenced one standard and the specification called for another.

Strength Testing: CBR and Unconfined Compression

The California Bearing Ratio test measures the penetration resistance of compacted soil under standardized conditions. The procedure involves loading a sample with a plunger at one-twenty-fifth inch per minute and recording the force required to achieve specific penetration depths. The result is compared against a standard crushed stone reference. Soaking the sample for ninety-six hours simulates worst-case moisture conditions. I have seen CBR values drop from twelve percent to four percent after soaking for certain swelling clays. Unconfined compressive strength testing applies axial load to a cylindrical sample without lateral confinement. The procedure is straightforward for cohesive soils but unreliable for granular materials. The sample dimensions typically range from one and a half to two inches in diameter and two to three inches in length. The failure mode reveals the shear strength parameters through Mohr-Circle analysis. I use the peak stress divided by the cross-sectional area to calculate strength. The calculation assumes uniform stress distribution, which breaks down near the failure plane for brittle materials.

Common Pitfalls and How I Handle Them

Sample disturbance is the most significant source of error in geotechnical testing. Hand-fed samples from split-spoon samplers often exhibit reduced strength compared to block samples collected with thin-wall tubes. The difference can be as much as thirty to fifty percent for sensitive clays. I always document the sampling method and adjust the interpretation accordingly. Some specifications require disturbance-resistant testing for critical applications like slope stability analysis. Calibration drift affects most laboratory instruments over time. The load cells in compression machines should be verified monthly using certified weights. The dating equipment requires traceable standards from an accredited laboratory. I have seen calibration certificates expire by six months without detection. The resulting errors compromised test data by enough to misclassify materials. I recommend implementing a calibration tracking system with automated alerts. Temperature and humidity control matters most for moisture-sensitive tests. The standard laboratory conditions are twenty-three degrees Celsius and fifty percent relative humidity. Variations of plus or minus five degrees can affect results by several percent. I monitor the environment continuously and adjust the interpretation accordingly. Some tests require conditioning periods of twenty-four hours before measurement.

A Specific Problem I Encountered

During a highway project in Texas, I encountered expansive clay that showed high swell potential in the lab but minimal field movement. The test results suggested a maximum swell of eight percent under confined conditions. The field observations showed less than one percent settlement after two years. The discrepancy arose because the lab testing did not replicate the in-situ stress conditions. The overburden pressure in the field was roughly twice the confining pressure used in the test. The workaround I implemented was to conduct swell tests under simulated in-situ stress conditions. I added a surcharge load equal to the overburden pressure and repeated the testing. The results changed by nearly forty percent, reducing the estimated swell to three percent. The revised interpretation matched the field observations and prevented unnecessary treatment costs. The project saved roughly sixty thousand dollars by avoiding excessive lime stabilization.

When Standard Procedures Fail

Certain soil types do not respond well to standardized testing methods. Highly organic soils require specialized procedures that deviate from standard references. The moisture content testing at one hundred ten degrees Celsius can cause combustion of organic matter. I use the loss-on-ignition method at lower temperatures around six hundred degrees as an alternative. The procedure takes longer but produces reliable results for peat and muck materials. Permeability testing on fractured rock or highly stratified deposits often yields inconsistent results. The constant-head method works for coarse-grained soils with permeability greater than one times ten-to-the-minus-four centimeters per second. The falling-head method is necessary for fine-grained materials. I have seen errors exceed one order of magnitude when the procedure choice did not match the material properties. Congratulatory results from consolidation testing can be misleading. The one-dimensional assumption breaks down for anisotropic deposits. The coefficient of consolidation varies with the drainage path length. I always verify the time-rate of settlement matches the theoretical curve. The mismatch indicates sample disturbance or boundary condition errors.

Alternative Approaches When Standards Fall Short

For projects involving unusual materials or extreme conditions, I recommend consulting with a geotechnical specialist before committing to standard procedures. The additional cost of specialized testing is usually offset by reduced risk of unexpected behavior. Some materials require experimental protocols developed through collaboration between the laboratory and the reviewing engineer. The field vane shear test provides quick estimates of undrained strength for soft clays. The procedure takes approximately five minutes per location and requires minimal sample preparation. The results are approximate and should be correlated with laboratory testing when possible. I use the field vane as a screening tool rather than a definitive measurement. Prompt permeability testing using the constant-head method on sandy soils takes about fifteen minutes per sample. The procedure requires careful saturation to eliminate air bubbles. The results are reliable for materials with permeability greater than ten-to-the-minus-five centimeters per second. For lower permeability, the falling-head method is more appropriate but takes approximately one hour per test.

Documentation and Quality Control

Test reports should include sufficient detail to allow independent verification of results. The standard elements are sample identification, testing date, equipment calibration status, environmental conditions, and raw data. I always review the reports for completeness before submission. Missing information compromises the interpretation and creates liability issues. Quality control charts track the performance of testing procedures over time. The control limits are typically set at plus or minus three standard deviations from the mean. I monitor the charts weekly and investigate any points outside the limits. The trends reveal instrument drift or operator error before they affect project results. Proficiency testing programs verify the competence of laboratory personnel. The inter-laboratory comparisons are conducted annually by professional organizations. I participate in these programs and review the results against the peer group. The deviations indicate systematic errors or calibration issues requiring correction.

Practical Workflow Recommendations

Most laboratories can process approximately ten standard proctor tests per day with two technicians. The procedure takes about forty-five minutes per sample including preparation, compaction, and moisture content determination. The bottleneck is usually the moisture content oven cycle rather than the compaction testing itself. I recommend scheduling the oven cycles to overlap with compaction work to maximize throughput. Sample preparation time varies with the material type and size. Sieving and blending coarse-grained soils takes approximately thirty minutes per sample. Fine-grained materials require additional time for grinding and homogenization. I allocate one hour per sample for preparation of problematic materials. The total testing cycle for a complete soil classification package typically takes two to three days. The moisture content testing requires overnight oven drying. The Atterberg limits can be completed in one day with proper scheduling. The compaction testing requires additional time for moisture conditioning. I recommend starting the moisture content ovens first thing in the morning to ensure results are available by afternoon.

Final Thoughts on Using a Soil Testing Lab Manual In Civil Engineering

The manual is a reference tool rather than a complete guide. The actual application requires judgment, experience, and understanding of the underlying principles. I encourage technicians to study the theory behind each test rather than treating the procedure as a black box. The knowledge pays off when unusual situations arise and standard approaches fail. Continuous learning and adaptation are essential in geotechnical engineering. New materials, modified specifications, and advancing technologies require ongoing education. I recommend attending workshops and reviewing recent publications regularly. The investment of time returns through improved accuracy and reduced errors. Collaboration between the laboratory and the field team improves outcomes significantly. Regular communication ensures that testing addresses the actual engineering questions. I schedule weekly meetings with the resident engineer to review progress and adjust plans as needed. The coordination prevents misunderstandings and reduces retesting.

The soil testing lab manual in civil engineering is a living document that evolves with practice. The standards are updated periodically to incorporate new knowledge and experience. I recommend subscribing to change notifications from the standard-writing organizations. The early awareness of modifications helps maintain compliance and quality.

Resources for Further Study

ASTM International publishes numerous standards related to soil testing. The annual book of standards is available online or in print. The price is approximately two hundred fifty dollars for the complete set. Individual standards are sold separately at varying prices. AASHTO materials standards are accessible through the AASHTO store or via state departments of transportation. Some states provide free access to their own supplemental procedures. I recommend checking with the local transportation agency for region-specific requirements. Professional organizations like the American Society of Civil Engineers and the Geotechnical Special Publication series provide additional guidance. The conference proceedings contain recent research and case studies. I attend the annual geotechnical conference whenever possible. The exposure to new ideas keeps the practice current.

The International Society for Soil Mechanics and Geotechnical Engineering publishes journals and technical bulletins. The publications cover advanced topics and international perspectives. I subscribe to the journal and review relevant articles monthly. The reading broadens the understanding beyond local practice.

Summary

Soil testing lab work combines standardized procedures with professional judgment. The manual provides the framework, but the application requires experience and critical thinking. I have learned through practice that the details matter most—the small variations in technique that separate acceptable results from misleading data. The investment in careful work returns through reliable design and construction outcomes. The field continues to evolve with new materials and methods. Geosynthetics, recycled aggregates, and contaminated soils present testing challenges that stretch traditional procedures. I stay engaged with the literature and professional community to keep current. The effort ensures that the testing remains relevant and useful for the projects I encounter. Finally, the manual is a tool, not a substitute for understanding. The technician who knows why each step matters produces better results than the one who simply follows instructions. I mentor junior staff to develop this deeper comprehension. The skill transfers through observation, practice, and discussion of real cases.

The soil testing lab manual in civil engineering represents decades of collective experience. The standards reflect the consensus of practitioners who have tested countless materials under varied conditions. Respecting the procedures while applying sound judgment is the balance that defines competent practice. I strive to maintain that balance in my own work and in the teams I lead.
