Why most survey teams skip the paperwork and lose money on it

I spent twelve years running field crews before I ever sat down to write our office procedures. We used to do it the fast way — show up, shoot points, call it done. Then a title company rejected a boundary survey because our field notes didn't meet the state minimums for Monument Recovery documentation. That single rejection cost us about forty thousand dollars in rework and a month of delays. After that, we built something that actually held up. The standards procedures for Surveying And Mapping exist because there is no universal law that says two surveyors working the same parcel will draw the same boundary line unless they agreed on which standards they were following. Different states use different ones. ALTA/NSPS for lender surveys. state-level registration board standards for general practice. ISO 19100 series if you are doing GIS-heavy work or selling data to government agencies.

Standards Procedures For Surveying And Mapping

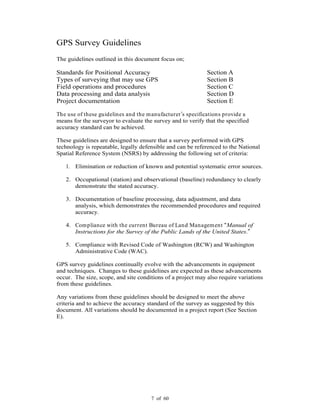

At the core, these are documented workflows that define what precision level applies to a given task, how instruments must be calibrated and checked, what field documentation is required, how control networks are established and adjusted, and how deliverables get reviewed before they leave the office. The specifics change by jurisdiction and by the type of survey being performed. A boundary survey in Texas follows ASPRS guidelines and Texas State Board rules. A construction staking job in California might reference different tolerances altogether. The first thing you need is a project classification matrix. Without one, every surveyor on your team makes their own call about how precise things need to be and what checks to run. That inconsistency is what creates problems later. Define whether a job is a land title survey, a mortgage location survey, an as-built, a construction layout, or a topographic survey. Each one has a different acceptable standard of care and a different tolerance band. Control setup is where most offices cut corners and then pay for it. I have seen people run a total station off a single known point with no check shot, because the project timeline was tight. It worked fine until three months later when the client noticed the garage was four inches out of place on the building permit set. One known point is not a control network. It is a guess with a prism pole. Establish at least two control points with a visible angular intersection, run a check measurement to a third point, and document the residual. If the residual exceeds your project tolerance, you do not proceed until you figure out why.

Calibration schedules matter more than people think. Electronic Distance Measurement corrections drift. Compensation levels shift with temperature. A typical total station needs a full calibration check — t-square test, collimation test, EDMP error check — at least once every twelve months, but in extreme heat or cold that timeline shortens to maybe six months. GPS RTK base station positioning can be affected by multipath from new construction nearby. I had a crew in 2019 where a new metal storage building went up two hundred feet from our base station and suddenly our RTK solutions started showing centimeter-level biases that made no sense until we moved the base. Document when you move it. Update the calibration log. The next person who uses that data will thank you or sue you, depending on whether you wrote it down.

The documentation requirements nobody likes until they need them

Field notes are not an afterthought. They are the legal record of what you actually did. In a dispute, a court will look at your field notebook before it looks at your final plat. If your notes are sloppy or incomplete, the drawing gets thrown out regardless of how accurate it is. Write dates, times, instrument serial numbers, height of instrument, rod height, weather conditions if they could affect measurements, and every single setup location with coordinates or bearings to known points. Note any obstacles you had to work around. Note when you lost lock on your GPS base. Note when you had to re-occupy a point because someone's dog knocked over your prism pole. Monument recovery is a separate documentation requirement that trips people up constantly. If you find an iron pin, a rebar, a concrete monument, or even just a fragment of one, you document its condition, measure to it from at least two inaccessible points, and describe its physical state in the field notes. Found deteriorated. Found obliterated. Found missing. These are technical terms with legal weight. A surveyor who writes "couldn't find the corner" in a notebook has written something that will not protect them in a court proceeding. The exact phrasing matters less than the fact that you addressed it systematically. When you are dealing with Standards Procedures For Surveying And Mapping on a boundary survey, the reconciliation process is the most important part of the job. You measure the existing monuments, you measure the deed distances and bearings, you measure the improvements, and then you analyze which evidence controls under the jurisdiction's legal hierarchy. Most states follow a hierarchy like this: original monuments control over subsequent monuments, natural features control over artificial features, course and distance control when monuments fail, and the original grantor's intent as the overarching principle. This is not negotiable based on what the client wants. It is the law in most places. Your job is to apply it and document how you applied it, not to guess what would make everyone happy.

Adjustment methods and what happens when they do not behave

Least squares adjustment is standard practice for control networks and traverse adjustments now. It is mathematically superior to the compass rule or transit rule for most situations. But it requires good observations. Garbage in, garbage out is even more true with least squares because the software will produce a prettier result and hide bad data behind a distribution of residuals that look reasonable on paper but are actually masking systematic errors. I ran into this in 2021 on a county parcel split project. Our traverse adjustment looked clean — millimeter-level residuals across the board. I was ready to finalize when I noticed that all four of our worst measurements came from setups where the temperature was above ninety degrees and the instrument was in direct sun for the first twenty minutes of occupation. The thermal expansion in the telescope was introducing a systematic bias that the adjustment could not see because it treated each observation as independent. I reoccupied those points after sunset with the instrument allowed to stabilize for thirty minutes, reran the adjustment, and the results shifted by about two centimeters on the eastern leg. That two centimeters was the difference between a clean parcel and one that encroached on an adjacent easement by eighteen inches. Never skip the temperature note in your field book. It is not decorative. Coordinate systems and datums require explicit documentation. State plane zones vary by state. NAD 83 has multiple epochs — 2011.0, 2007.0, 1997.0 — and they produce different coordinates. If you are working with LiDAR or photogrammetry data fed into a GIS platform, the datum shift between NAD 83 and WGS 84 is usually negligible at local scales but becomes relevant over long distances or when merging datasets from different sources. Always state which datum, which epoch, which zone, and which vertical reference your coordinates are based on. A set of coordinates without that information is basically useless.

Deliverables and quality control before the package leaves the office

A finished survey package should include a plat or map, a technical report describing the methods and standards applied, field notes or a summary of them, a control sheet showing all occupied points with their coordinates and adjustments, a monumentation plan showing what was found and set, and a metes and bounds description if the jurisdiction requires one. Some states require an affidavit of service, some require a notice to property owners, some require floodplain verification. Know your state requirements before you start the project, not after you have already drawn the lines. Quality control is a separate step from quality assurance. QA is the process you built into your workflow to prevent errors. QC is the person who did not touch the project looking at it with fresh eyes to catch the error you missed because you were too close to the work. This does not have to be expensive. A peer review where another licensed surveyor spends twenty minutes checking your control calculations and your plat against your field notes will catch the vast majority of errors before they reach a client. I budget four hours of QC time per standard boundary survey project. It has saved us from at least three significant errors per year on average. One thing I wish every junior surveyor understood: tolerances are not suggestions. The precision standard for a Class A boundary survey under ALTA/NSPS is roughly one part in 10,000 for horizontal positioning relative to nearest recorded monument or control point. That means if two corners are a thousand feet apart, your positional uncertainty should be no more than one-tenth of an inch. In practice, with modern total stations and GPS, we routinely achieve better than that. But if you are using older equipment or working in poor conditions, you may not meet that tolerance. In that case, you either upgrade your method or you do not take the job. There is no middle ground where you deliver below standard and pretend it is acceptable.

Common failures and how to avoid them

The most frequent failure mode I see is incomplete monument recovery documentation. A surveyor finds a broken rebar with no cap, measures to it, and puts it on the plat without noting that it is deteriorated and potentially unreliable. Six years later, the rebar is gone and the client has no way to verify where the corner actually was. The surveyor's notes should have recorded the exact measurement to it from stable points so the position can be recovered even if the physical monument fails. Another common failure is coordinate transformation without verification. When you convert coordinates from one state plane zone to another, or from local grid to NAD 83, you are applying a mathematical transformation that can introduce errors, especially near zone boundaries or in areas with significant crustal strain. Run a check point through the transformation and compare the result to an independently obtained coordinate. If they do not match within your project tolerance, investigate before proceeding. LiDAR and drone-based mapping have changed the standards landscape significantly. Photogrammetric surveys follow different precision standards than direct measurement surveys. ASPRS has accuracy standards for large-scale photogrammetry that specify both horizontal and vertical accuracy classes. A Level 1 photogrammetric map might have a horizontal accuracy requirement of ten centimeters, while a Level 2 requirement is five centimeters. These are population-based standards, not individual point standards. Understand which level your project requires and design your flight plan and ground control accordingly. Flying a drone without sufficient ground control points and you will not know your accuracy until you compare your results to something known, by which time you may have already delivered incorrect work.

The biggest limitation of any standards-based approach is that standards lag behind technology. GPS was not widely accepted for boundary surveys twenty years ago. LiDAR is still finding its footing in what constitutes acceptable practice in various jurisdictions. Your procedures should be living documents that get updated when your methods improve or when new standards are published. A procedure document that has not been revised in five years is probably outdated. Review it annually, or whenever you adopt new equipment or enter a new jurisdiction with unfamiliar requirements.
