Understanding Television Service Documentation

I've spent more years than I care to count pulling apart old CRT sets and modern flat panels to figure out why something stopped working. The schematics and operating manuals are where you start, but they are not always as useful as the technicians who wrote them probably intended. Let me walk you through how to actually use these documents instead of just printing them out and filing them under "someday." These documents combine two different things. The operating manual covers user-level information — how to adjust picture settings, connect external devices, run diagnostics, and navigate the menu system. The schematic is a circuit diagram showing every component on the main board, power supply, T-con board, and any daughter cards. Service manuals add test point values, voltage readings at specific moments, and sometimes firmware flashing procedures. Getting confused between these three document types is the most common mistake I see. People search for a schematic when they actually need the service manual, or vice versa. The most useful schematics are the full set, not the snippet Google serves up on a random PDF hosting site. A complete schematic package for a given TV model usually includes the power supply section, the main processing board, the backlight driver circuit, and the T-con board. Some manufacturers bundle these together. Samsung tends to split them across separate documents. LG often includes everything in one larger file but buries the T-con section near the end. Panasonic's approach varies by region and model year, which makes finding the right document even messier.

Where to Find These Documents

Manufacturer service sites are the first stop if your TV brand still maintains a technician portal. Samsung offers their service documentation through the Samsung Members professional channel, though you need a registered service account. LG has their LG Solution Center with downloadable service manuals. Sony's site requires you to enter your specific model number and navigate through several layers before you get to the PDF. Vizio, Hisense, TCL — most of the budget brands have completely abandoned public-facing service documentation. You will not find official schematics for a Vizio M-series from 2018 through any legitimate channel. That means whatever you find online is someone's photograph of a printed page, usually taken in poor lighting, with labels and test points cut off. Third-party sites like SchematicsBoard, ServiceManualsHQ, and various forum archives fill the gap for discontinued models. The quality is inconsistent. I have seen the same schematic posted with three different board revision numbers on the same page. Always verify the board revision against the actual PCB in the TV before you trust any voltage readings. A 2015 Samsung UN55D8000 could have three different main boards depending on the production week, and the schematics diverge significantly on the T-con section. For older CRT and rear-projection TVs, the documents are easier to find because manufacturers kept detailed records. Magnavox, RCA, and Zenith schematics from the 1990s are widely available in scan form. The challenge with those is that the component values printed on the schematic sometimes don't match what is actually on the board due to revision changes that were never documented in the manual.

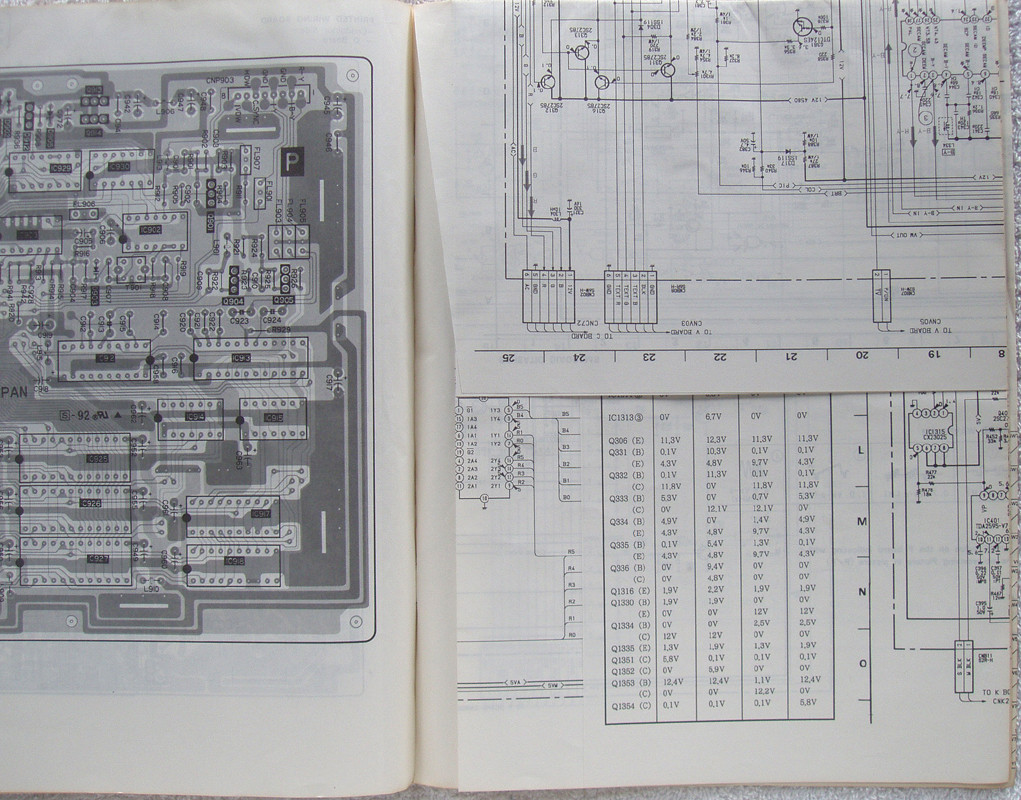

Reading a Television Schematic Correctly

A television schematic is not drawn the way a hobbyist circuit diagram is laid out. It follows a signal flow convention that starts with the input stage and moves toward the output. Power sections are usually separated into their own block diagrams rather than being mixed into the main signal path. This is intentional. When you are troubleshooting a dead board, you need to trace power first, and having the power circuit isolated makes that process faster. Test points are marked with small circles and alphanumeric labels like TP101 or VCC_5V. These are the points where a technician should measure voltage during diagnosis. The service manual lists the expected voltage range at each test point under specific conditions. I found that the most reliable approach is to measure with the TV in service mode, not normal operating mode. Many voltage readings change depending on whether the microcontroller is actively managing the backlight, running diagnostics, or sitting in standby. If you measure a test point while the TV is just turned on normally, you might read a completely different value than what the manual specifies. One thing beginners consistently miss: the schematic symbol for a connector on the board does not tell you the pinout. It shows the connection symbol, but the actual pin assignment is in the wiring diagram section of the service manual, usually a separate page or two. I once spent forty minutes checking components on a main board because I was measuring voltage at the wrong pin of a connector. The pinout on the schematic page did not match the physical connector layout because the schematic uses a logical representation, not a physical one. The service manual's connector diagram solved it in thirty seconds.

A Real Problem I Encountered

Last year I was working on a LG 55UF645T that had a no-power condition. The schematic showed the standby voltage at the main board connector should be 5.0 volts. I measured 0 volts at the connector, which pointed to the power supply. I traced the schematic back through the PSU board and found a suspicious reading on the +5V SB rail. Replaced the culprit capacitor, tested again — still 0 volts. The schematic did not show this particular variant had an updated power supply revision with a different control IC. The board silkscreen indicated REV 1.2, but the schematic I was using was for REV 1.0. I ended up contacting a former LG service technician on a forum who confirmed the revision difference and sent me the updated schematic for that board. The fix was a faulty MOSFET on the new revision, not the capacitor the original schematic pointed to. The lesson: always check the board revision code printed on the PCB itself, not just the model number on the TV back panel. Model numbers span multiple board revisions across the product lifecycle. Using a schematic from a similar but different model is the fastest way to waste an afternoon. Two TVs from the same brand and same year can have entirely different main boards. I have seen people source a schematic for a 55-inch model and apply it to a 65-inch model from the same line, assuming the boards are identical. They are not. The processor, memory chips, and power management ICs are often different between screen sizes even within the same product family. Another issue is assuming that schematic component values are exact. A 100uF capacitor listed on a schematic might actually be a 47uF or 220uF on the real board. Manufacturers frequently update values during production without updating the published schematic. The function stays the same. The value changes for cost or availability reasons. Always verify the actual component value on the board before replacing anything based solely on the schematic number.

Schematic diagrams also do not show physical layout. Two components that are right next to each other on the board might be meters apart in the schematic drawing. This matters when you are trying to trace a fault by following traces visually. The schematic is a logical representation, not a map. You need the board layout diagram or the physical board itself to understand spatial relationships.

Practical Workflow for Using These Documents

Here is the process I use now instead of the one I used ten years ago. I start with the model number and search for the full service manual package, not just the schematic. The package usually includes the schematic, the wiring diagram, the parts list, the disassembly guide, and the error code definitions. Having all of that in one place eliminates the back-and-forth of searching for individual documents. I print the schematic pages I need rather than keeping them on a screen. Paper is faster to annotate with a pencil and easier to flip through while working with both hands on a circuit board. I verify the board revision before I do anything else. I note it down on a scrap of paper next to the schematic. If the board revision does not match the document, I search for the correct revision or look for a later revision number stamped on the PCB. I measure voltages in service mode whenever possible. If the TV will not turn on at all, I check the standby voltage first and work from there. Most modern TVs have a standby rail that is always active, even when the main power is off. If that rail is dead, the problem is almost certainly in the power supply, not the main board. For smart TVs with firmware issues, the schematic is less useful and the service manual's software section is more relevant. Some models require specific USB procedures to recover from a corrupted firmware update. The service manual includes these steps. They are not in the schematic. I have seen people try to fix a firmware brick by probing components on the main board when the solution was a simple button combination during USB recovery.

When Schematics Do Not Help

There are situations where having the schematic will not solve the problem. Proprietary integrated circuits with no published pinouts fall into this category. Some manufacturers encapsulate the processor or control IC in black epoxy with no documentation available. You can see the connections on the schematic, but you cannot determine what each pin does without reverse-engineering or finding undocumented test points. This is more common in budget brands and newer OLED panels where the panel driver ICs are proprietary. Intermittent faults are another case where schematics are frustrating. A loose solder joint, a failing connector, or a thermal-sensitive component will not show up on any document. The schematic assumes everything is working correctly. It does not account for manufacturing defects or wear over time. In these cases, the schematic is a reference, not a solution. You need to physically manipulate the board, apply heat, or use a thermal camera to find the fault. For OLED TVs specifically, the schematic package often excludes the panel driver information entirely. The panel itself is sourced from a different manufacturer, and the driver circuitry details are considered proprietary to the panel supplier. You get the main board schematic and the power supply schematic, but the actual OLED panel control circuit is undocumented. This is a significant limitation if you are working on panel-level repairs rather than board-level swaps.

Television Operating Manual Schematics as a Starting Point

These documents are essential but incomplete. They give you the blueprint of how the TV was designed to work, not how it actually works after years of production changes and component substitutions. The model number gets you the document. The board revision gets you the right document. Experience gets you past what the document cannot tell you. I still rely on the schematics daily, but I treat them as a starting reference, not a definitive guide. The TV in front of you is the final authority, and the multimeter tells you more than any printed page ever will.
