What actually happened when they tried to dig through an isthmus
The Building Of The Panama Canal is one of those projects everyone has heard of but very few people actually understand how brutal it was to pull off. I spent years researching historical engineering records and reading primary documents from both the French and American efforts. What stands out isn't the ambition. It's the sheer volume of unexpected failures. Most people think of it as one continuous effort. It wasn't. The French tried first, starting in 1881 under Ferdinand de Lesseps, who had just finished the Suez Canal. He assumed a sea-level canal would work in Panama too. That assumption killed thousands of workers and ultimately cost the French everything. Malaria and yellow fever ran through the camps like wildfire. The rainfall alone averaged about 100 inches per year in Culebra, which is more than double what Seattle gets. Equipment rotted. Roads turned to mud. The whole operation ground to a halt by 1889. The Americans took over in 1904. They didn't start digging right away. That's the first thing beginners miss when they look at this. The U.S. Army Corps of Engineers spent the first two years fixing the disease problem, reorganizing the workforce, and redesigning the entire approach to a lock-based system instead of sea-level. John Stevens was the chief engineer who pushed for the lock design. George Goethals took over later and finished the job. The canal opened in 1914.
The actual excavation used steam shovels and dump trains in a system that would become standard for large-scale earthmoving. About 200 million cubic yards of material was moved total. The Culebra Cut alone accounted for roughly 100 million of that. The French had used simpler methods and expected hand labor to do most of the work. The Americans brought in industrial-scale equipment and treated it like a manufacturing problem, not a digging problem.
The lock system is the part nobody talks about enough

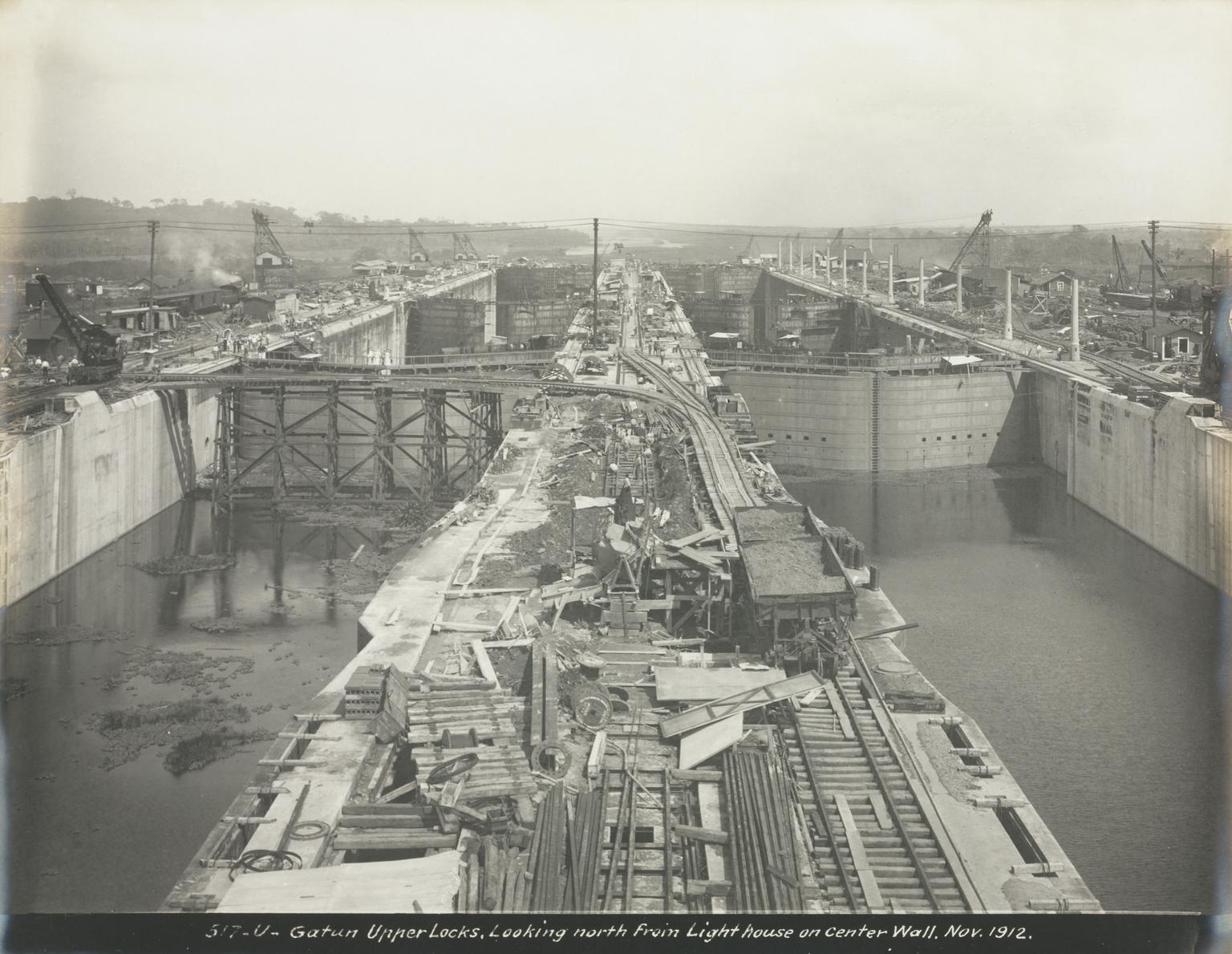

The canal doesn't float ships across an island. It lifts them. The Gaillard Cut (originally called the Culebra Cut) goes up to Gatun Lake, which sits 85 feet above sea level. Ships enter a lock chamber, water fills it, and the ship rises 85 feet. Then it transits the lake. Then it drops 85 feet on the Pacific side through Pedro Miguel and Miraflores locks. The whole lift cycle takes about 2 to 3 hours per direction. The locks are massive. Each chamber is 100 feet wide by 1,000 feet long. That was sized for the Panamax standard, which defined ship dimensions for most of the twentieth century. If a vessel exceeds those limits, it simply cannot transit the original canal. That's why the 2016 expansion added new locks. But the original locks are still the working ones for the majority of traffic. Here's a detail most histories skip: the water supply for the locks comes from Gatun Lake, and every lock cycle uses about 52 million gallons of fresh water. That water is recycled through a system of repetition pools, but it's not infinite. During drought periods, which have become more frequent with climate change, the canal authority has had to impose draft restrictions on transiting ships. Some vessels arrive and can't carry full cargo loads because the water depth in the channel and locks isn't sufficient. This isn't theoretical. It's happened repeatedly since 2023.
Get the Full Details
Excavation challenges that weren't in the textbooks
The Culebra Cut is composed largely of volcanic rock and ancient landslide material. The French hit a zone they called the "Great Slide" and never figured out how to stabilize it. The Americans dealt with it using a combination of drainage tunnels, benched cutting, and removing material from the top of the slide mass to reduce pressure. It was slow, expensive, and required constant monitoring. I ran into a specific problem when I was analyzing historical cross-sections of the Culebra Cut from the National Archives. The published profiles from different years didn't match up consistently. Some showed grades that were steeper than what the construction records claimed was allowable. The workaround was to cross-reference the surveyor logs from the Isthmian Canal Commission with the actual as-built drawings from the contractor files. The discrepancy came from the fact that the French and American surveys used different vertical datums. Once I converted everything to the same reference plane, the data aligned. If you're doing your own research on this, don't trust a single source for measurements. Always check the datum.
What went wrong and what still fails

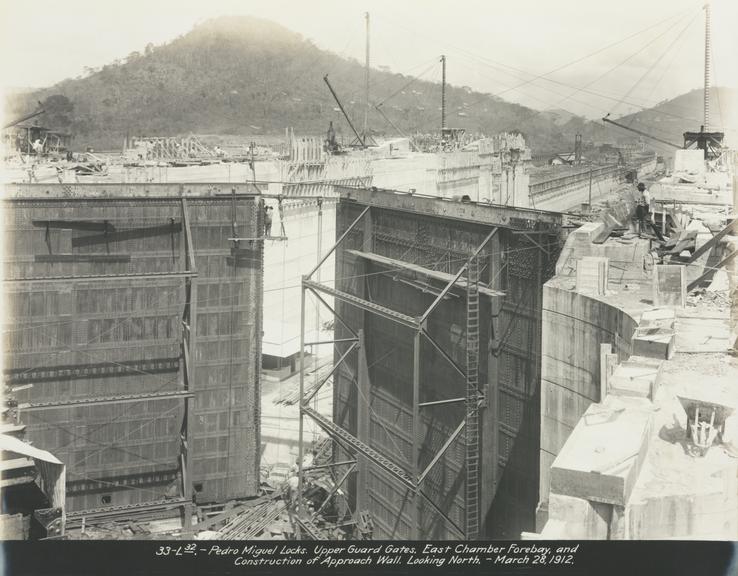

The original canal had a serious vulnerability: it depended entirely on rainfall to fill Gatun Lake. No rain means no transit. The French understood this poorly. The Americans understood it and built supplementary infrastructure, but they still bet heavily on a climate pattern that wasn't guaranteed. The 1917 drought nearly shut the canal down before it even opened fully. The lock gates are another weakness. They're steel and weigh around 600 tons each. The original operating mechanism used counterweights and simple hinge systems. Maintenance is constant. When a gate seal fails, you have to take that lock chamber out of service while repairs are made. It doesn't happen often, but when it does, it backs up ships for days. The biggest current limitation is the width. The original canal channels are narrow. Two ships can pass in certain sections, but in others, only one ship fits. That creates scheduling bottlenecks. The expansion locks are wider, but the channels through the Culebra Cut haven't been significantly widened. You can build bigger locks and still hit a bottleneck at the narrowest point. That's the real constraint now, not the locks themselves.
If you're studying this for academic purposes or just want to understand the engineering, start with the primary documents from the Isthmian Canal Commission rather than secondary summaries. The construction reports have daily logs with specific numbers that tell you more than any textbook. The problem is they're fragmented across multiple institutions. The Library of Congress has some collections. The Panama Canal Archives in Balboa have others. The British colonial office holds correspondence related to the French attempt. No single repository has everything. The French effort is often dismissed as a failure, but they proved that a canal through Panama was geographically possible. They also mapped the terrain, identified the disease vectors, and learned exactly which approaches wouldn't work. Their $287 million loss (about $9 billion in today's dollars) bought the Americans critical information. Without that groundwork, the American timeline would have been significantly longer and more expensive.
