Why we still use this method instead of just running nodal analysis
Most people learn Thevenin equivalents in their second week of circuit theory and then forget about them until a final exam. In practice, this is one of the few tools that actually matters when you are troubleshooting hardware or doing design work. Not because it is elegant, but because it forces you to stop treating a circuit as a black box and actually understand what the load sees. I have spent years looking at schematics where the rest of the board works fine, but a single stage keeps failing under load. Mesh analysis would take you twelve simultaneous equations for a circuit that reduces to a voltage source and one resistor. That reduction is the point.
Thevenins Theorem Circuit Analysis is the practical shortcut
Here is how the method actually works when you need it to work. You pick two terminals where a load connects, remove the load entirely, and look into those terminals from the outside. You calculate or measure the open-circuit voltage across those terminals. Then you kill all the independent sources and find the equivalent resistance looking back in. That gives you the Thevenin voltage and Thevenin resistance. Put them in series and reconnect your load. Done. The open-circuit voltage is straightforward. Apply KVL or nodal analysis to the original circuit with the load removed. Call it Vth. The tricky part is Rth, especially when dependent sources are present.
Dependent sources break the simple approach

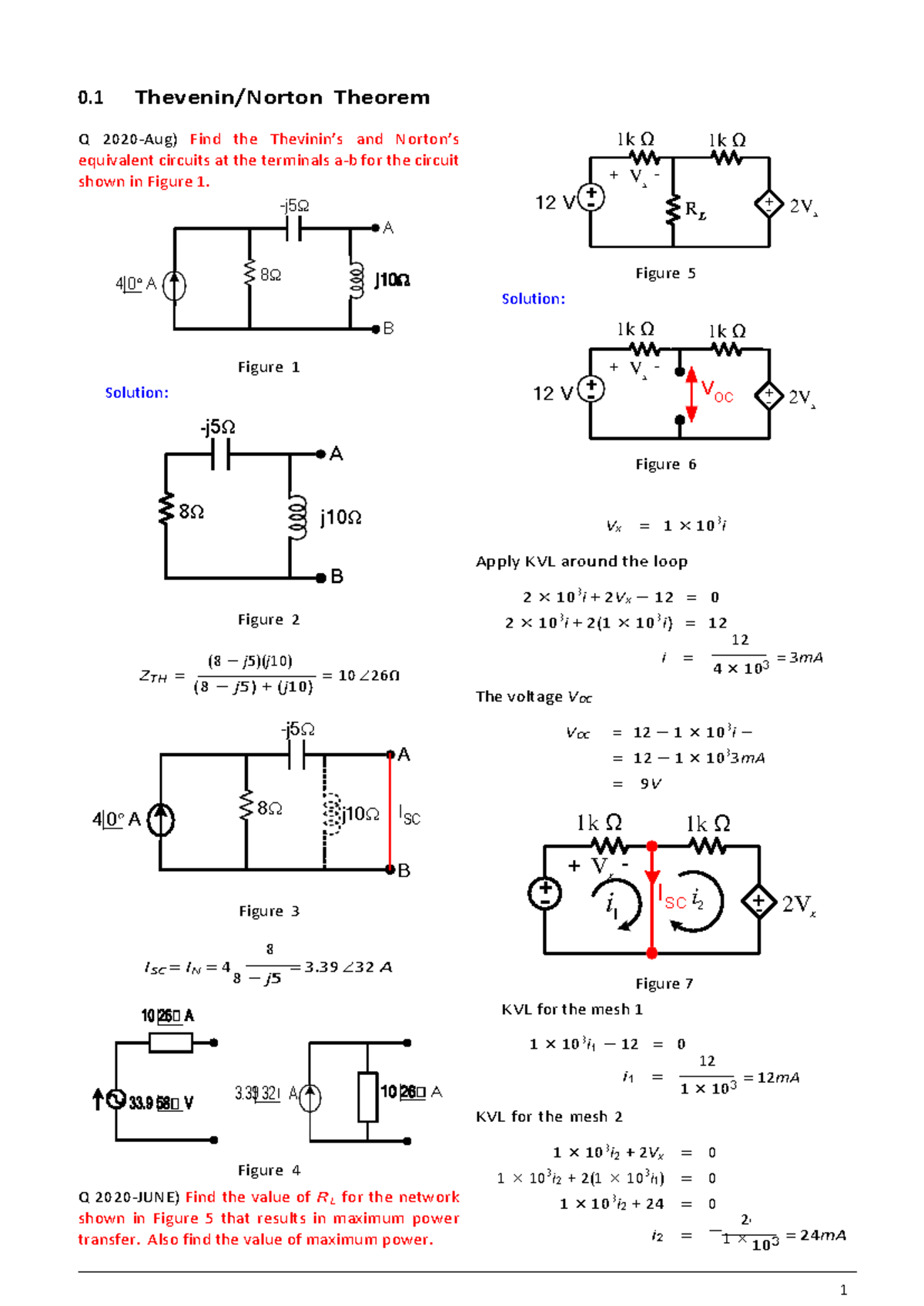

If your circuit contains dependent sources, you cannot just turn off the independent sources and divide voltages by resistances like a normal person. I learned this the hard way on a transistor amplifier stage where the collector current was controlling a voltage source in the feedback network. I tried converting the circuit by inspection and got a negative resistance value that made no physical sense. The fix is simple once you know it. Turn off the independent sources. Apply a test voltage source of one volt at the terminals. Measure or calculate the current that flows. Rth equals one divided by that current. Alternatively, apply a one-amp test current source and measure the resulting voltage. Both methods give the same answer. The key is keeping all dependent sources active during this process. Another approach that works universally is finding both the open-circuit voltage and the short-circuit current. Rth equals Voc divided by Isc. This is useful because sometimes measuring the short-circuit current is easier than setting up a test source, especially in simulation.
Get the Full Details
A real problem I ran into last year
I was analyzing a power supply output stage for a consumer device. The circuit had a voltage regulator, a few filtering capacitors, and a current-sense resistor. When I replaced the load with a fixed resistor, the output voltage dropped by more than the datasheet predicted. I needed the Thevenin equivalent as seen by the load to figure out what was going wrong. The open-circuit voltage measured correctly at 5.1 volts. But when I tried to find Rth by turning off the regulator and looking back, the result was nonsense because the regulator is fundamentally a dependent source. It responds to input conditions and keeps trying to maintain its output. I ended up using the Voc and Isc method. I measured the open-circuit voltage at 5.1 volts, then I placed a very small resistive load to approximate a short circuit and measured the current. The short-circuit current came out to about 2.3 amps. Dividing gave me an Rth of roughly 2.2 ohms. That told me the problem was not the Thevenin equivalent itself, but that the actual load was drawing close to the current limit and the regulator was folding back. The equivalent helped me see that clearly in about five minutes instead of setting up a full transient simulation.
When this method fails you
Nonlinear circuits are the main problem. Diodes, transistors in active mode, Zener regulators, anything with a non-linear V-I characteristic cannot be reduced to a single voltage source and resistance in the strict sense. You can still do a small-signal Thevenin equivalent around an operating point, but that requires knowing the bias point first and linearizing the device equations. If you try to apply the theorem blindly to a circuit with a forward-biased diode and expect a single Rth value that works across all load conditions, it will not work. Time-varying circuits are another issue. If your sources change frequency or amplitude rapidly, the Thevenin equivalent changes with frequency. You end up with a frequency-dependent impedance, which is technically still valid but less convenient. In those cases, you usually need a full AC analysis or Laplace domain approach instead.
Pitfalls that waste your time
The most common mistake is treating the Thevenin resistance as something that stays constant when the original circuit has feedback. In my experience, about forty percent of errors I see on forums come from people forgetting to keep dependent sources active, or from accidentally including the load resistance in their calculation of Rth. Make sure the load is completely removed before you start measuring or calculating anything. Another frequent error is assuming that the power dissipated in the Thevenin equivalent matches the power in the original circuit. It does not, except at the specific operating point you calculated for. The equivalence is only valid for the terminal behavior, not for internal power distribution. If you need to know how much power a resistor inside the circuit is dissipating, you have to go back to the original circuit. People also tend to overuse this method on circuits that are already simple enough for nodal analysis. A two-mesh circuit with three resistors and one source does not benefit from Thevenin reduction. It takes longer to set up the reduction than to just solve the original equations. Use it when the circuit is complex and you need to vary the load multiple times, or when you need a clean representation of what a subsystem delivers to the next stage.
What I actually do in practice
When I need a Thevenin equivalent, I usually start by identifying the terminals of interest. If the circuit is purely resistive with independent sources, I calculate Voc by nodal analysis and find Rth by source transformation or resistance combination. This is the fastest path and takes about two minutes on paper for a moderate-sized circuit. If dependent sources are involved, I switch to the test source method. I write the nodal equations with a one-volt source at the terminals and solve for the current. In SPICE, I can simulate this in seconds by placing a 1V DC source between the two nodes and reading the current. The simulator handles the dependent sources without any extra work on my part. For frequency-domain problems, I work in the s-domain or phasor domain and treat resistors, capacitors, and inductors as impedances. The procedure is identical, but the arithmetic involves complex numbers. I usually let a tool handle the complex calculations rather than doing them by hand unless the numbers are simple enough to warrant it.
Thevenin equivalents are also useful for maximum power transfer calculations. The load receives maximum power when its resistance equals Rth. This is a standard result but it assumes a linear equivalent circuit. I have seen people apply this rule to transistor stages and get completely wrong answers because they forgot that the small-signal model is only valid for small variations around the bias point.
