Where to Find It and What It Actually Covers

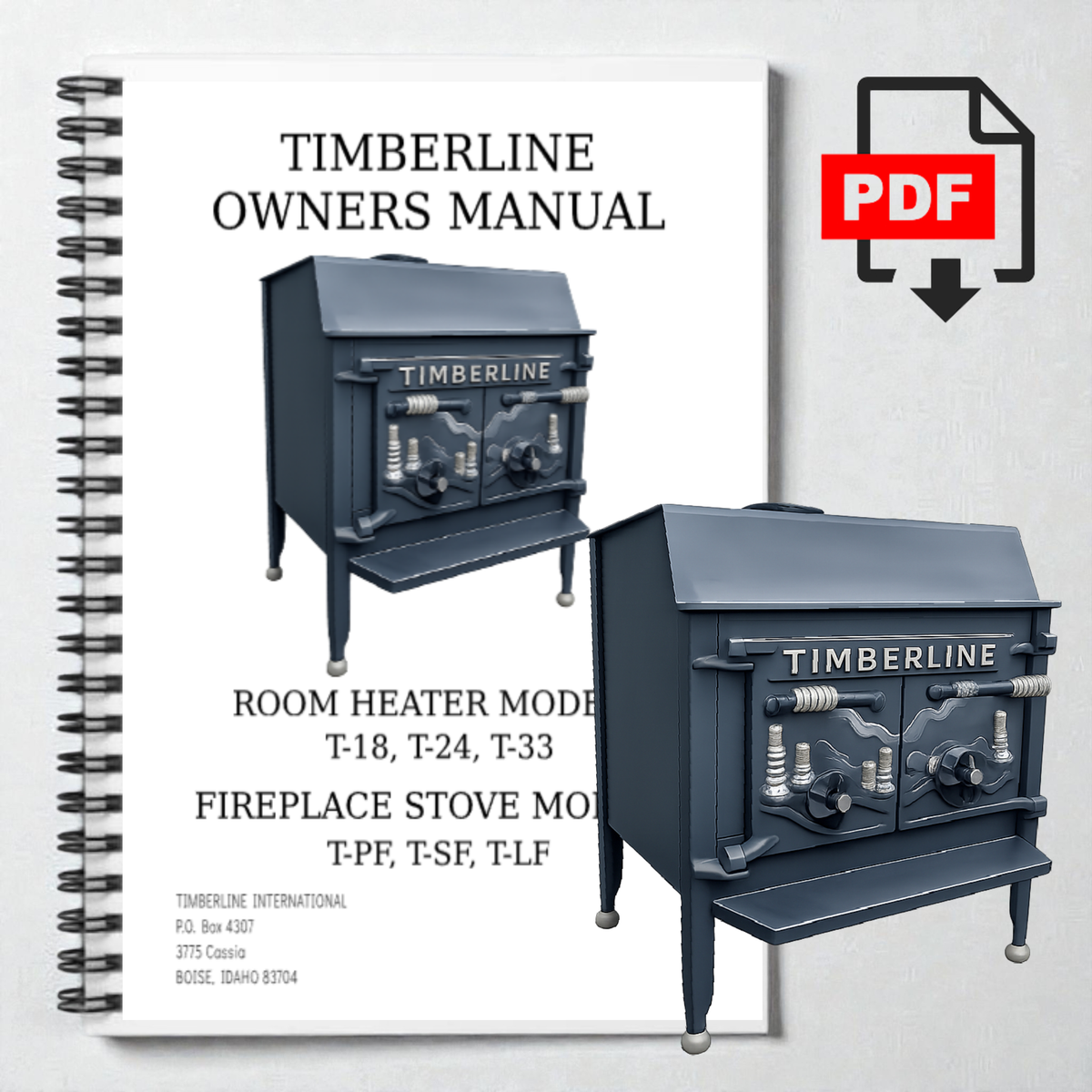

The Timberline Wood Stove Manual is one of those documents you need when something goes wrong at 11 PM and you're standing in your kitchen wondering why the stove won't stay lit. I've spent years dealing with these manuals and the stoves they describe, and most of them are adequate but not great. The Timberline one falls into that camp. It's thorough on installation, solid on safety, and then gets a bit vague on real-world troubleshooting. That's normal for this category of equipment. If you're looking to download it, the most reliable source is the manufacturer's official website. Search for Timberline Wood Stove Manual PDF and you should find a direct download link in the support or resources section. Sometimes the PDF is split into separate documents for different models, so check that the file matches your stove's model number. You'll find it listed on the certification plate, usually on the back or side of the unit. If the manufacturer's site doesn't have it, third-party document repositories exist but I can't guarantee their accuracy. A mismatched manual can lead to incorrect air vent settings or clearance requirements, and that matters more than people think.
Getting Started with Your Timberline Wood Stove Manual
Before you light anything, spend ten minutes reading the air control section. This is where most mistakes happen. The primary and secondary air vents on Timberline stoves aren't labeled intuitively. My stove came with a sticker that basically made a guess about which was which. I eventually figured it out through trial and error and a handful of smoked-out rooms. The key thing nobody tells you about these manuals is that the burn rate charts inside are based on ideal conditions. Dry seasoned hardwood, proper draft, correct chimney height. Your actual setup might not match. I learned this the hard way when my stove would go out after two hours even though the manual said it should burn eight. The issue wasn't the stove. It was my chimney. It was a masonry flue lined with clay tile, and the flue was a fraction too wide for the stove's exhaust output. The draft was weak because the hot gases were expanding into a space that was too large, cooling before they could pull properly. The fix was installing a flue liner insert sized correctly. Once that was in place, the stove ran at half throttle and stayed lit all night. The manual mentions flue sizing in a footnote on page 23, but it doesn't emphasize it enough for people who aren't already familiar with combustion dynamics. Another thing the manual glosses over is the break-in period. New stove gaskets and paint need to cure slowly. If you fire it up hot on day one, you'll be respraying the exterior in six months. The manual tells you to build a small fire for the first three uses, but it doesn't explain what happens if you ignore that. I did it once. The paint peeled in patches and looked like it had been through a war zone. Two coats of high-temperature stove paint later and it looked fine, but it shouldn't have happened.
When you're reading through the manual, pay attention to the clearance requirements. These aren't suggestions. I've seen installers cut corners on combustibles near the sides and backs of these stoves. The manual lists the minimum distances in inches, and they vary by model. Keep a tape measure nearby when you're setting up. The clearance to your wall is going to determine where the stove can actually go in your room, and that affects everything from smoke behavior to how easily you can load wood. If your clearances are tight, you might need to reconsider the placement rather than hoping it'll be fine. The maintenance schedule in the manual is realistic. Annual ash removal, quarterly gasket inspection, and regular chimney cleaning. What they don't stress enough is the gasket check. If your door gasket is compressed or cracked, the stove will run hotter than intended and you'll waste wood while also stressing the firebox. A dollar-per-foot roll of oven-style door gasket and some high-temperature adhesive will solve that problem in twenty minutes. The manual shows you how to replace it but treats it like a low priority. It's not. One more thing worth noting. The manual covers catalytic versus non-catalytic models separately. If you have a catalytic version, that baffle system needs attention every season. The catalyst deteriorates over time and losing efficiency means more creosote buildup and lower heat output. The manual gives you a visual inspection checklist, but it doesn't tell you exactly when replacement is due. In practice, most catalysts last four to six years with normal use. If your smoke output looks heavier than it used to and your burn times have shortened without any change in your wood or draft conditions, it's probably time to order a replacement catalyst. They're available through Timberline's parts department and the swap takes about an hour if you're careful with the baffles.
Get the Full Details
I've found that keeping the manual accessible near the stove itself is useful. Not for reference during normal operation, but for those moments when you need to check a torque spec on a bolt or verify the correct position for a damper during a particular burn phase. Most people throw these manuals in a drawer and never look at them again until something breaks. That's a mistake. A laminated copy or even a printed version in a binder next to the wood stash works fine. The paper original will get dirty and warped if you keep it near the heat source, but the information inside won't change.
