Reading Audio Amplifier Schematics From a User Manual

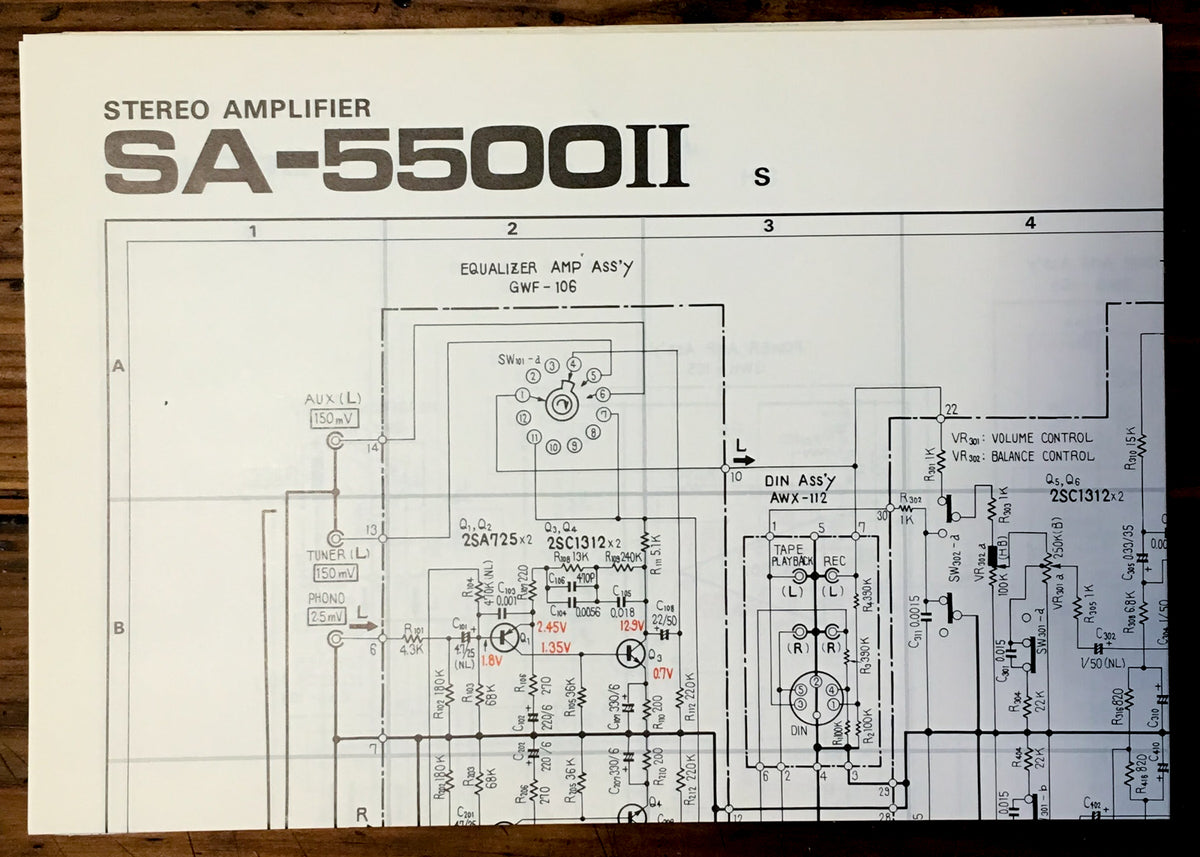

A user manual schematic for an audio amplifier is a simplified circuit diagram included in the product documentation. It shows the basic signal path, component blocks, and how different stages connect. These diagrams exist to help users understand what they bought and occasionally to assist with basic troubleshooting. They are not the same as a full engineering schematic used during production or repair. The typical manual diagram includes a block-level representation first, then transitions into a simplified component schematic. You will see input stages, gain stages, power output stages, and the power supply section. Component values are sometimes listed, sometimes omitted entirely. Designator labels like R1, C2, U3 appear on the diagram but may not map one-to-one to the physical PCB without a parts list. Power supply topology gets rough treatment in manual schematics. A switch-mode supply might be drawn as a simple box labeled "SMPS," while a linear supply gets the full transformer-rectifier-filter treatment. Don't assume the level of detail in the power section reflects reality. It is usually the opposite.
I spent two evenings trying to trace a ground loop issue on a stereo amp by following the manual schematic. The diagram showed clean separate grounds for the preamp and power sections. The actual PCB had a single star ground point that the schematic completely left out. I ended up lifting one ground leg and adding a ferrite bead on the interconnect cable to kill the hum. The manual diagram would not have led me there.
How to Read the Diagram Step by Step

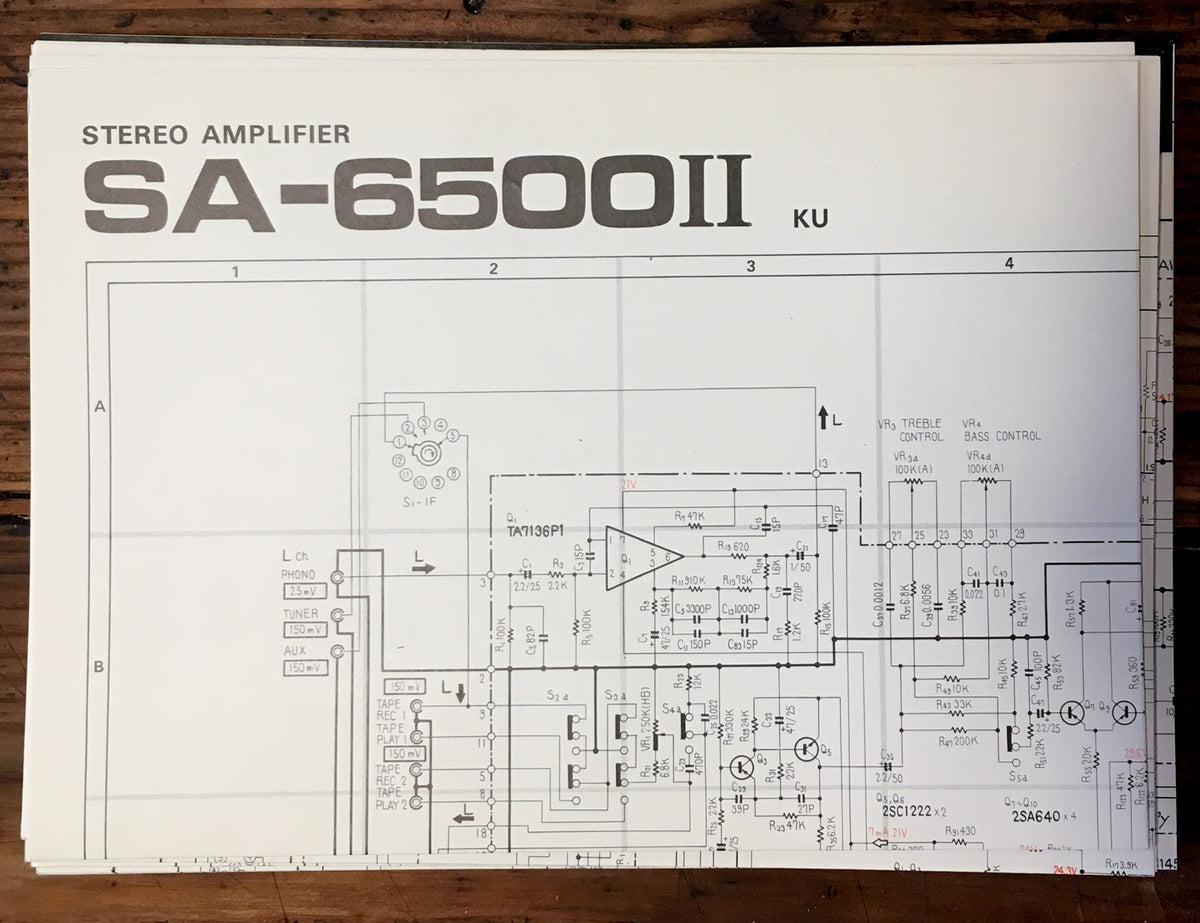

Start at the input jack. Follow the signal path through any tone controls or volume potentiometers. Note whether the diagram shows a single-ended or differential input stage. Many modern amps use an op-amp or discrete differential pair right at the front end. The schematic will show the gain-setting resistors. Those resistor values determine the voltage gain of that stage. Move downstream to the driver stage and then the output stage. This is where manual schematics tend to get vague. Power output transistors are often grouped under a single symbol or shaded block. You might see "Q1-Q4 Power Output" without individual values. If you need exact part numbers, you will not find them in the manual. Check the PCB silkscreen or the manufacturer's service documentation. The feedback network is critical and often misunderstood. Look for the resistor and capacitor connecting the output back to the inverting input of the preamp or error amplifier. That network sets stability and bandwidth. A small change in those values can make an amp oscillate at ultrasonic frequencies. I once swapped a 100pF feedback capacitor for one rated at 220pF on a reproduction build and got thermal runaway in the output transistors within thirty minutes. The schematic showed both values were possible but the manual only listed one.
Get the Full Details
Matching the Schematic to the Physical Board
This is the part nobody explains well. Schematic layouts are organized by function, not by physical position. Components that are far apart on the PCB can be next to each other on the diagram. The only reliable way to connect the two is to identify a few anchor points first. Find the IC with the most pins and most schematic connections. Trace its power and ground pins to the board. Once you have one component anchored, everything else falls into place around it. Use a multimeter in continuity mode to verify connections between schematic nodes and actual pads. This takes about fifteen minutes per major section and saves hours of guessing later. Keep in mind that some manual schematics include optional components for different market variants. A decoupling capacitor shown on the diagram might only be populated on the high-volume PCB version. If you are looking at a bare board and a component is missing, check whether your region's model skips it. The manual usually does not mention this.
When the Manual Schematic Is Not Enough
Consumer-grade amplifiers under two hundred dollars almost never include complete schematics in the manual. You will get a block diagram at best. Mid-range gear usually has a simplified schematic with some component values omitted. Professional and higher-end consumer equipment tends to provide the most complete documentation. If you need full details for repair or modification, request the service manual from the manufacturer. Many companies post these on their support sites. Some third-party sites aggregate them, but the accuracy varies. I cross-reference everything I find online against actual board photos before trusting a value. One counter-intuitive thing about amplifier schematics: the power supply section is often the least accurate part of the diagram. Manufacturers simplify it because explaining a switching regulator in detail would require pages of timing diagrams and control loop analysis. If you are designing around the power section, assume the schematic is a placeholder and measure actual voltages under load. The numbers on paper and on a multimeter will differ, sometimes significantly.
Common Mistakes People Make
Assuming every component shown is populated on every unit. Variant boards are extremely common in this industry. Missing this leads to dead ends when you are searching for a part that "should" be there. Misreading component symbols. A zener diode and a regular diode look similar to someone who has never studied electronics. A P-channel and N-channel MOSFET share the same basic outline with one subtle difference in the arrow direction. Flip one and the circuit stops working. Not checking the revision date. Some manufacturers update schematics mid-production without updating the manual. A capacitor value change from 470uF to 1000uF on the filter stage is a quiet reliability fix that the manual will never mention. The PCB silkscreen revision code is usually the only indicator.
The most practical approach combines the manual schematic as a roadmap with direct board inspection and measured verification. The manual gets you oriented. The board tells you the truth.
