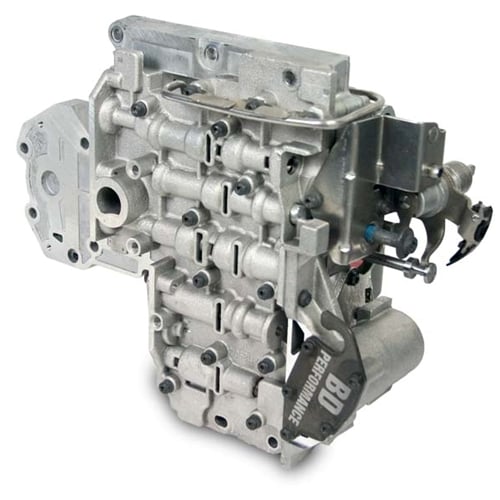

Working on a 47RE Valve Body
The 47RE valve body is one of those things that seems straightforward until you pull it apart and realize how many small passages feed into proper operation. It controls shift timing, line pressure, and torque converter lockup. When it goes bad, the transmission either won't shift at all, slips under load, or shifts so harshly the whole vehicle jumps forward. I've replaced more of these than I care to count, and the majority come back with the same set of issues. The first thing to check is the valve body gasket. The factory design uses a paper-type gasket that sits between the aluminum body and the transmission case. It fails constantly because of heat cycling and fluid breakdown. Once that gasket leaks, you lose line pressure and everything downstream starts acting weird. Shims and spacers underneath the body also get compressed over time, which throws off your clearance specs. This is why you should always measure and record shim placement before you remove anything. The governor bore in the case is another failure point. The governor feeds pressure to the valve body based on vehicle speed. When that bore wears out, you get flaring shifts, especially in second and third gear. You'll see it as RPMs spike and drop repeatedly instead of a clean shift. The fix isn't cheap. You end up needing a sleeve kit for the governor bore, and if you skip it, the problem comes back within another thousand miles.
I had a truck come in last year with exactly this issue. Third gear would engage, then suddenly lose pressure and drop back into second. The shifter would physically pop forward on its own while driving. Everything looked fine on the valve body initially. I removed it anyway, and what I found was a cracked valve body casting near the front cover bolt hole. Pressure was bleeding out internally where you couldn't see it without disassembly. Most people would have rebuilt the valve body and sent it back. I replaced the entire unit instead, and the problem went away completely.
Removal and Disassembly Steps
Start by disconnecting the negative battery terminal. Then remove the transmission pan. You'll see the valve body bolts holding everything down. These are usually M8 or M10 bolts depending on the year. Keep track of which bolts go where. They're different lengths and putting a long bolt in a short hole can damage the passages inside the casting. Unplug the electrical connector from the solenoid pack before removing the bolts. The wiring harness clips are brittle on older units. I've broken more than a few by yanking too hard. Work the connector back and forth gently while pulling. If it's stuck, use a small flathead screwdriver to release the clip tabs, not a pry bar. Pry bars deform the housing. Once the bolts are out, the valve body should drop down. It's connected to the case by the main fluid feed and a couple of passage tubes. Don't force it. If it resists, there's probably a detent ball or a small valve caught in the passage. Shine a flashlight into the gap and look for obstructions. Sometimes a check ball has worked its way loose and is blocking the separation.
Get the Full Details
When you pull it out, immediately cover the exposed case openings with rags. Debris falling into those passages is the fastest way to destroy a rebuilt transmission before it ever leaves the shop. I once spent forty-five minutes chasing a stray bolt through an entire system because someone left the case uncovered during a different repair nearby.
Inspection Points
Check every valve for free movement in its bore. None should stick. Use a magnifying glass on the valve faces. Even minor scoring creates internal leaks that affect shift quality. The accumulator pistons are especially critical. These small pistons control shift damping. When they wear, shifts become either too soft or too harsh depending on which direction the wear goes. Inspect the solenoids with an ohmmeter. The normal resistance range for the shift solenoids is between 2 and 5 ohms. The line pressure solenoid runs a bit higher, around 6 to 12 ohms depending on the model year. Anything outside that range and the solenoid needs replacement. Don't skip this step. I've seen rebuilt units come back with bad solenoids because nobody tested them. The pressure plates and separator plates between the valve sections should lie flat with no warpage. Place one on a known flat surface and try to slide a piece of copy paper underneath. If it catches at any point, the plate is warped. Warped plates cause cross-leaks between pressure circuits. This is more common on high-mileage units that have seen a lot of heat cycles.
Reassembly and Installation
Always use a new gasket. Never reuse the old one even if it looks fine. The paper compresses permanently and won't seal properly the second time. Lubricate the gasket surface with clean transmission fluid before placement. This helps it seat correctly and prevents tearing during installation. Replace all shims in their exact original positions. Document everything with photos before you remove anything. I recommend taking pictures at each stage of disassembly. Six months later when you're trying to remember which shim went where, those photos will save you hours of guesswork. When reinstalling, hand-tighten all bolts first to avoid cross-threading. Then torque them in a sequence from the center outward. The specification is typically 80 inch-pounds. Do not exceed this. Over-torquing distorts the aluminum casting and creates the exact leaks you were trying to prevent.
After Installation
Refill with the correct fluid. The 47RE requires ATF+4. Using the wrong fluid changes shift characteristics entirely and can damage the valve body internals over time. Fill to the proper level and cycle through all gears with the engine running. Check for leaks around the pan and the electrical connections. Take it for a test drive and pay attention to shift quality in all gears. Early 47RE models had a known issue with premature wear in the front pump. If you notice grinding or excessive noise after the valve body work, the pump may be the actual root cause rather than the valve body itself. This mistake costs people time and money because they keep rebuilding the valve body when the real problem is upstream. The valve body is replaceable as a complete unit if you're experiencing multiple failures across several circuits. Remanufactured units are available from several suppliers at varying price points. Some include updated components that address known weak points in the original design. Others are direct replacements with no improvements. Know which version you're getting before you buy it.
